130lb Electric Magnetic Door Lock with Remote Control Kit System

130lb Electric Magnetic Door Lock with Remote Control Kit System



Describe:

• The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the RF receiver which can programed up to 40 transmitters, and it has a range of 160ft.
• The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote once the lock will unlock temporarily to open the door.
• 0/5/10 seconds locking delay time adjustable, default is 5 seconds.
• An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

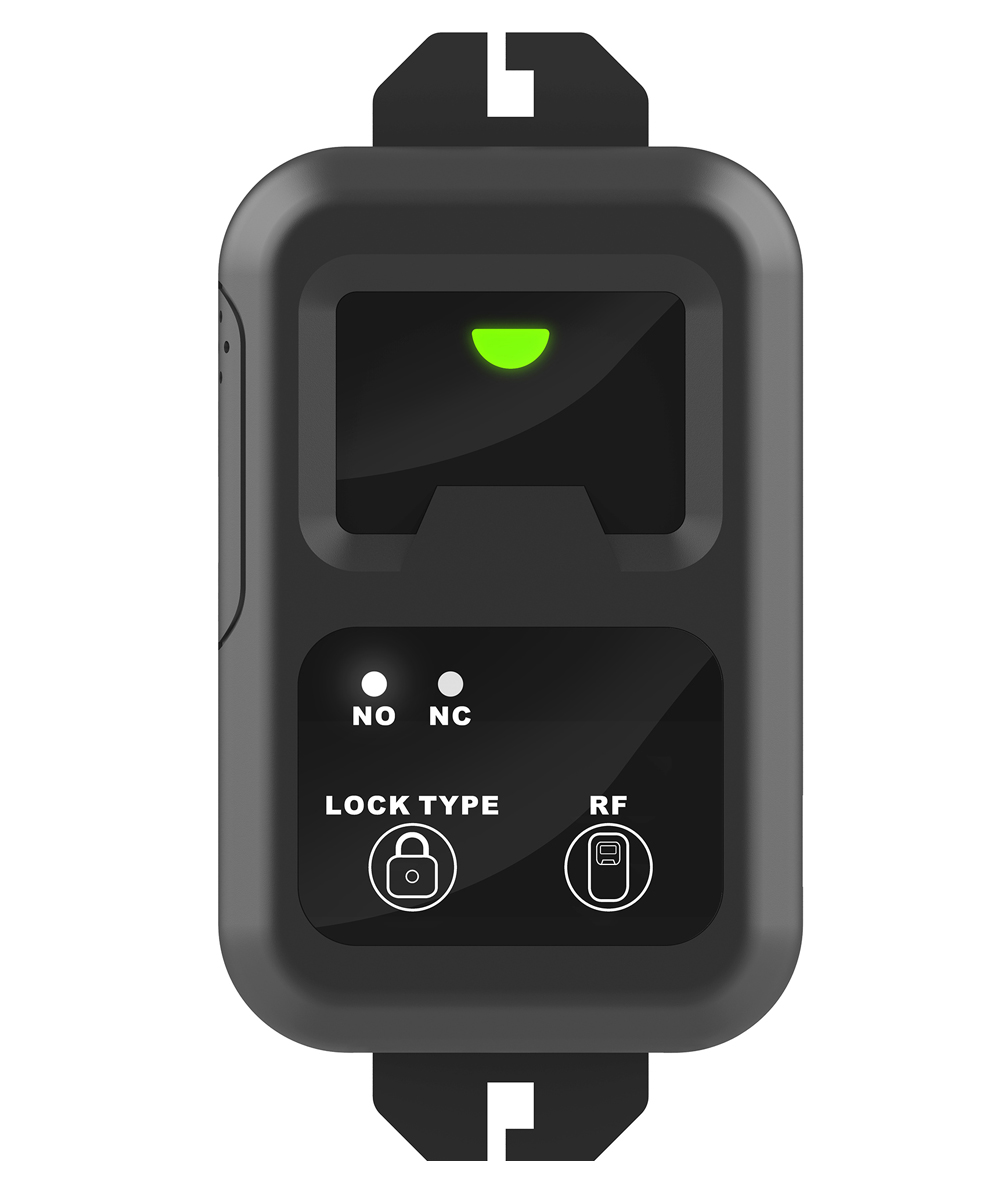

Remote Receiver:

• Voltage: 12VDC
• Frequency: 433MHz
• RF channels: One
• Adjustable Locking Delay: 0/5/10sec
• Transmitters can be paired: 40
• DC Encoding Type: Learning code
• Working Range: 160ft in open aera, 15%-30% in reality
• Working Mode: Momentary/Toggle

Remote Transmitter:

• Working Voltage: 6VDC (Built-in button battery)
• Operating Current: 8mA
• Powered By: 2pcs CR2016/3V batteries (Included)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHZ
• Key: 1 Key
• Case Material: Plastic

Electric Magnetic Lock:

• Operating Mode: NC (locked while supplied with power), fail safe mode
• Holding Force: 60KG/130Lbs
• Voltage: DC12V
• Current: 100mA
• Surface Temp: <20℃ / 68℉
• Operating Temp: -10℃~+55℃(14℉-131℉)
• Humidity: 0~90%(non-condensing)

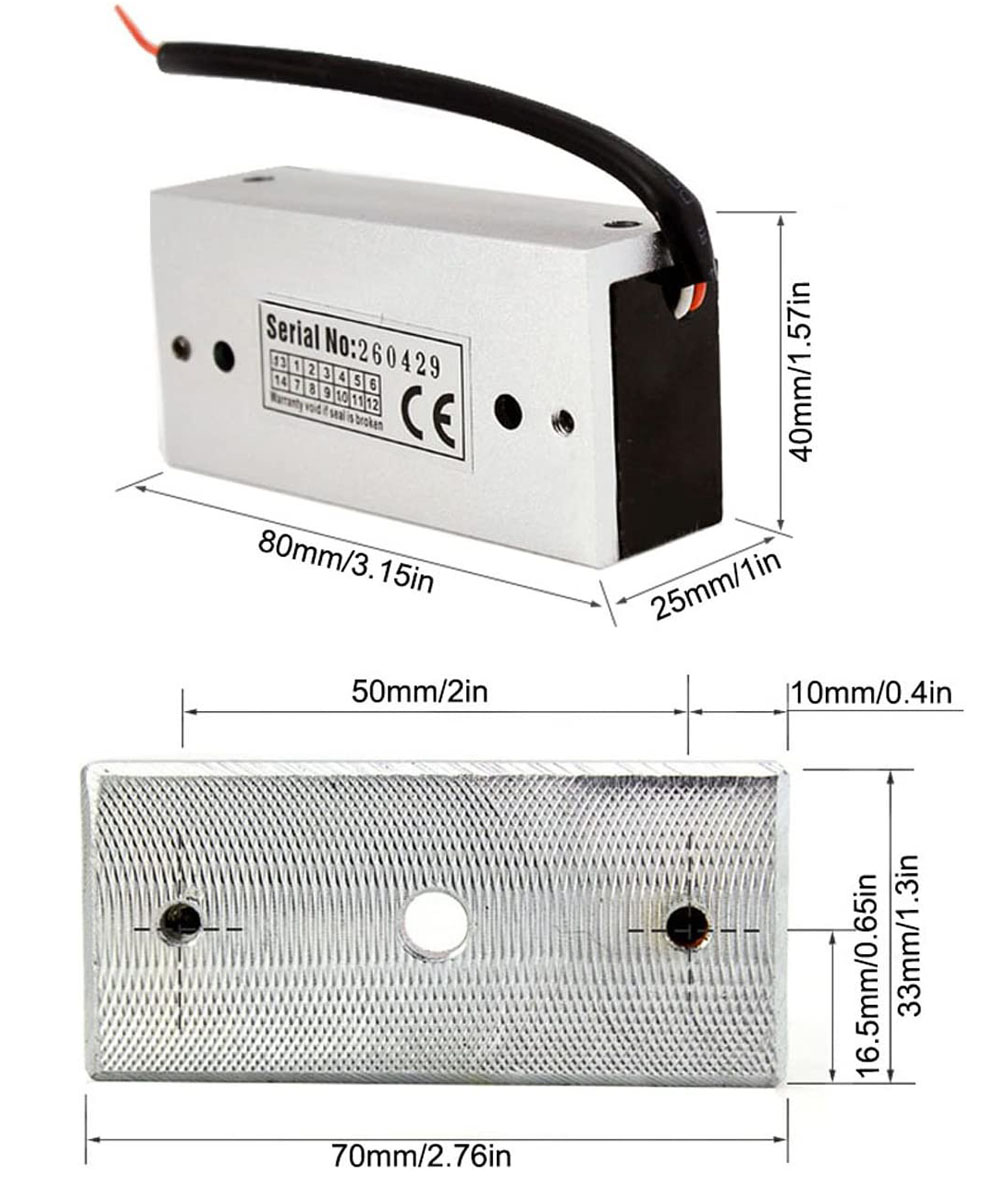

• Electromagnet Dimensions (LxWxH): Approx. 80×36.5×24.1(mm) / 3-5/32″ x 1-7/16″ x 61/64″
• Armature Dimensions (LxWxH): 75x32x10(mm) / 2-61/64″ x 1-17/64″ x 25/64″
• Cover Finish: Anodized aluminum
• Lock Finish: Zinc

Push to Exit Button:

• Dimensions (LxWxH): 90x35x26.5(mm) / 3-35/64″ x 1-3/8″ x 1-3/64″
• Standard Structure: Stainless steel Panel, Steel Button
• Mechanical Life: 500000 tested
• Current Rating: 3A@36VDC Max
• Output Contact: NO/COM
• Operating Temp: 10～+55℃(14-131F)
• Operating Humidity: 0-95% (relative humidity)
• Panel Material: Stainless steel Panel, Wire Drawing Finished
• Suitable for hollow door

Power Adapter:

• Type: 12V 1A Power Supply Wall Charger
• Input: AC100V-240V 50/60Hz
• Max Output: DC12V/1A (1000mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g / 2.3oz
• Certificate: FCC

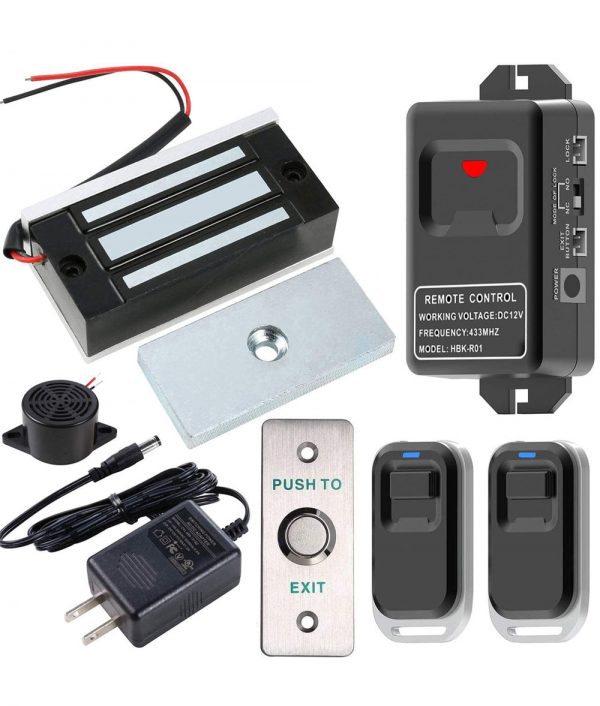

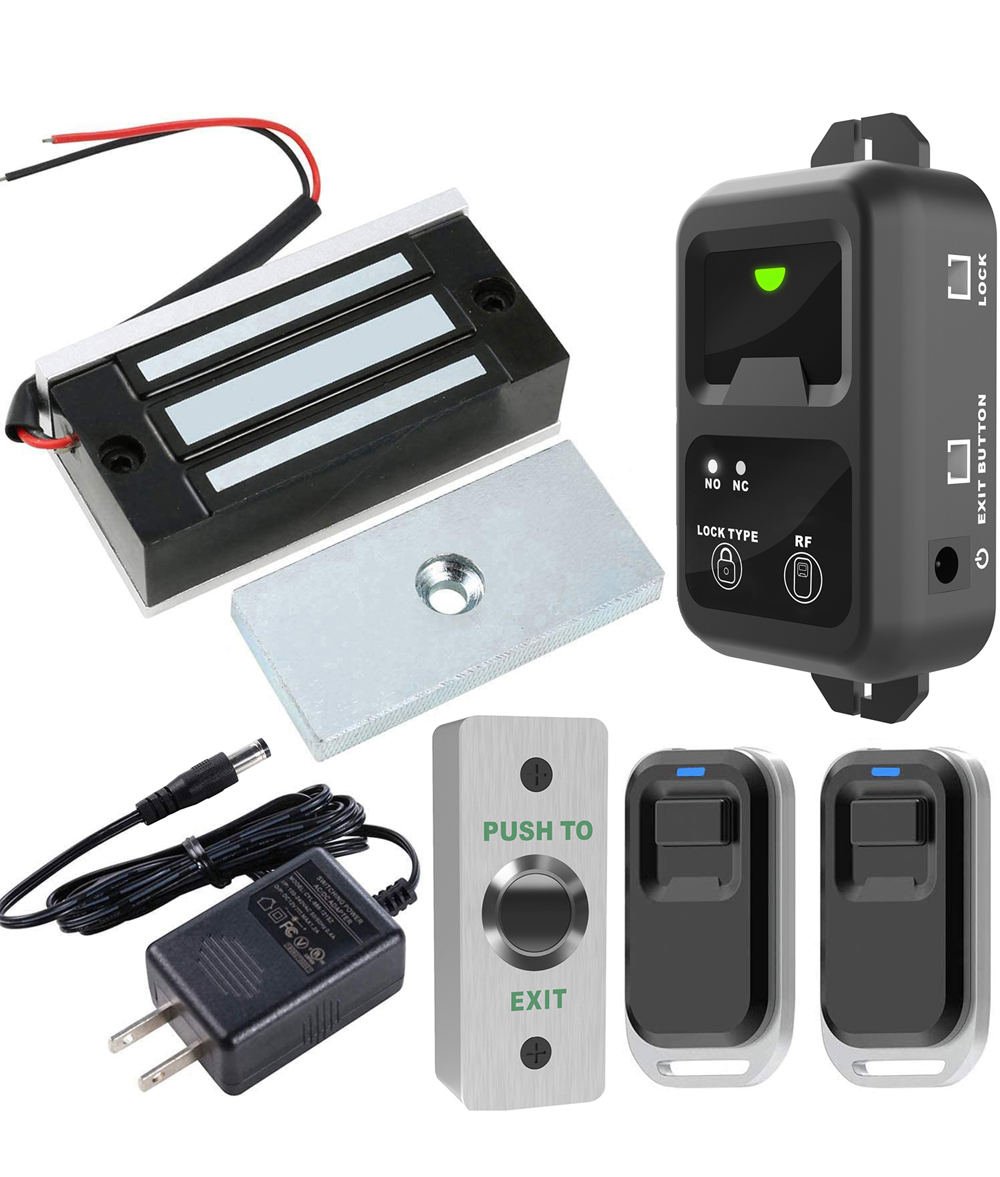

Package:

• 1 x Electric Magnetic Lock
• 1 x Remote Receiver
• 2 x Remote Transmitters
• 1 x Exit Button
• 1 x Power Adapter
• 1 x English Manual
