Access Control Outswinging 600lb Electric Magnetic Door Lock Kit System with Remote Control

Access Control Outswinging 600lb Electric Magnetic Door Lock Kit System with Remote Control



Describe:

• The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 transmitter, and it has a range of 160 feet.
• The function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the mag lock will unlock temporarily to open the door.
• 0/5/10 seconds locking delay time adjustable, default is 5 seconds.
• An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

Remote Control Receiver:

• Voltage: 12VDC
• Frequency: 433MHz
• RF channels: One
• No. of Remotes that are able to connect to one Receiver: Up to 40
• DC Encoding Type: Learning code
• Working Range: 160ft in open aera, 15%-30% in reality
• Adjustable Locking Delay: 0/5/10sec
• Working Mode: Momentary/Toggle

Remote Transmitter:

• Working voltage: 6VDC (Built-in button battery)
• Operating Current: 8mA
• Powerd by: 2pcs CR2016/3V batteries (Included)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHZ
• Key: 1 Key
• Case material: Plastic

Electric Magnetic Lock:

• Collinear Load Test 280kg / 600pounds
• Output Contact: NO/NC/COM
• LED: Red shows locked; Green shows unlocked
• Input Voltage: 12VDC
• Current: 520mA
• Holding: 280kg/600Lbs
• Fail Safe mode: Unlocked while power is removed
• Lock Size: 250×48.8×27.9(mm) / 9.84×1.92×1.10(inch)
• Armature Plate Dimension: 180×38.8×13(mm) / 7.09×1.53×0.51(inch)

Push to Exit Button:

• Dimensions: 90Lx35Wx26.5H(mm) / 3.54Lx1.38Wx1.04H(inch)
• Standard Structure: Stainless steel Panel, Steel Button
• Mechanical Life: 500000 tested
• Current Rating: 3A@36VDC Max
• Output Contact: NO/COM
• Operating Temp: 10～+55℃(14-131F)
• Operating Humidity: 0-95% (relative humidity)
• Panel Material: Stainless steel Panel, Wire Drawing Finished
• Suitable for hollow door

Power Adapter:

• Type: 12V 1A Power Supply Wall Charger
• Input: AC100V-240V 50/60Hz
• Max Output: DC12V / 1A (1000mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g / 2.3oz
• Certificate: FCC

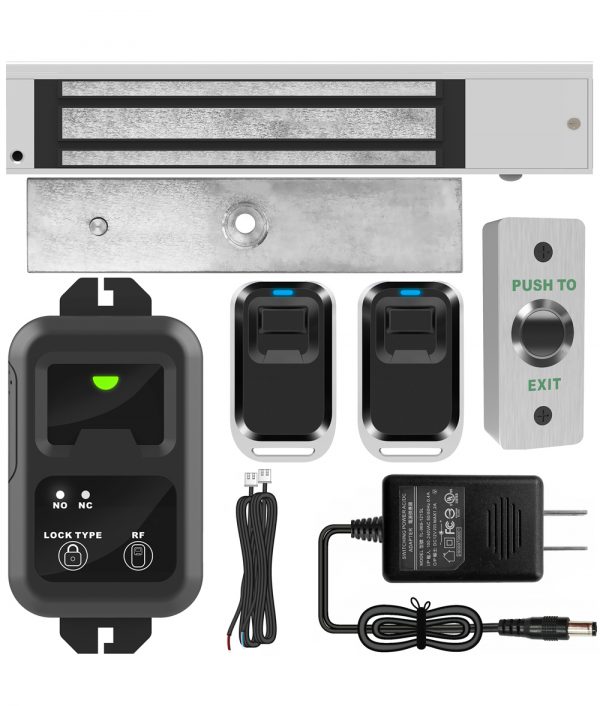

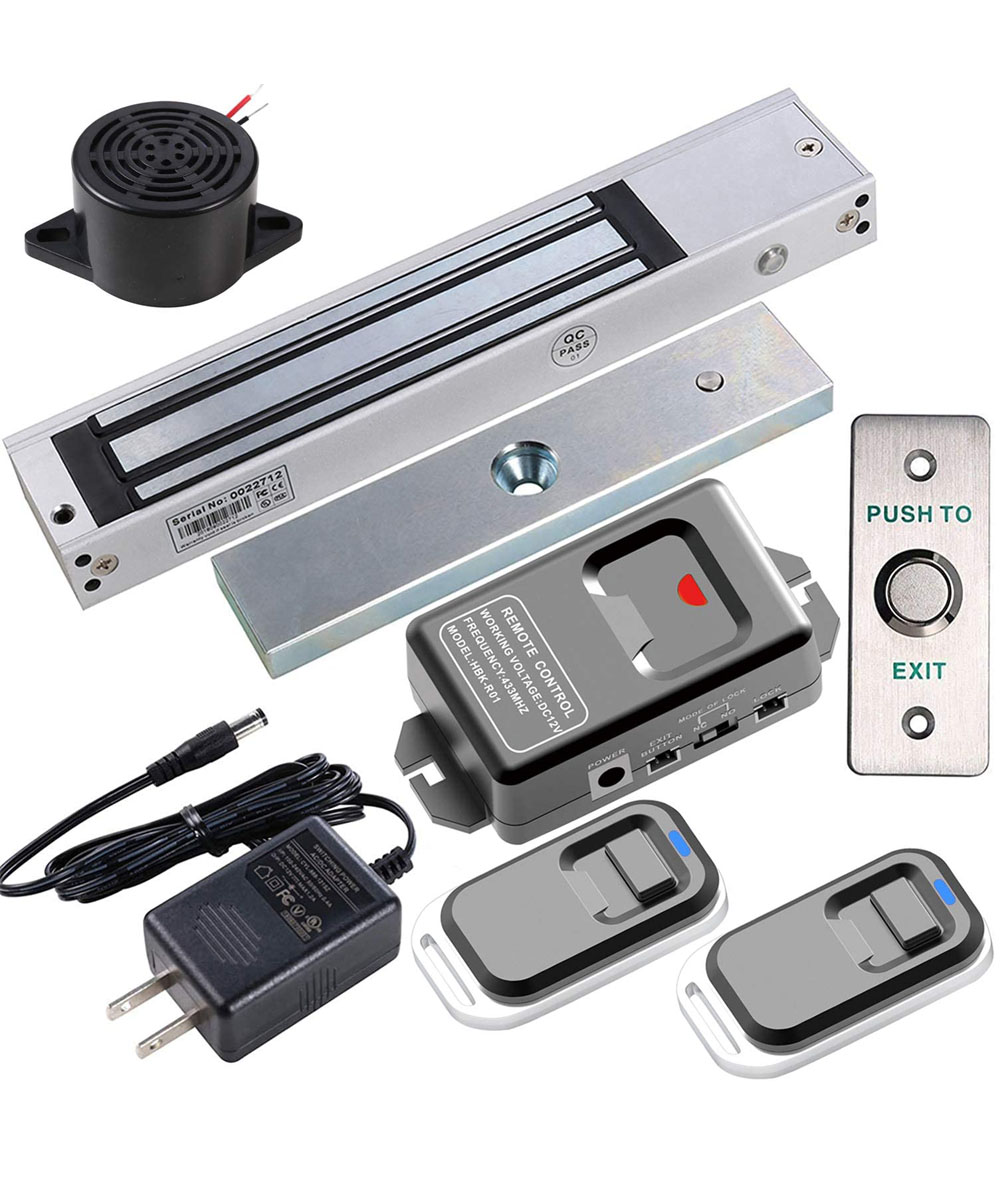

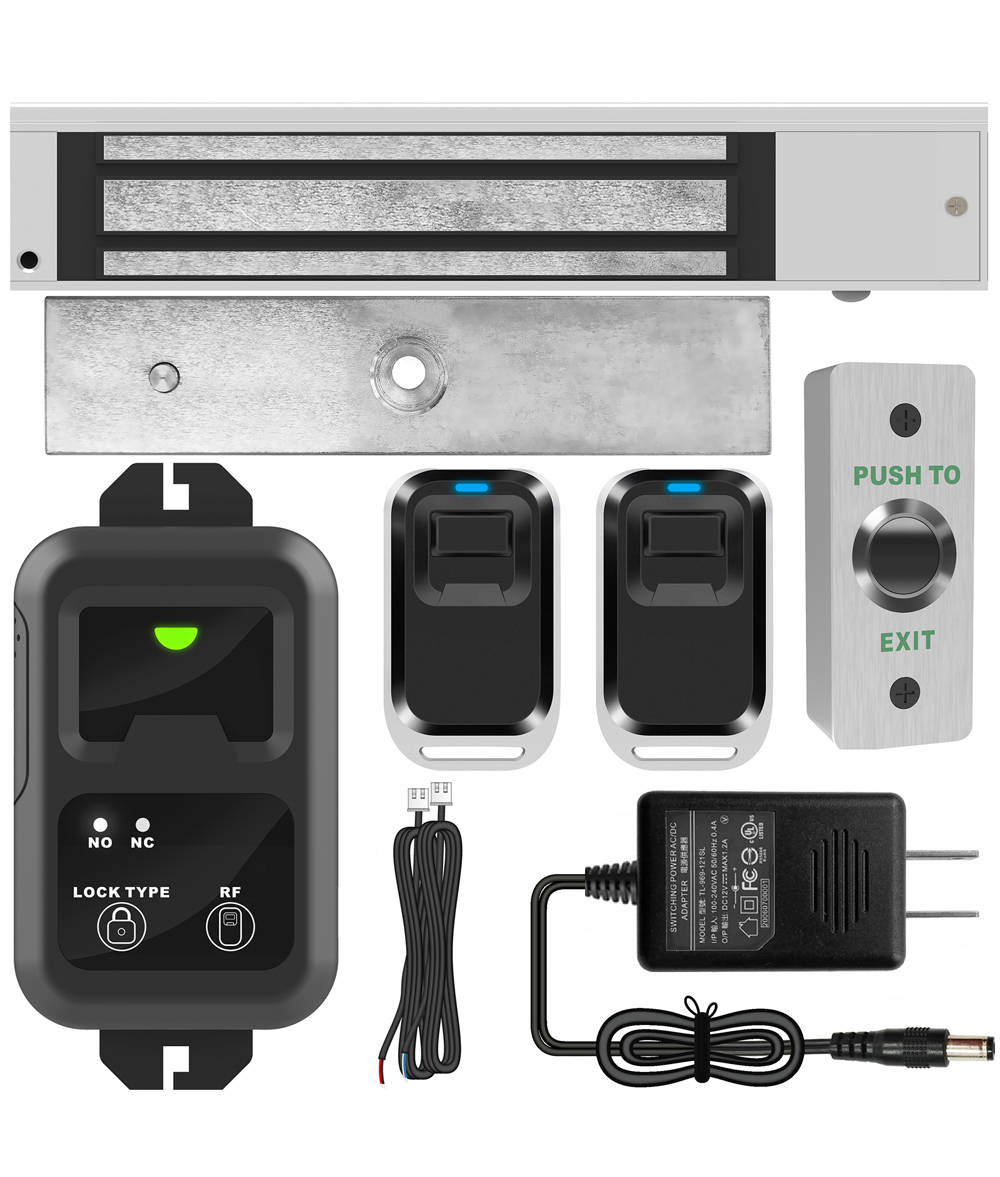

Package:

• 1 x Electric Magnetic Lock
• 1 x Remote Receiver
• 2 x Remote Transmitters
• 1 x Push to Exit Button
• 1 x Power Adapter
• 1 x English Manual
