Outdoor Gate Electric Magnetic Lock Door Access Control System Kit with Remote Control

Outdoor Gate Electric Magnetic Lock Door Access Control System Kit with Remote Control



Describe:

• It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the RF remote. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164 feet.
• The function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the mag lock will unlock temporarily to open the door.
• 0/5/10 seconds locking delay time adjustable, default is 5 seconds.
• An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.
• There are two main features on the remote that will allow you to operate it in two different ways. The default function of the remote is momentary that when the power is on, the lock is locked and when you press the button on transmitter the lock will unlocked temporarily to open the door. The other function is toggle that the remote has is the ON/OFF feature. This feature is very similar to a light switch; when you press the transmitter once and the door will unlock and remain unlocked until you press the transmitter again. When you press the remote again, the door will then locked.

Remote Control Receiver:

• Voltage: 12VDC
• Frequency: 433MHz
• RF channels: One
• No. of Remotes that are able to connect to one Receiver: Up to 40
• DC Encoding Type: Learning code
• Working Range: 160ft in open aera, 15%-30% in reality
• Adjustable Locking Delay: 0/5/10sec
• Working Mode: Momentary/Toggle

Remote Transmitter:

• Working voltage: 6VDC (Built-in button battery)
• Operating Current: 8mA
• Powerd by: 2pcs CR2016/3V batteries (Included)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHZ
• Key: 1 Key
• Case material: Plastic

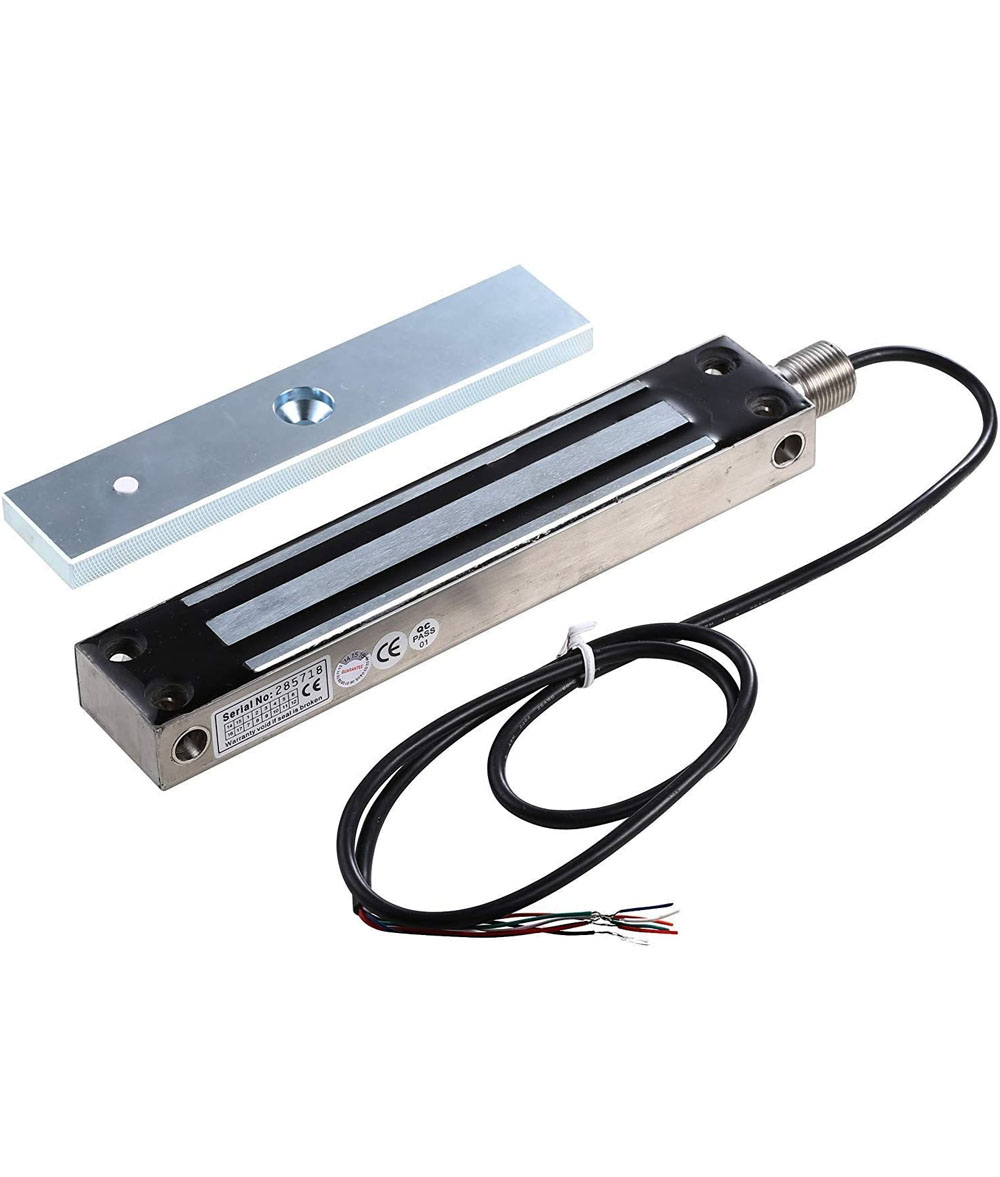

Electric Magnetic Lock:

• Input Voltage: 12VDC
• Current: 520mA
• Holding: 280kg/600lb
• Fail Safe Mode: Unlocked while power is removed
• Lock Body Size (LxWxH): 220x42x25.5(mm) / 8-21/32″ x 1-21/32″ x 1″
• Armature Plate Dimension (LxWxH): 180×38.8×13(mm) / 7-3/32″ x 1-17/32″ x 33/64″
• Special waterproof, indoor and outdoor can be installed
• Operating Temp: -10℃~+55℃(14℉~131℉)
• Waterproof Level: IP-68
• Weight: 2kg / 4.4lb

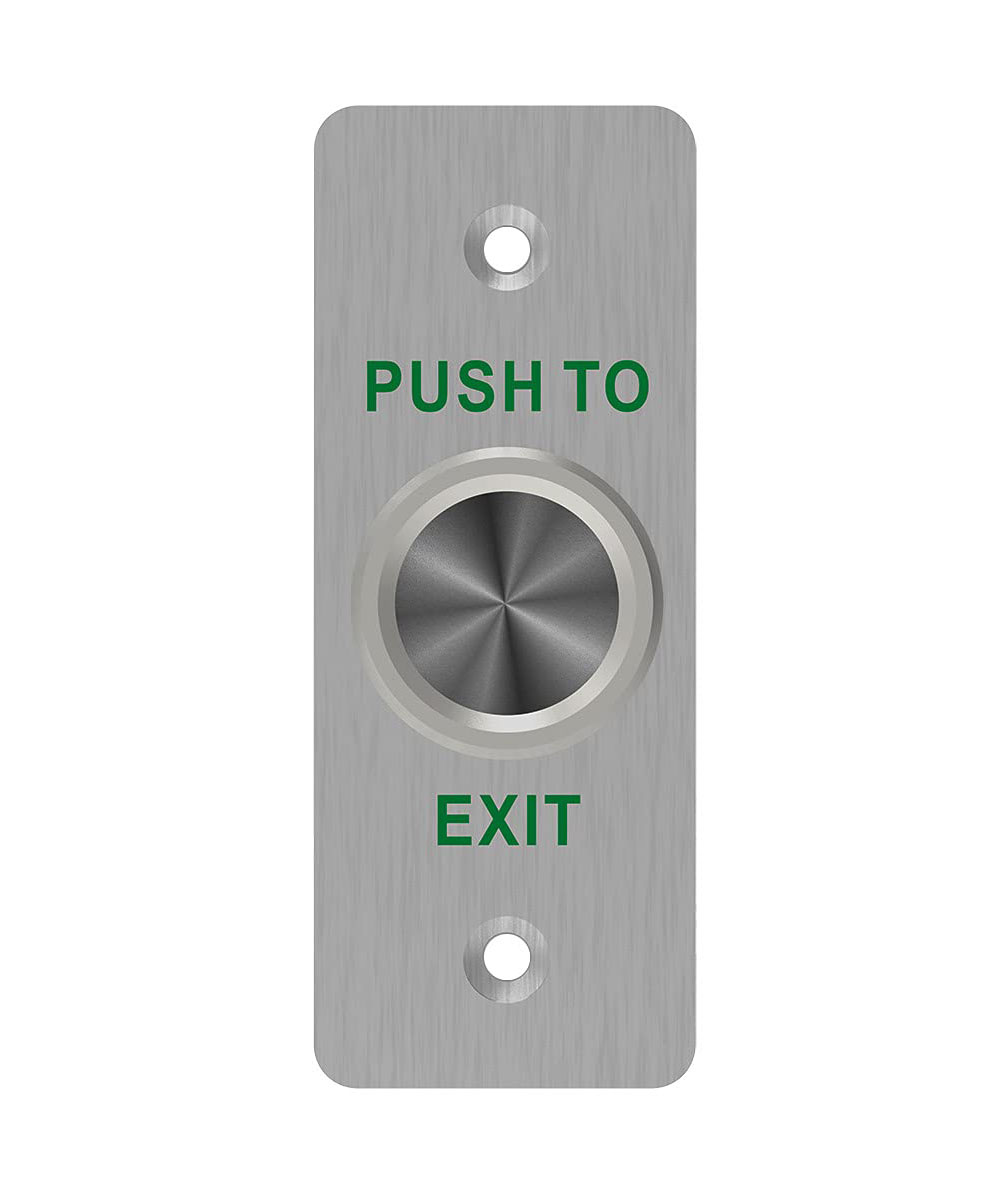

Push to Exit Button:

• Dimensions (LxWxH): 90x35x20(mm) / 3-35/64″ x 3-3/8″ x 25/32″
• Contact Area: <100ohm
• Material of Panel: SUS304 Stainless Steel
• Operating Temperature: -20℃~+50℃ / -4℉~122℉
• Wire color: White: NO/COM
• Current Standby: 20mA
• Output Contact: NO/COM
• Current Rating: 1A@12VDC(Max.)
• Waterproof Level: IP-68
• Weight: 70g

Power Adapter:

• Type: 12V 1A Power Supply Wall Charger
• Input: AC100V-240V 50/60Hz
• Max Output: DC12V / 1A (1000mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g / 2.3oz
• Certificate: FCC

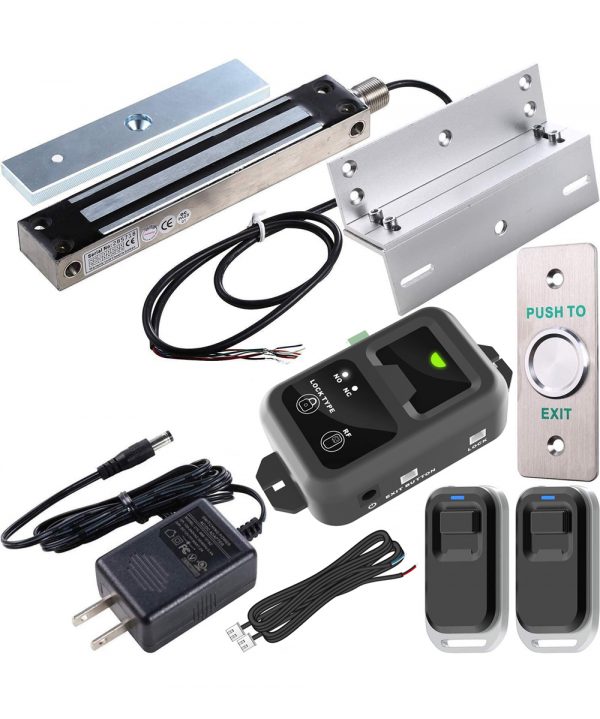

Package:

• 1 x Electric Magnetic Lock
• 1 x Bracket
• 1 x Remote Receiver
• 2 x Remote Transmitters
• 1 x Exit Button
• 1 x Power Adapter
• 1 x English Manual
