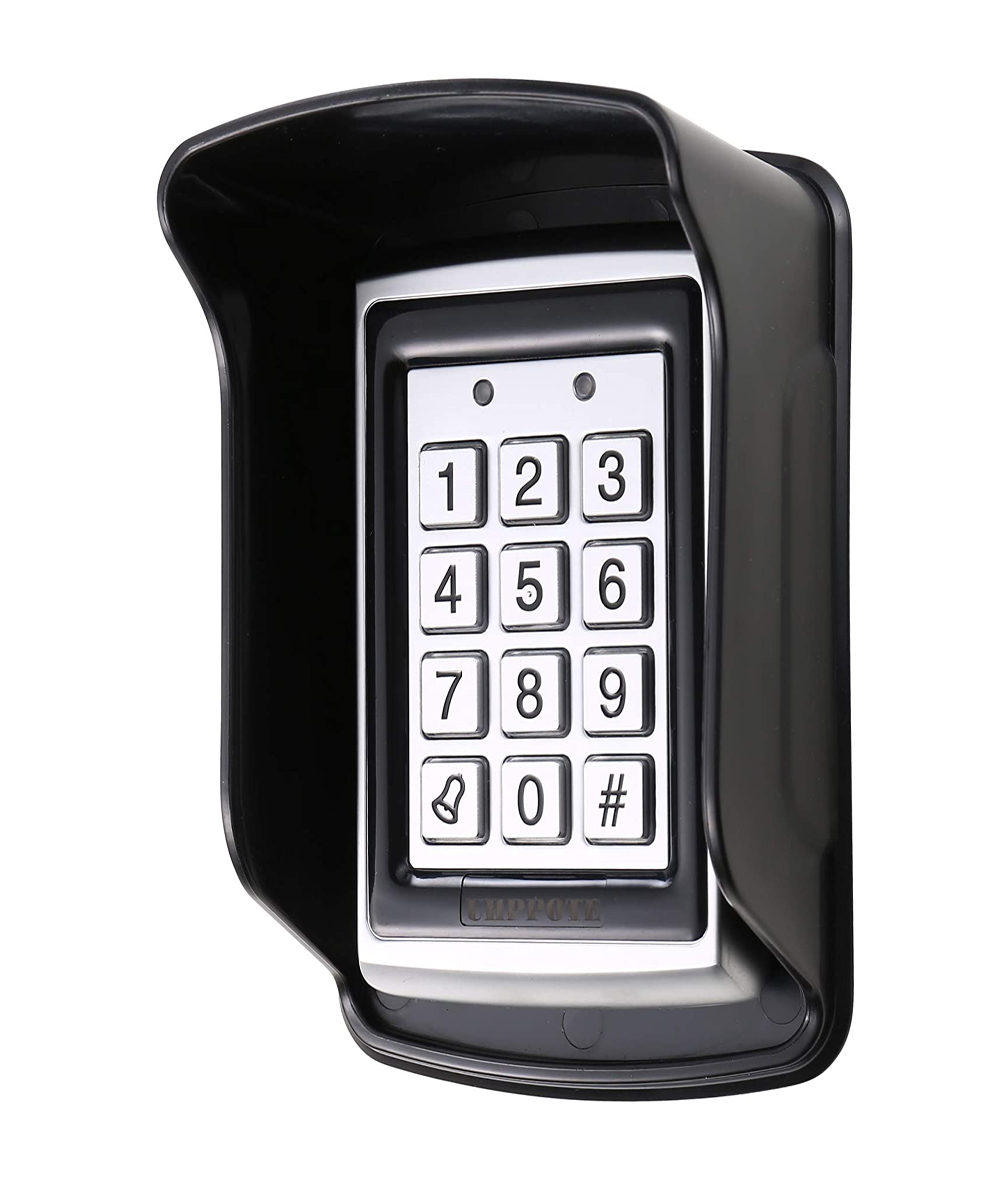

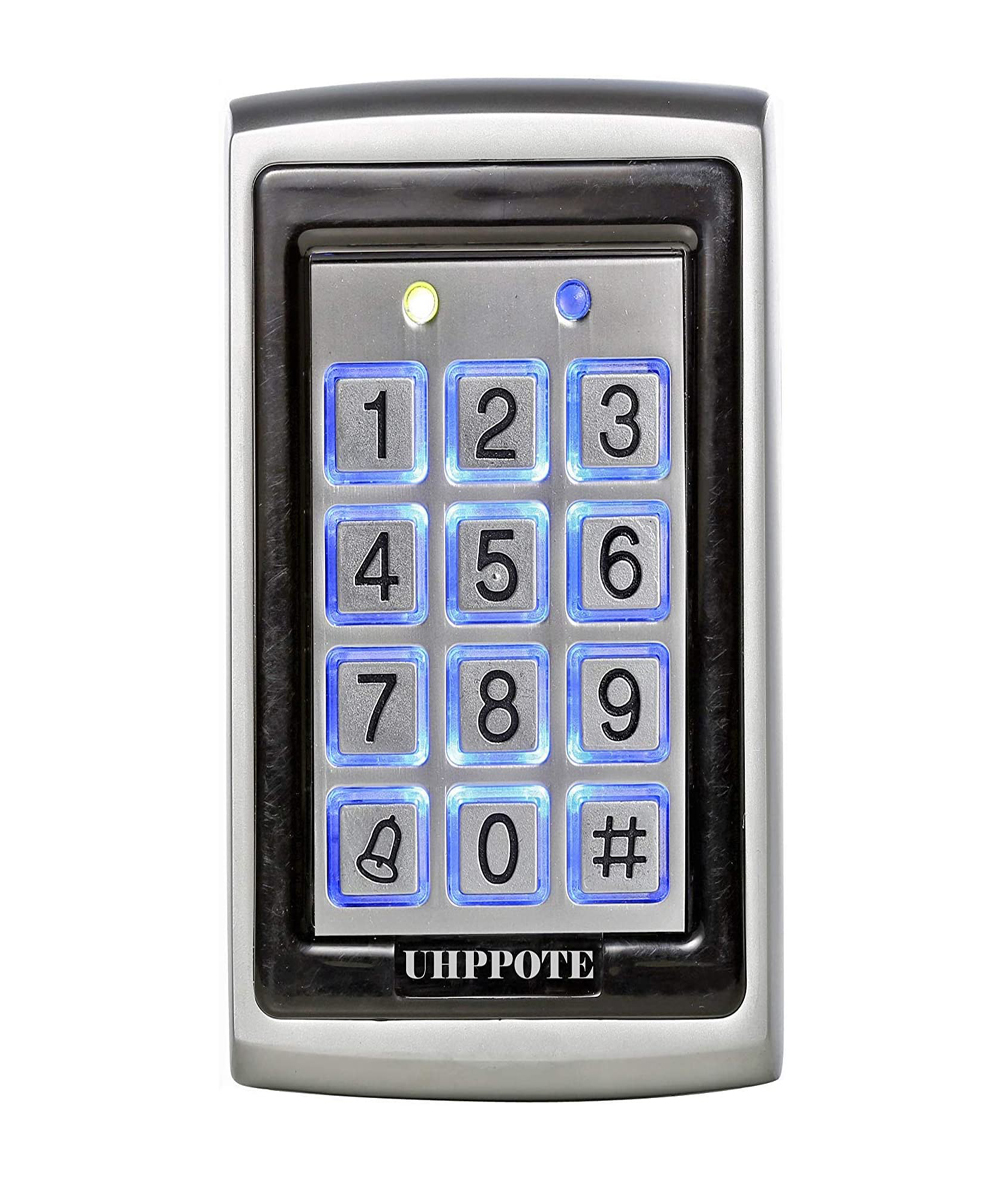

Access Control Keypad 125khz RFID Door Entry Controller with Waterproof Cover

Access Control Keypad 125khz RFID Door Entry Controller with Waterproof Cover

Features:

• This is a vandal resistant proximity card and keypad access control unit, suitable for external applications. It accepts up to 500 users and provides entry via the use of proximity cards and/or PIN codes
• Support entry modes: Password Only / ID Card Only / Password + ID Card
• With lock relay output, secure / normal Mode, NO / NC output
• Built-in keypad for 4-digits PIN code entry
• Waterproof,professional cover for Access Control Keypad

Specificatins:

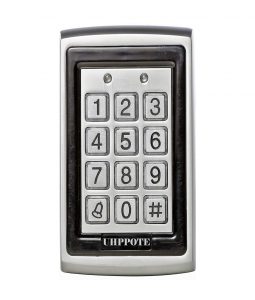

Access Control Keypad:

• Metallic case for better protection. Non-waterproof
• Support 500 standard users
• Support entry modes: Password Only / ID Card Only / Password + ID Card
• Can add card number and delete card number as your requirement
• Classical appearance with useful function
• Alarm function
• With lock relay output, secure / normal Mode, NO / NC output
• Built-in bell button can connect a external bell
• Built-in proximity card reader (125KHZ ASK modulation)
• Built-in keypad for 4-digits PIN code entry
• Sensitively and response quickly
• Auxiliary input & auxiliary output
• 8 Auxiliary Modes including: door ajar, forced door, shunt, door monitor, normal / secure
• Internal buzzer
• 2 status/programming interface LED’S
• 3 user levers: normal user, secure user, master user
• Code search feature that helps make maintaining user codes easier
• Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies
• Programmable siren time
• Programmable lock strike release time

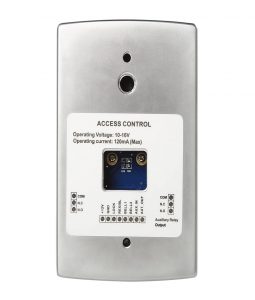

• Input Voltage: DC12V
• Frequency: 125kHz
• Compatible Cards: All 26-bit EM cards (Can’t support some encrypted cards,such as HID, Cobra, APCiK etc)
• Operation Temperature: -31℃ ~ 63℃ / -23.8℉~145.4℉
• Net Weight: Approx. 410g / 0.9lbs

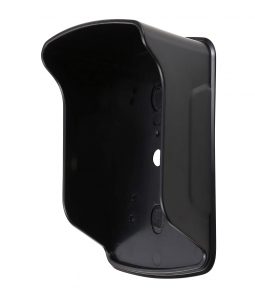

Waterproof Cover:

• Plastic cover,can keep the device from rain,sunshine etc

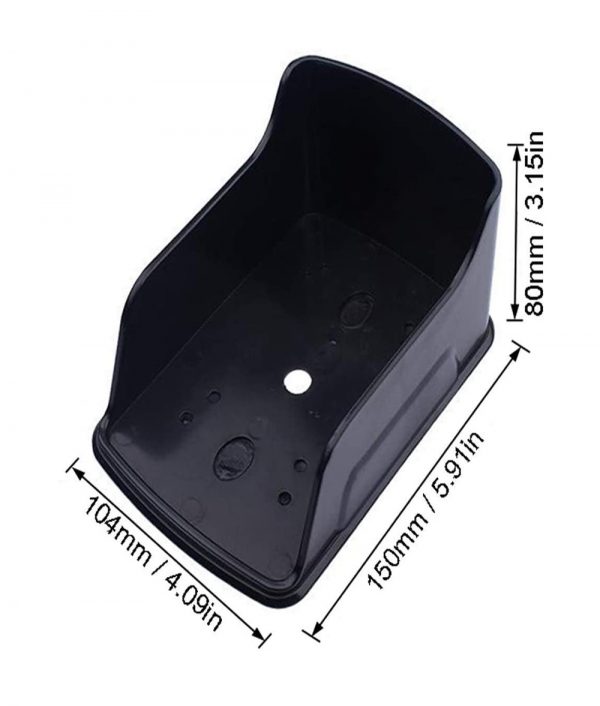

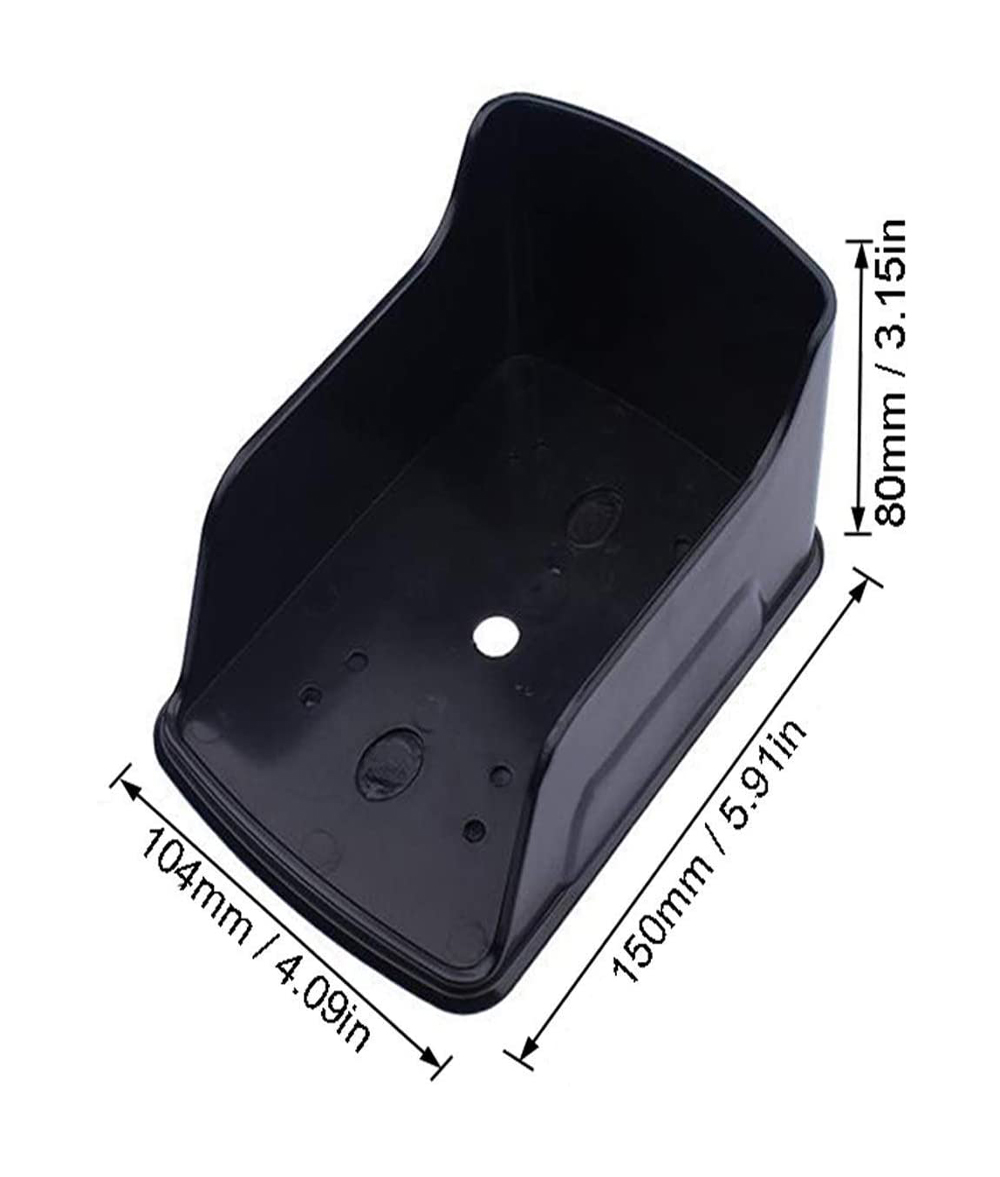

• Outside Demension(L*W*T): 150*104*80mm / 5.91*4.09*3.15in
• Inside Demension(L*W*T): 135*90*85mm / 5.31*3.54*3.35in
• Waterproof,professional cover for Access Control System Component

Package:

• 1 x Metal Door Access Control
• 1 x Waterproof Cover
• 1 x User Manual
