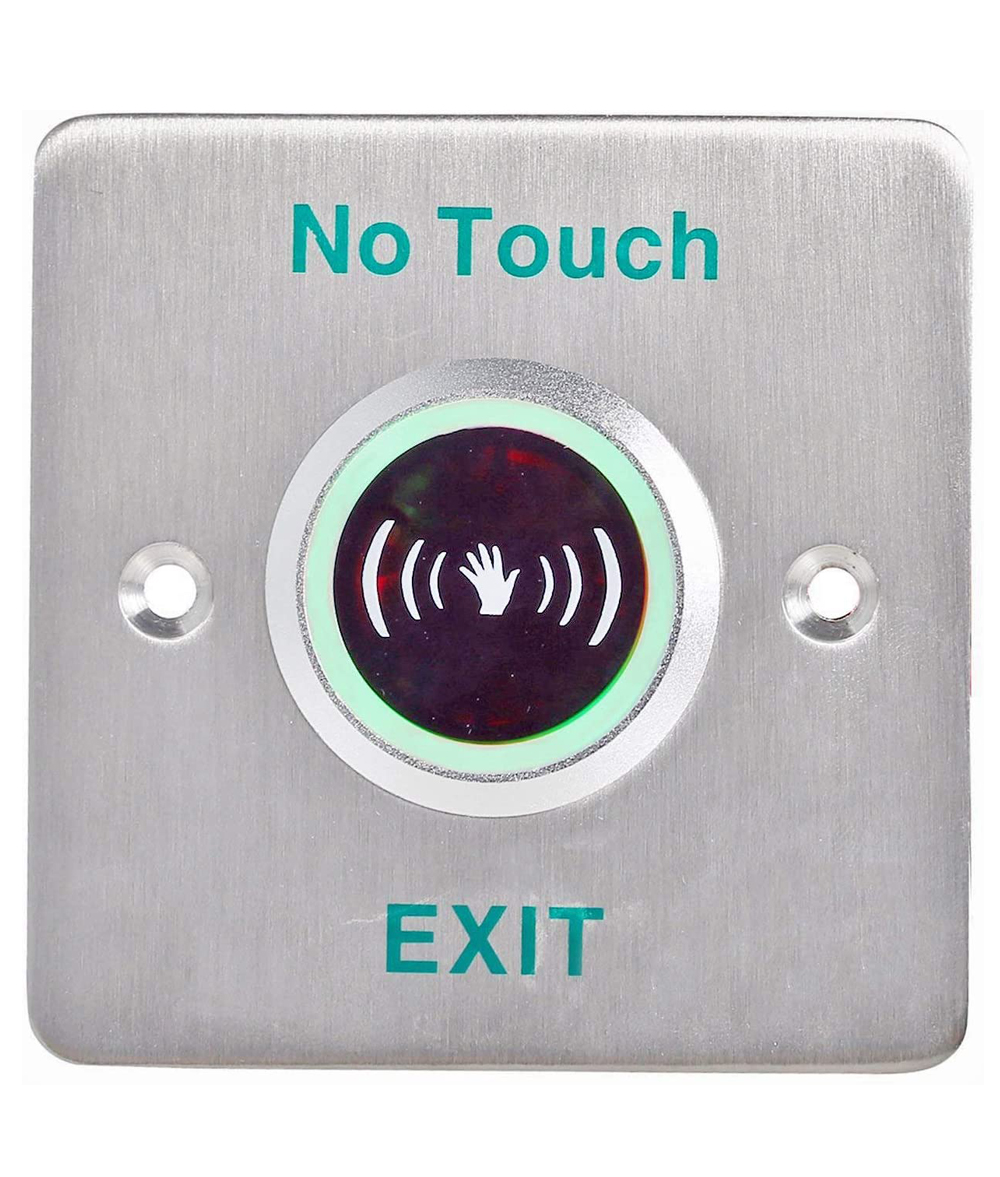

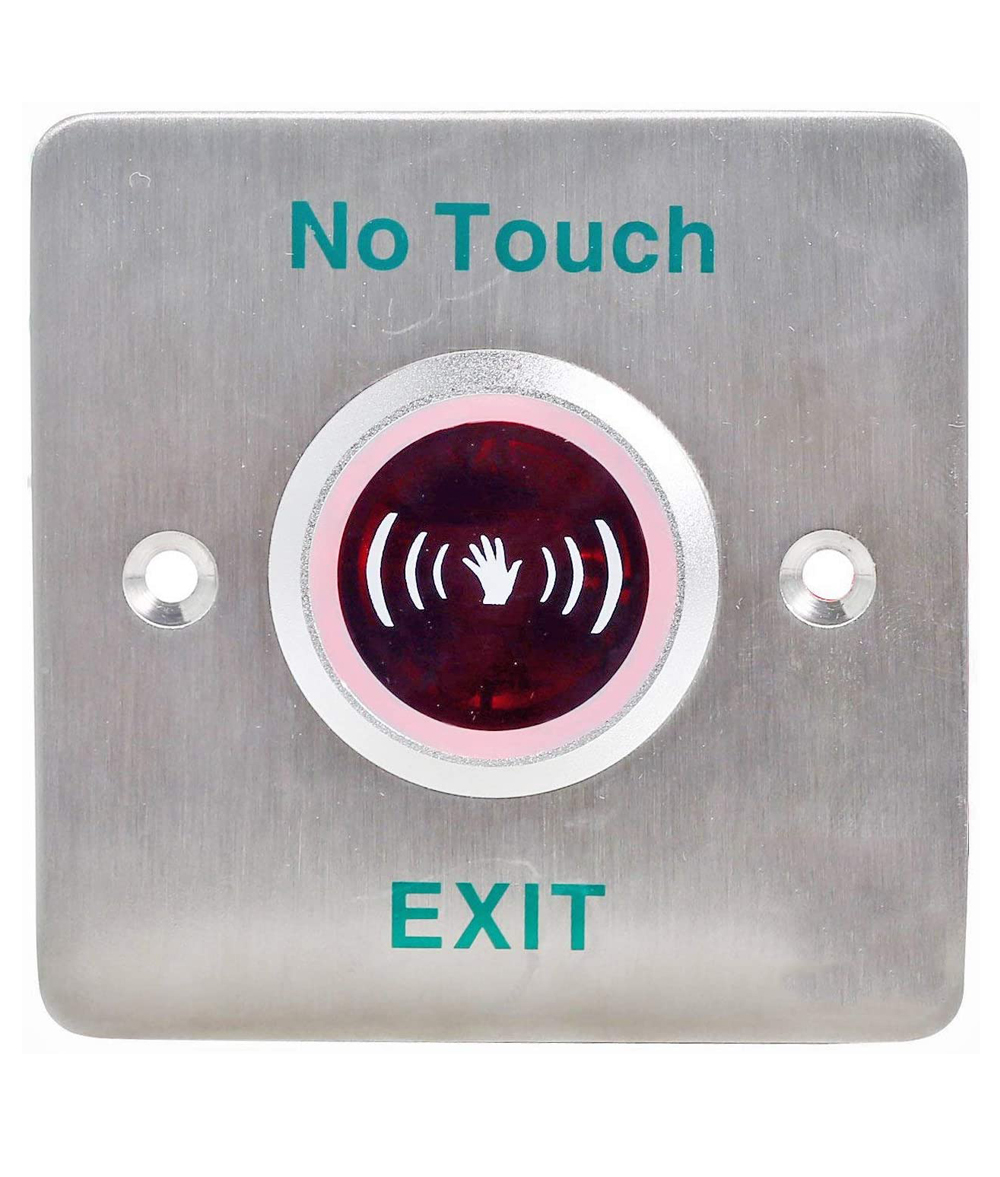

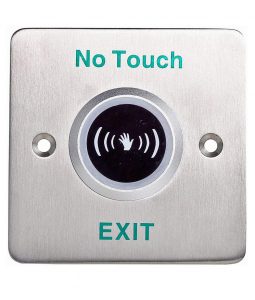

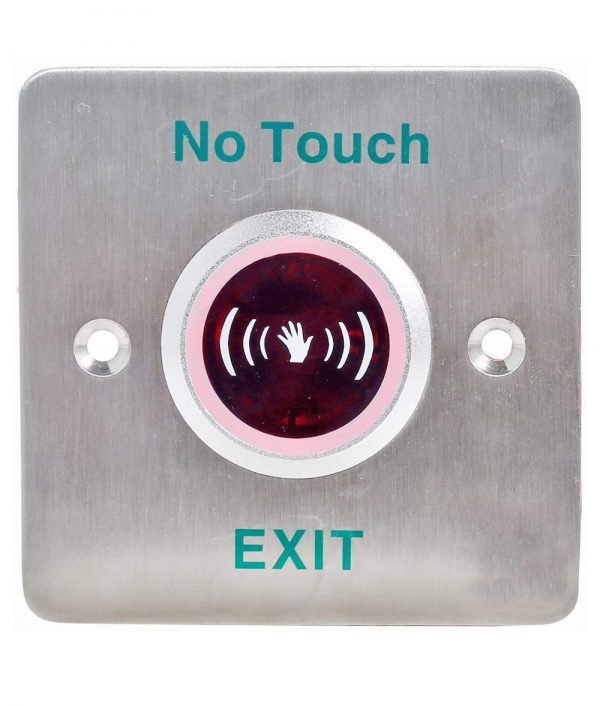

No Touch Infrared Sensor Exit Button Door Release Buttons Switch NO/NC/COM

No Touch Infrared Sensor Exit Button Door Release Buttons Switch NO/NC/COM

Features:

• Design without Mechanical Bolt
• Stainless steel Panel with Elegant Style
• Three Contact Output,Suitable for all kinds of locks
• Tested to 1,000,000 Cycles
• The Best Choice of Access Control

Specifications:

• Dimensions: 86Lx86Wx25.7H(mm) / 3.39Lx3.39Wx1.01H(in)
• Input: DC12V
• Contact Rating: 1A@30VDC, 0.5A@125VAC
• Output Contact: NO/NC/COM
• Mechanical Life: 1,000,000 tested
• Suitable for Door: Hollow Door
• Operating temp: -20℃~+55℃(-4℉-131℉), Suitable Humidity: 0-95% (relative humidity)
• Detection range: 4-10cm(Adjustable)
• Time delay: 0.5~25s(Adjustable)
• White LED indicator: Power OFF, Red LED indicator: Power ON(Standby), Green LED indicator: Power ON(Sensation)
• Weight: 0.12kg / 0.26lb

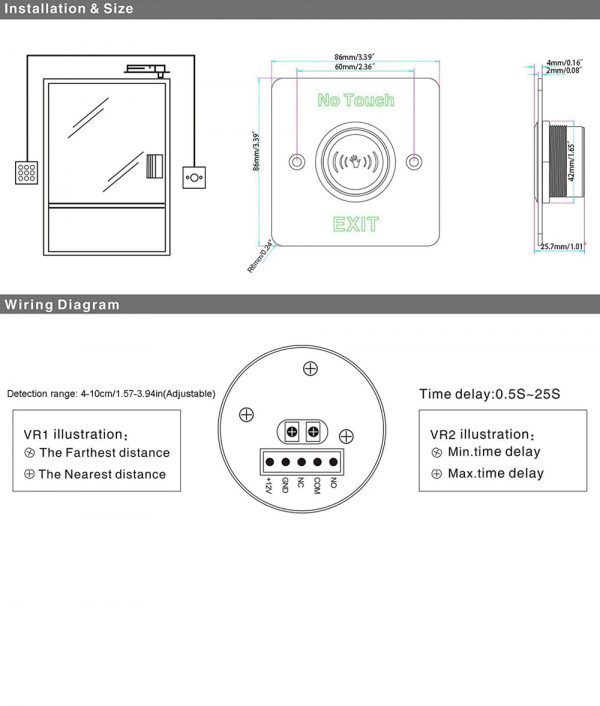

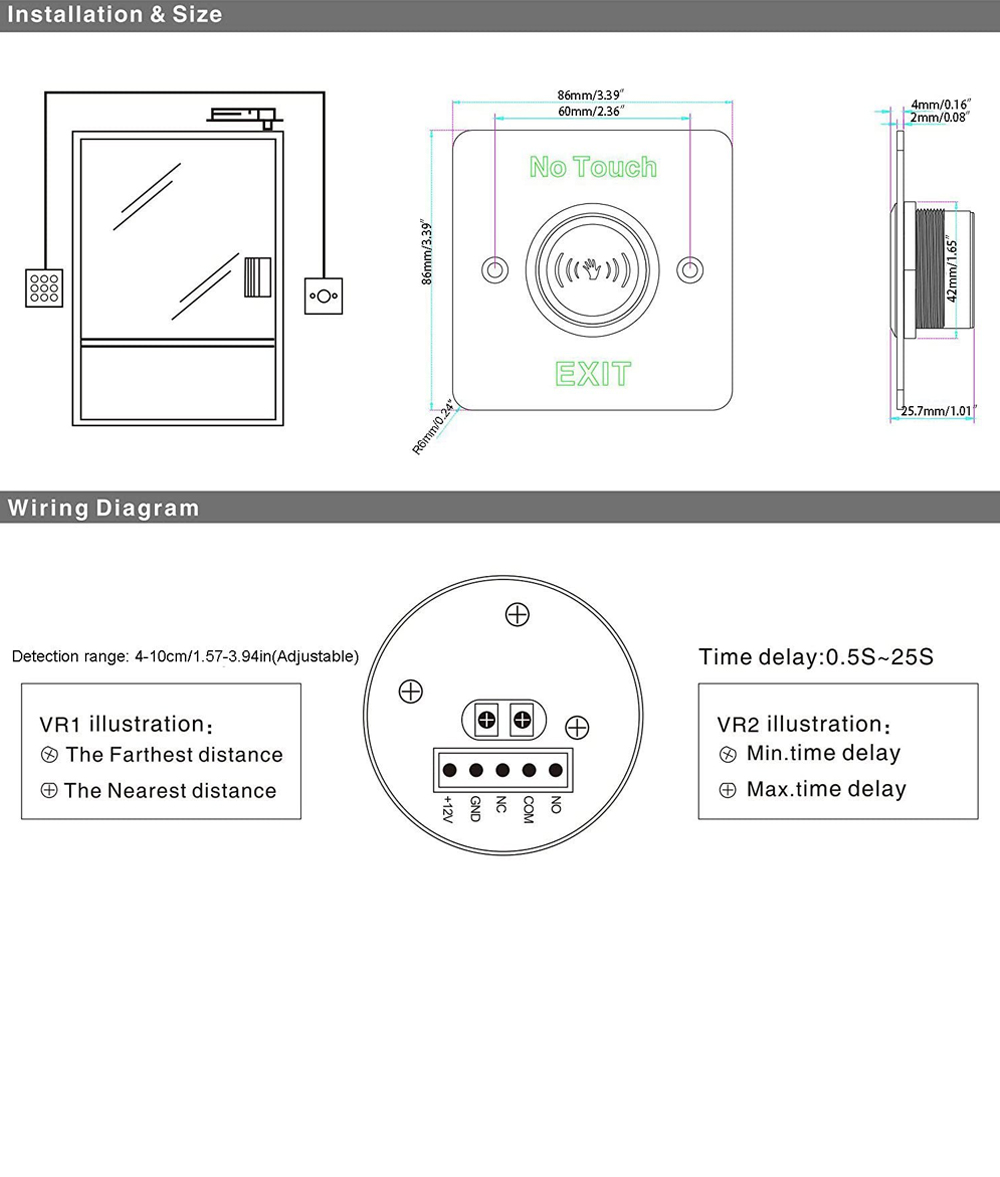

Installation：

Package:

• 1 x Exit Button
