Wired Emergency Fire Alarm Station 9-28VDC Conventional Dual Action Manual Call Point

Wired Emergency Fire Alarm Station 9-28VDC Conventional Dual Action Manual Call Point



Features:

• Attencion: Non UL-Certification Listed
• Key lock available; Dual Action

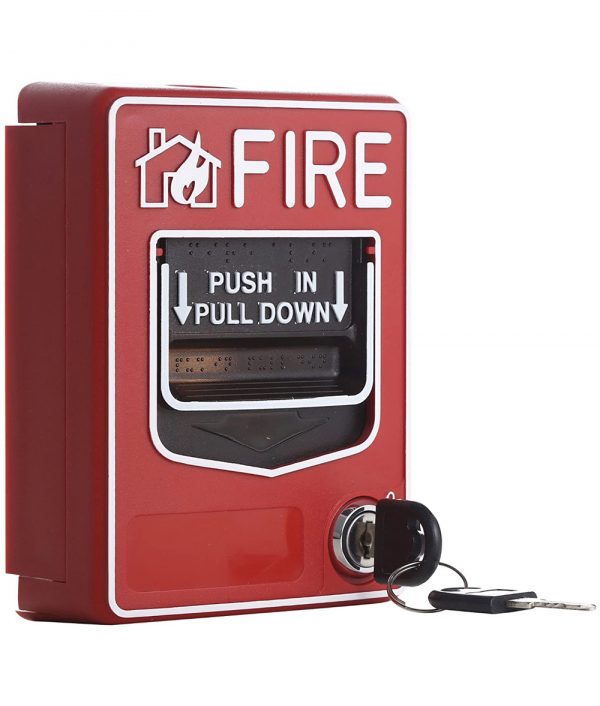

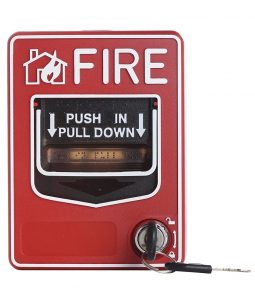

• The HC102 conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by its PUSH IN/PULL DOWN handle latches
• Pushing in and then pulling down on the handle activates the normally-open alarm switch. Once latched in the down position , the word” ACTIVATED” appears at the top in bright yellow, with a portion of the handle protruding at the bottom as a visible flag.
• Note: Call point can’t work alone, and it needs to work with alarm control panel.

Specifications:

• Non UL Listed
• Operating voltage range: 9-28VDC Volts
• Alarm resistance: 470ohm/1W
• Operating humidity range: 10% to 93% relative humidity, non-condensing
• Operating temperature range: -10℃~50℃ (14℉~122℉)
• Dimensions (LxWxH): 140x104x45mm / 5.51″x4.09″x1.77″
• Net Weight: 220g / 0.44lb

Instructions:

Operation:

• The manual call points provide a textured finger-hold area that includes Braille text. In addition to PUSH IN and PULL DOWN text, there are arrows indicating how to operate the station, provided for non-English-speaking people.
• Pushing in and then pulling down on the handle activates the normally-open alarm switch. Once latched in the down position , the word” ACTIVATED” appears at the top in bright yellow, with a portion of the handle protruding at the bottom as a visible flag.
• Resetting the station is simple: insert the key, twist one quarter-turn, then open the station’s front cover, causing the spring-loaded operation handle to return to its original position. The alarm switch can then be reset to its normal(non-alarm) position manually(by hand) or by closing the station’s front cover, which automatically resets the switch.

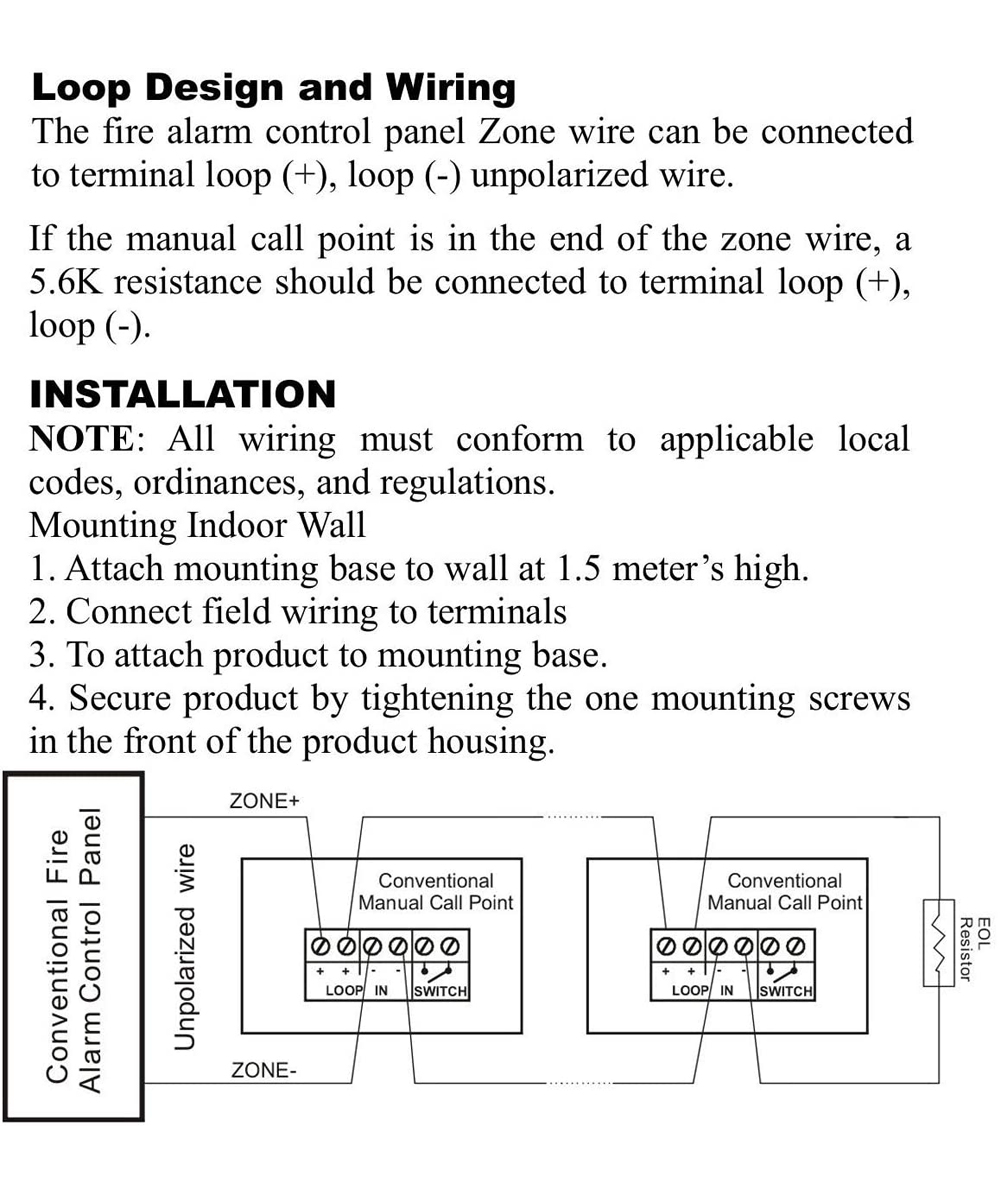

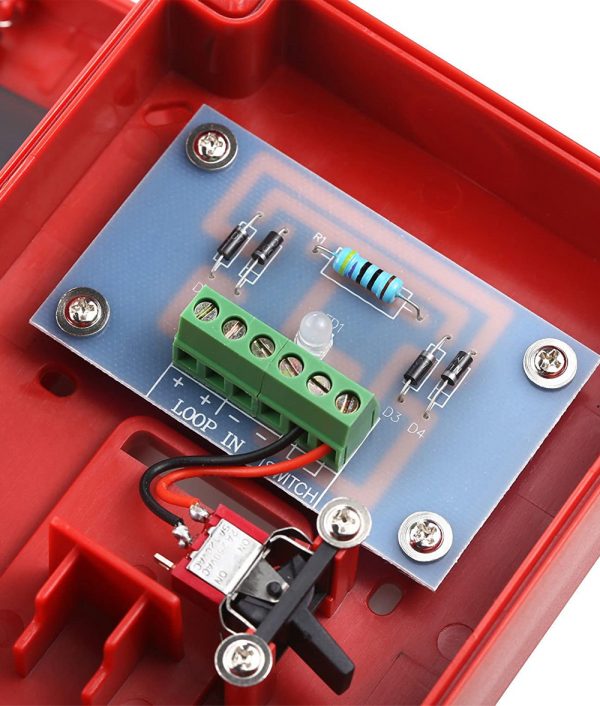

Loop design and wiring:

• The fire alarm control panel Zone wire can be connected to terminal loop(+), loop(-) unpolarized wire
• If the manual call point is in the end of the zone wire, a 5.6K resistance should be connected to terminal loop(+), loop(-)

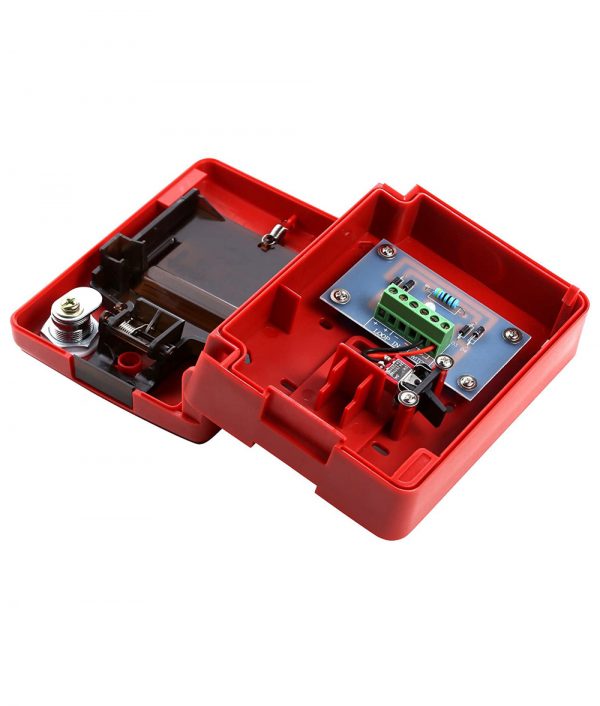

Mounting indoor wall:

• Attach mounting base to wall at 1.5 meter’s(59in) high
• Connect field wiring to terminals
• To attach product to mounting base
• Secure product by tightening the one mounting screws in the front of the product housing

Installation:

• Attenteion: All wiring must conform to applicable local codes, ordinances, and regulations

Attention:

• Alarm host is not included,  and you need buy seperately.

Package:

• 1 x Fire alarm call point
• 2 x Keys
• 1 x English manual
