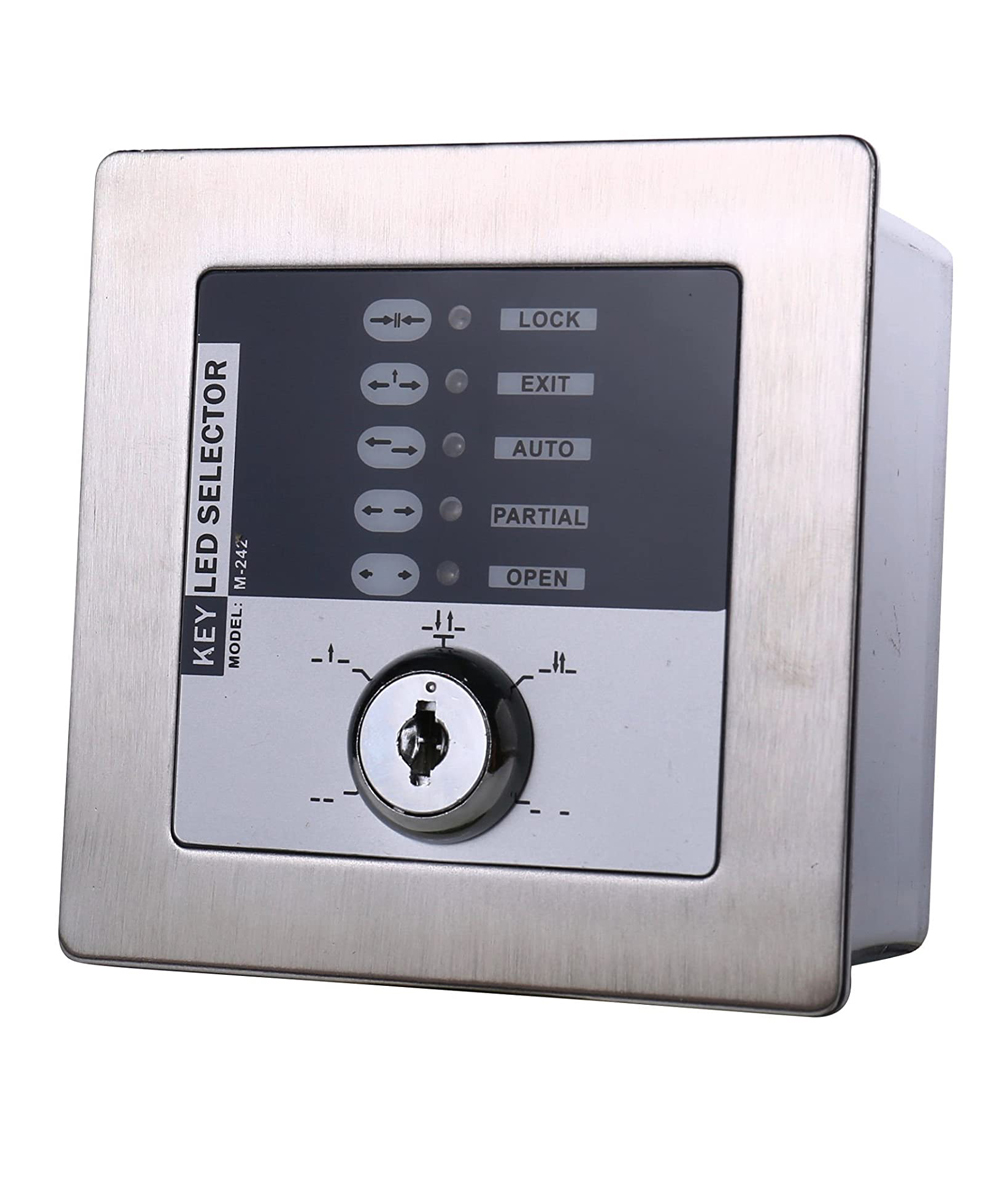

Stainless Steel Panel Five-Range LED Key Switch for Auto-Door System

Stainless Steel Panel Five-Range LED Key Switch for Auto-Door System

Features:

• Input Power: AC/DC 18V-36V
• Mechanical working life: over 75000 times
• Functions: 5 ranges
• With 86 Panel,special design with bottom panel,convenient for different installation
• Adopt wide voltage connect different power supply with autodoor controllers.
• This product is unidirectional command switch for automatic door accessory using. Manually issue automatic/exit/lock/open/partial instructions to switch functions.

Specifications:

• Input Power: AC/DC 18V-36V
• Mechanical working life: over 75000 times
• Functions: 5 ranges
• Display Screen: TFT 34x25mm
• Dimension: 92(L)x92(W)x46(H) mm / 3.6(L)x3.6(W)x1.8(H) inch
• Hole Dimension: 85(L)x85(W)x43(H) mm / 3.3(L)x3.3(W)x1.7(H) inch
• Package weight: 280g / 0.62lb

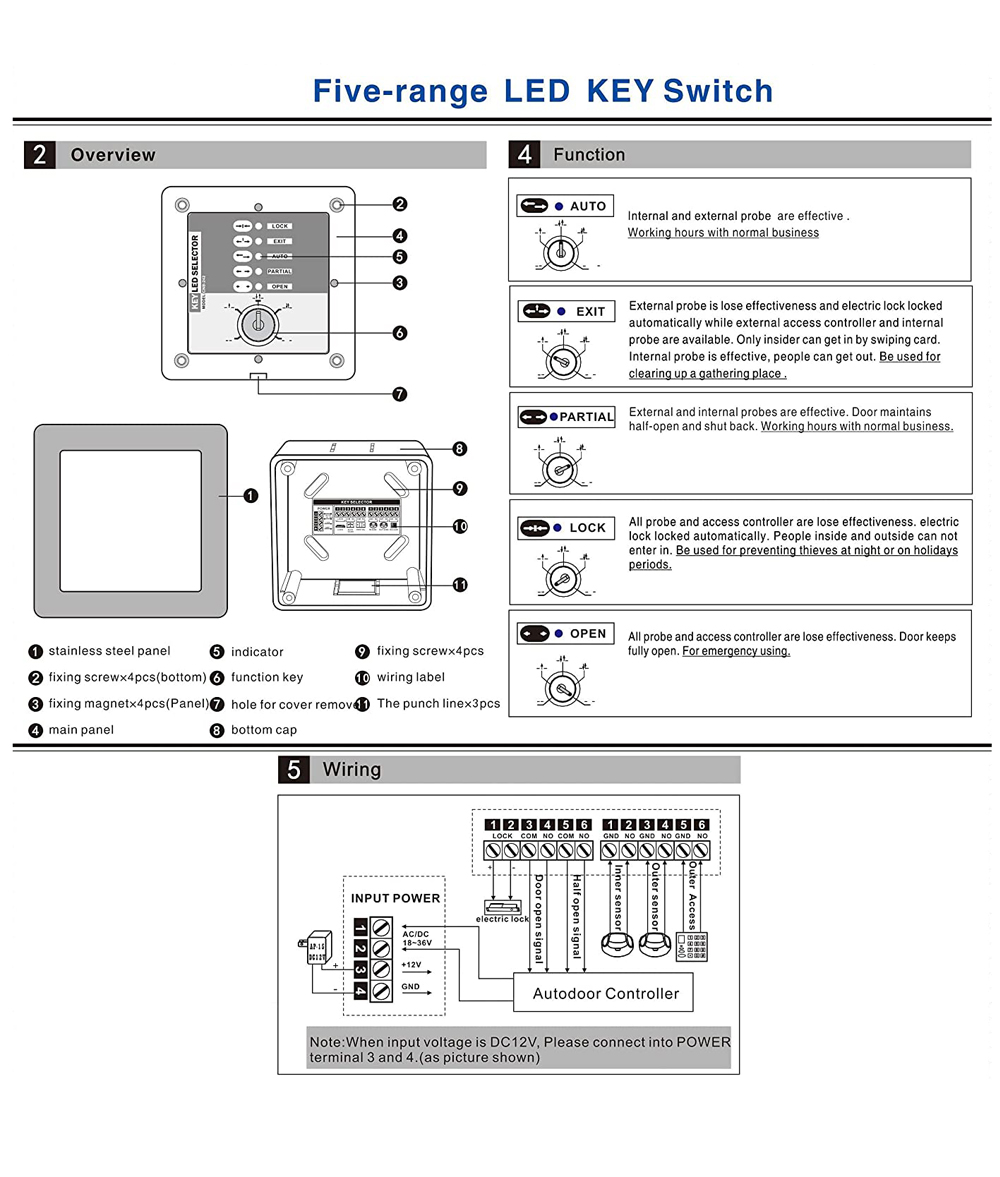

Functions:

• AUTO: Internal and external probe are effective.Working hours with normal business
• EXIT: External probe is lose effectiveness and electric lock locked,automatically while external access controller and internal probe are available. Only insider can get in by swiping card. Internal probe is effective,people can get out. Be used for clearing up a gathering place.
• Partial: External and internal probes are effective. Door maintains half-open and shut back. Working hours with normal business.
• LOCK: All probe and access controller are lose effectiveness,electric lock locked automatically. People inside and outside can not enter in. Be used for preventing thieves at night or on holidays periods.
• OPEN: All probe and access controller are lose effectiveness. Door keeps fully open. For emergency using.

Package:

• 1 x LED Key Switch
• 2 x Keys
