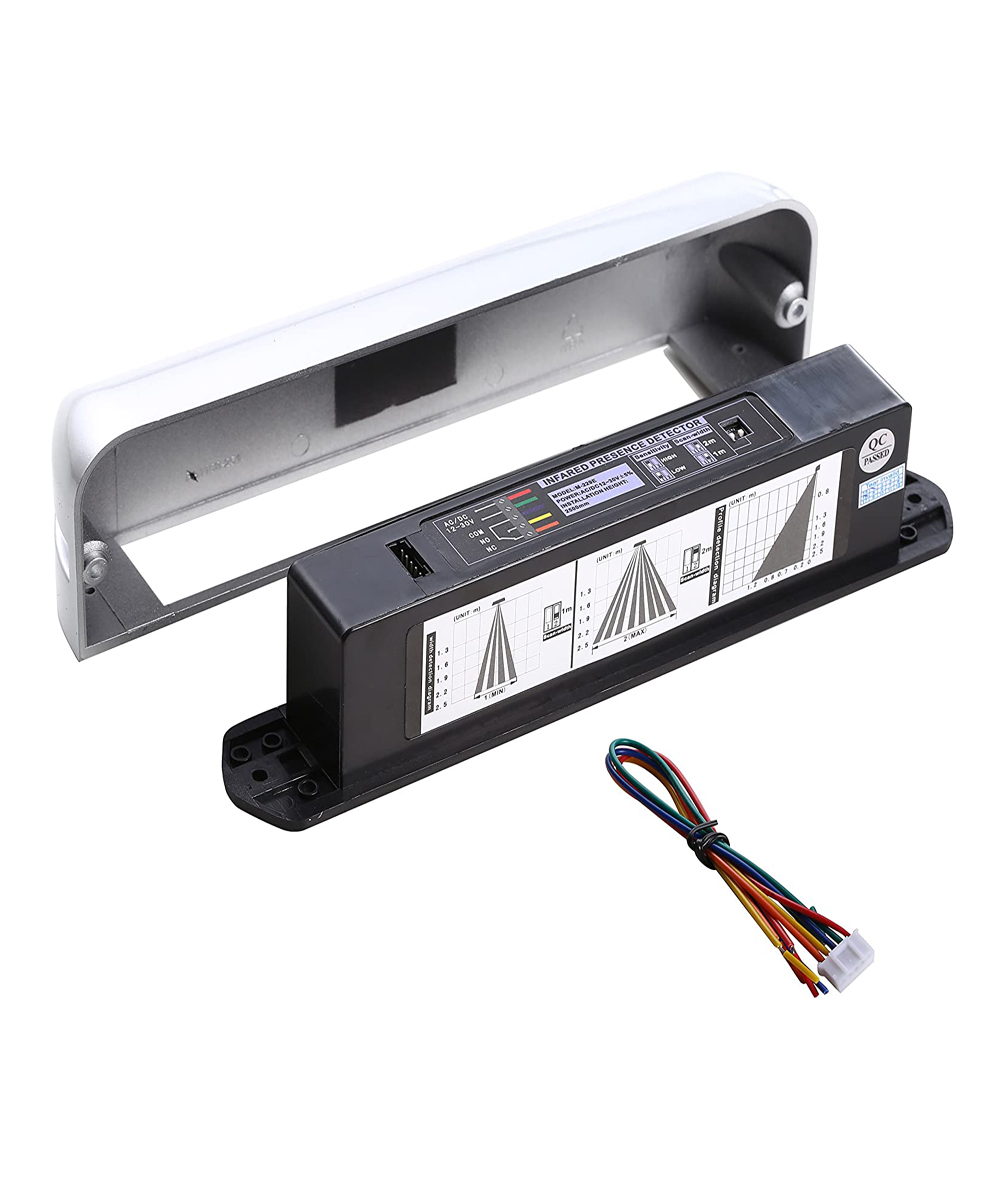

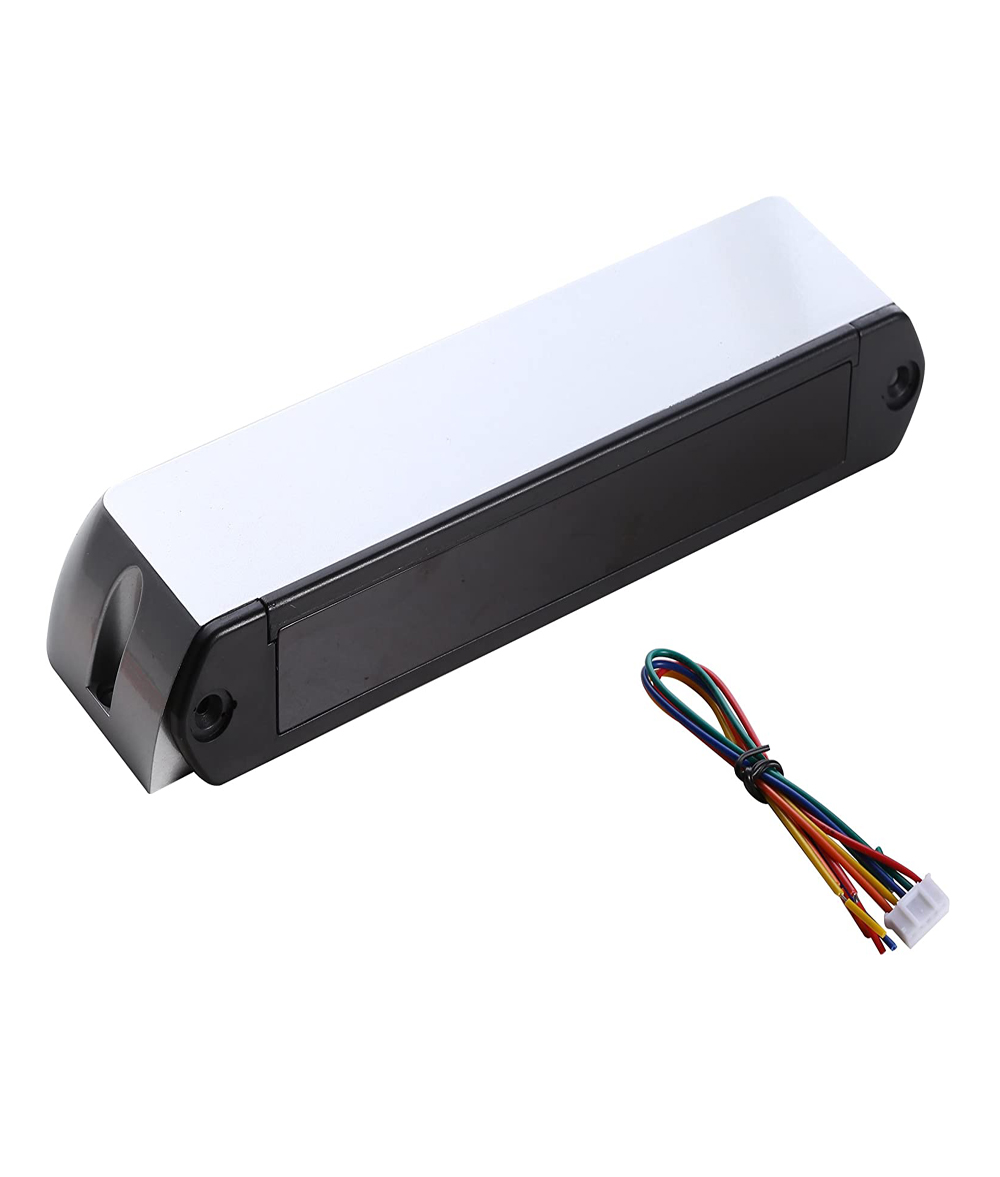

Infrared Presence Curtain Sensor Detector for Auto-Door Control System

Infrared Presence Curtain Sensor Detector for Auto-Door Control System

Features:

• Type of ray: Infrared light modulation
• This curtain sensor are special designed for automatic sliding door to detection and keep safety.High accuracy.
• Advanced infrared scanning technology.Stable and reliable
• Have function of background self-learn.Can learn background auto-matically when power on.Suit all kinds of occasions
• Always self-correcting once be influenced by quake,distortion,move,dark and sunshine.Ensure the sensor can work durable

Specifications:

• Power supply: AC/DC12-30V
• Type of ray: Infrared light modulation
• Photosource: Infrared 940mm/37in
• Light beam: 8 channel transmit,8 channel receive
• Quiescent current: 35mA
• Working current: 73mA
• Self-learn time: 15s
• Operating display: Standby/Blue LED, Detecting/Red LED
• Temperature range: -40℃~60℃ / -40℉~140℉
• Maximum installation: 2500mm / 98.42in
• Maximum detection area: 2000(W)x500(D)mm / 78.7(W)x19.7(D)in
• Hold-up time: 500ms
• Response time: <100ms
• Changeover mode: High/Low sensitivity and FA/FB adjustable
• Signal output: Relay,1 pair contact point optional
• IP: IP54
• Mechanical behavior: Maximum
• Connection: 1-1.5mm², 5 pin terminal
• Shell: ABS
• Optical surface: PMMA
• Installation: Exposed or Conceal
• Weight: approx. 145g / 0.32lb
• Size: Exposed 200Lx49Wx32H(mm) / 7.87Lx1.93Wx1.26H(in), Conceal 152Lx38Wx25H(mm) / 5.98Lx1.5Wx0.98H(in)

Package:

• 1 x Presence Curtain Detect Sensor
