DC/AC 10-36V Infrared Presence Detector Sensor for Auto-Door Control System

DC/AC 10-36V Infrared Presence Detector Sensor for Auto-Door Control System

Features:

• Mode of operation: Background
• Function that: Standby for green,red movement induction
• Protection grade: IP 52 (Take protective cover fittings IP 65)
• Maximum height of installation: 3000mm / 118.11in
• Housing materials and colors: ABS black/Lake mulberry (The front cover with stents/optical window)

Specifications:

• Vertical scan adjusted range: 800-2500mm / 31.5-98.43in (Unscrew adjustment with machinery)
• After scanning the range: Can offset 150mm / 59.06in
• Black/White difference: <400mm / 15.75in(When 2000mm/78.74in height measurement)
• Effective induction area: Dia.50mm / 1.97in(When 2000mm/78.74in height measurement)
• Divergence Angle: approx. 140 degrees
• Maximum height of installation: 3000mm / 118.11in
• Light type: Pulse,intermittent IRLED
• Working voltage: AC/DC12-36V (1A 12VDC)
• Residual corrugated: Maximum 10%
• Static Current: 28mA (Action current 70mA)
• Mode of operation: Background
• Signal output: Signal output relay contacts are drugs. ComjjNC. Three
• Function that: Standby for green,red movement induction
• Protection grade: IP 52 (Take protective cover fittings IP 65)
• Housing materials and colors: ABS black/Lake mulberry (The front cover with stents/optical window)

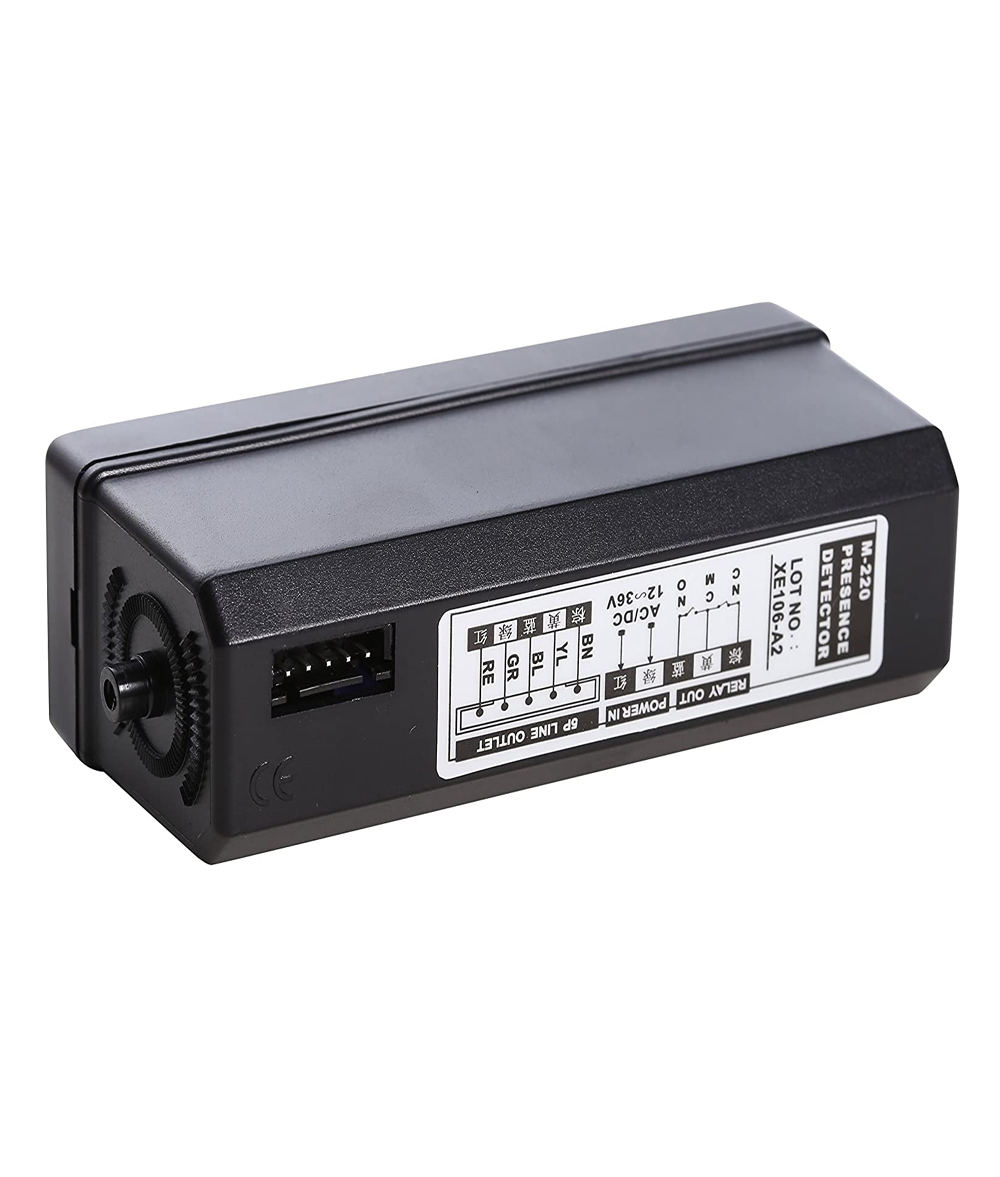

• Size of sensor: 102Lx46Wx32H(mm) / 4.02Lx1.81Wx1.26H(in)

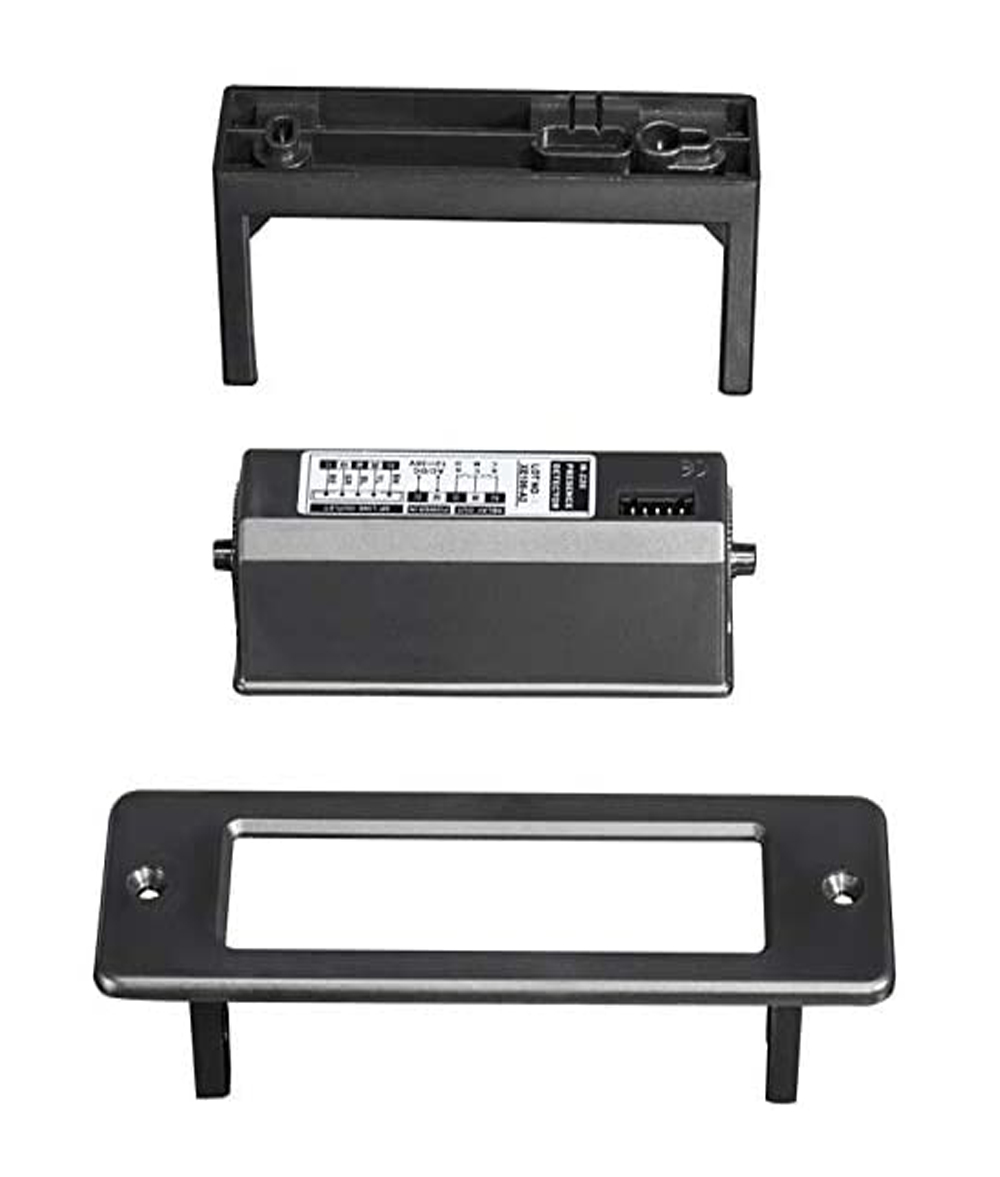

• Size of stents: 123Lx45Wx50H(mm) / 4.84Lx1.77Wx1.97H(in) (Including packing and the relevant supporting bracket)
• Operating temperature range: -20℃~60℃ / -4℉~140℉
• Humidity: 0-90% of relative humidity
• Weight: approx. 238g / 0.52lb
• EMC compatibility: Anti-interference: EN 61000-6-1, 6-2 EN 61000-2; Launch 61000 – interference with EN,6-3,EN61000-6-4

Package:

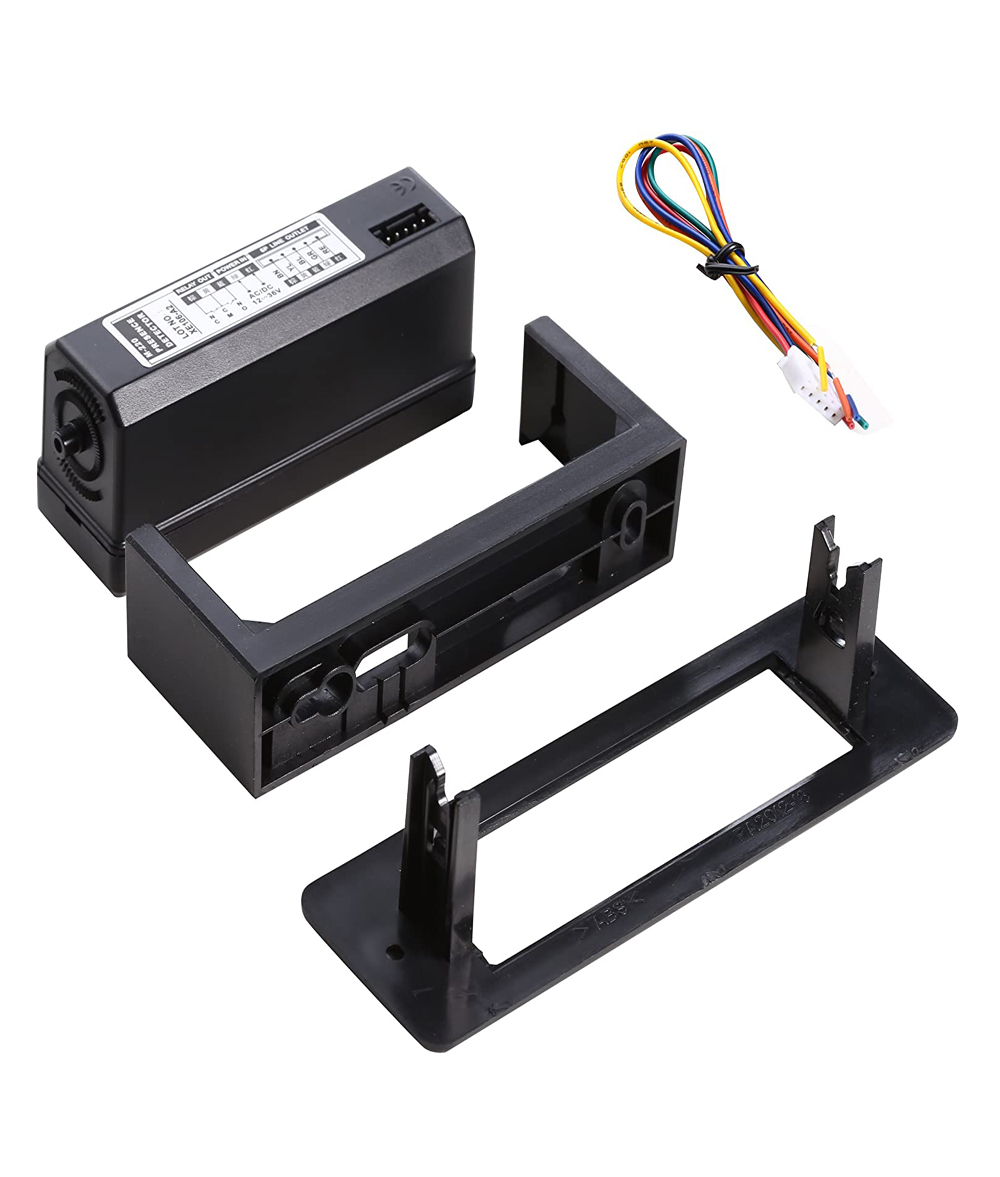

• 1 x Infrared Presence Detector
