Three Beams Photoelectric Sensor Detector Beam 8m/27FT Distance for Auto-Door

Three Beams Photoelectric Sensor Detector Beam 8m/27FT Distance for Auto-Door

Features：

• With Pull in & out socket for easy wiring.
• Adopt microcomputer control technology, high integration and stability.
• International optical lens design with good focus quality, controlled angle is rational, easy to be installed.
• Far transmit distance with strong, anti-interference ability.
• Adopting receiving filter, decoding, amplification system of German technology. Effective solution to anti-interference of natural daylight.
• Emission electric eye adopts low-power consumption design with far transmit distance.
• With AC/DC 12-30V Power input.
• Warning Alarm will be sent when eye sensor has problem.

Specifications：

• Power Supply: AC/DC 12-30V
• Quiescent Current: (12V power supply) 18mA
• Action Current: (12V power supply) 58mA
• Maximum Working Distance: 8m / 27ft
• NO/NC: Selected
• Transmit Cable: (Blue) 5.5M / 18ft
• Receive Cable: (Black) 5.5M / 18ft
• Beams: 3 Beams
• Working Temperature: -42℃~45℃ / -43.6℉~113℉
• Working Humidity: 10-90%RH

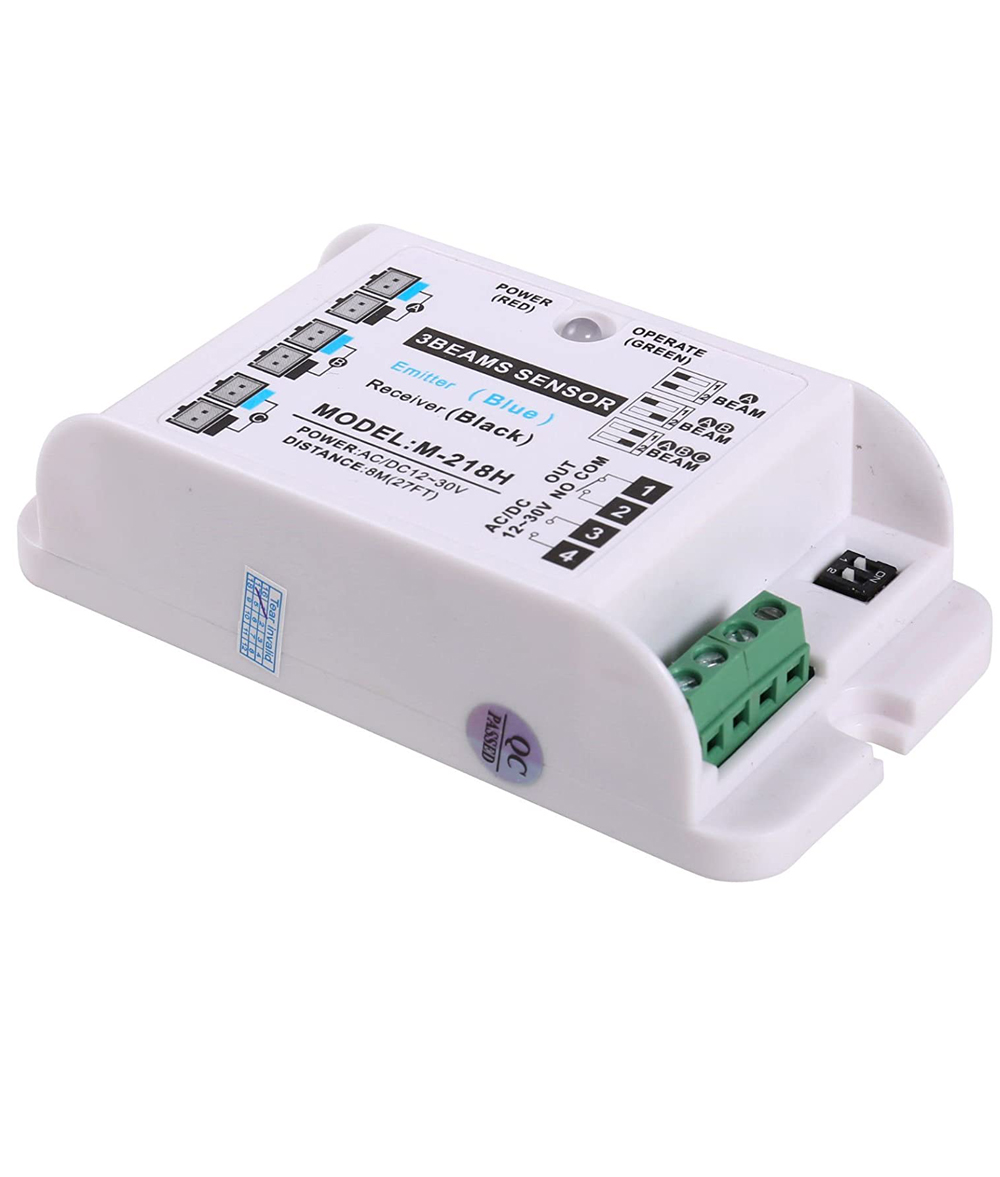

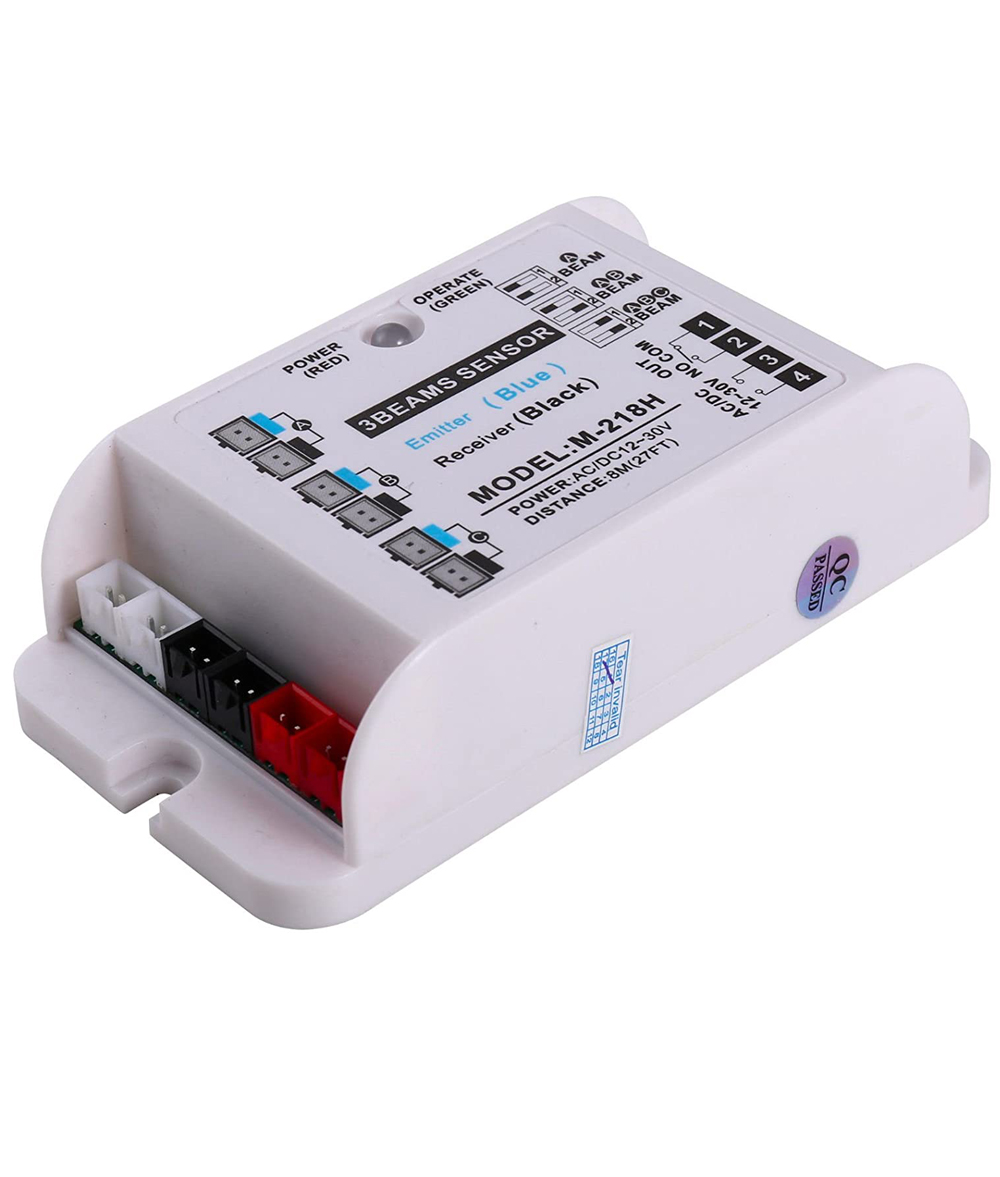

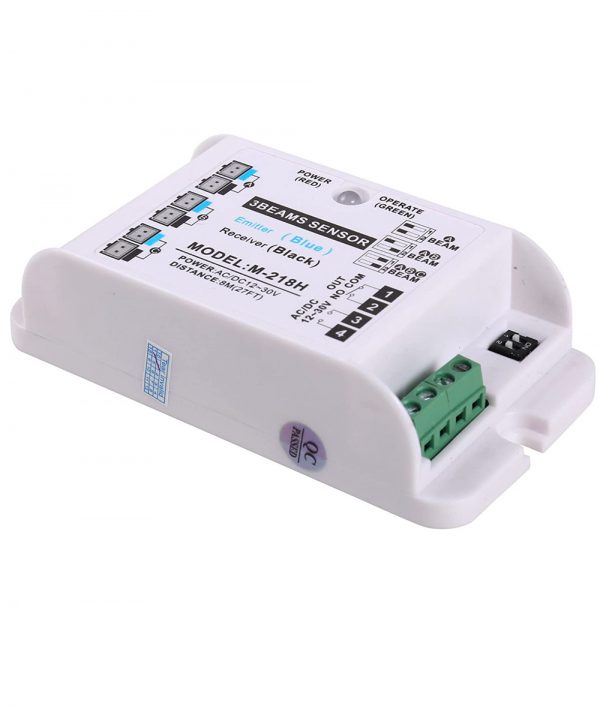

• Dimension of Controller: 105.5(L)x53.4(W)x28.5(H)mm / 4.2(L)x2.1(W)x1.1(H) inch

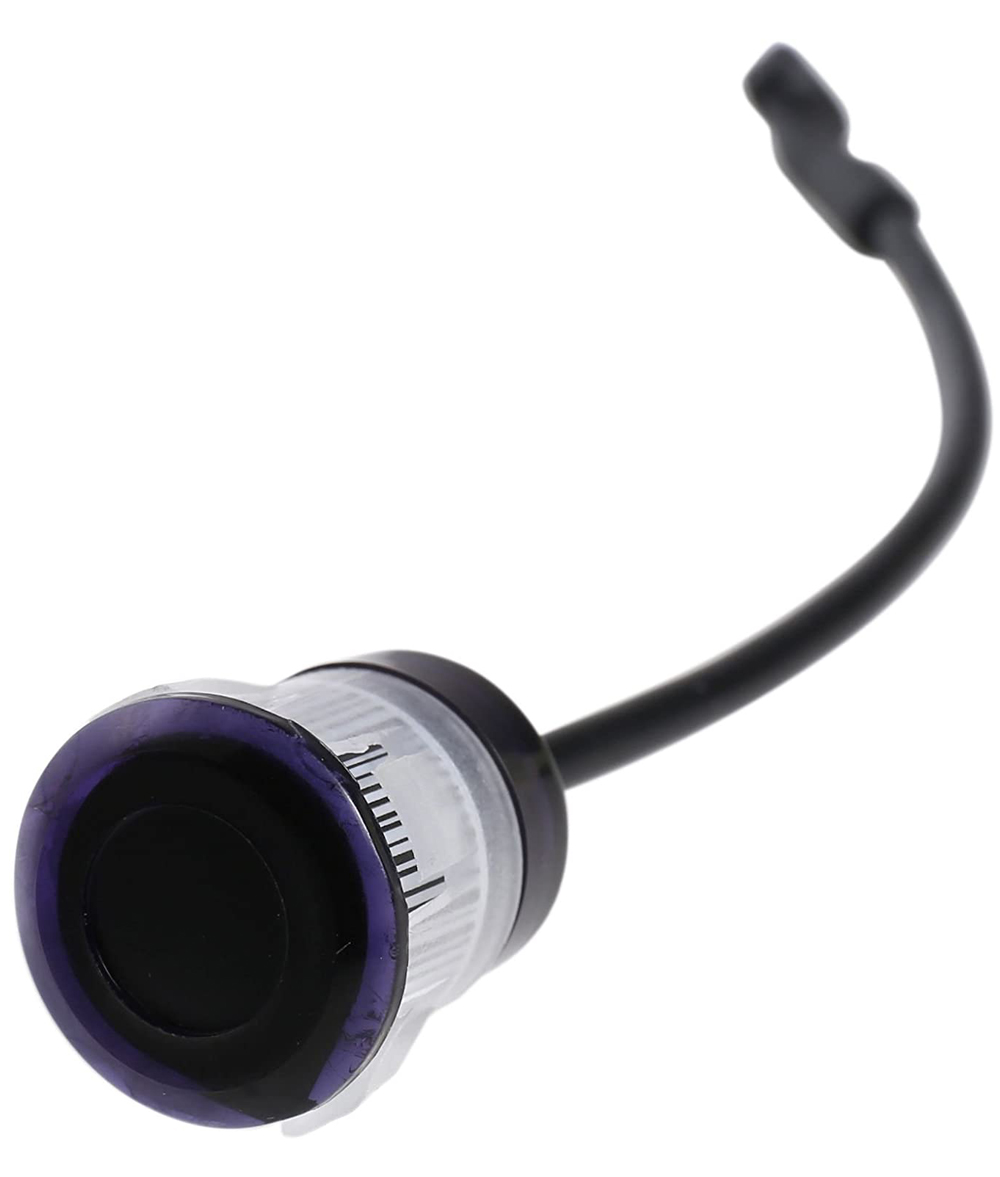

• Dimension of Eye: 19(L)x13(D)mm /0.7(L)x0.5(D) inch
• Package weight: 470g / 1.04lb

Note:

• Drilling the mounting holes of 13mm/0.51in for electric eye installation.
• Please instal the emission and receive eyes in horizontal & vertical position.
• Please avoid bonsai to cause error action.
• Please avoid direct sunlight and moist.
• Installation height of receiver should be not less than 20cm/7.87in from the ground.

Package:

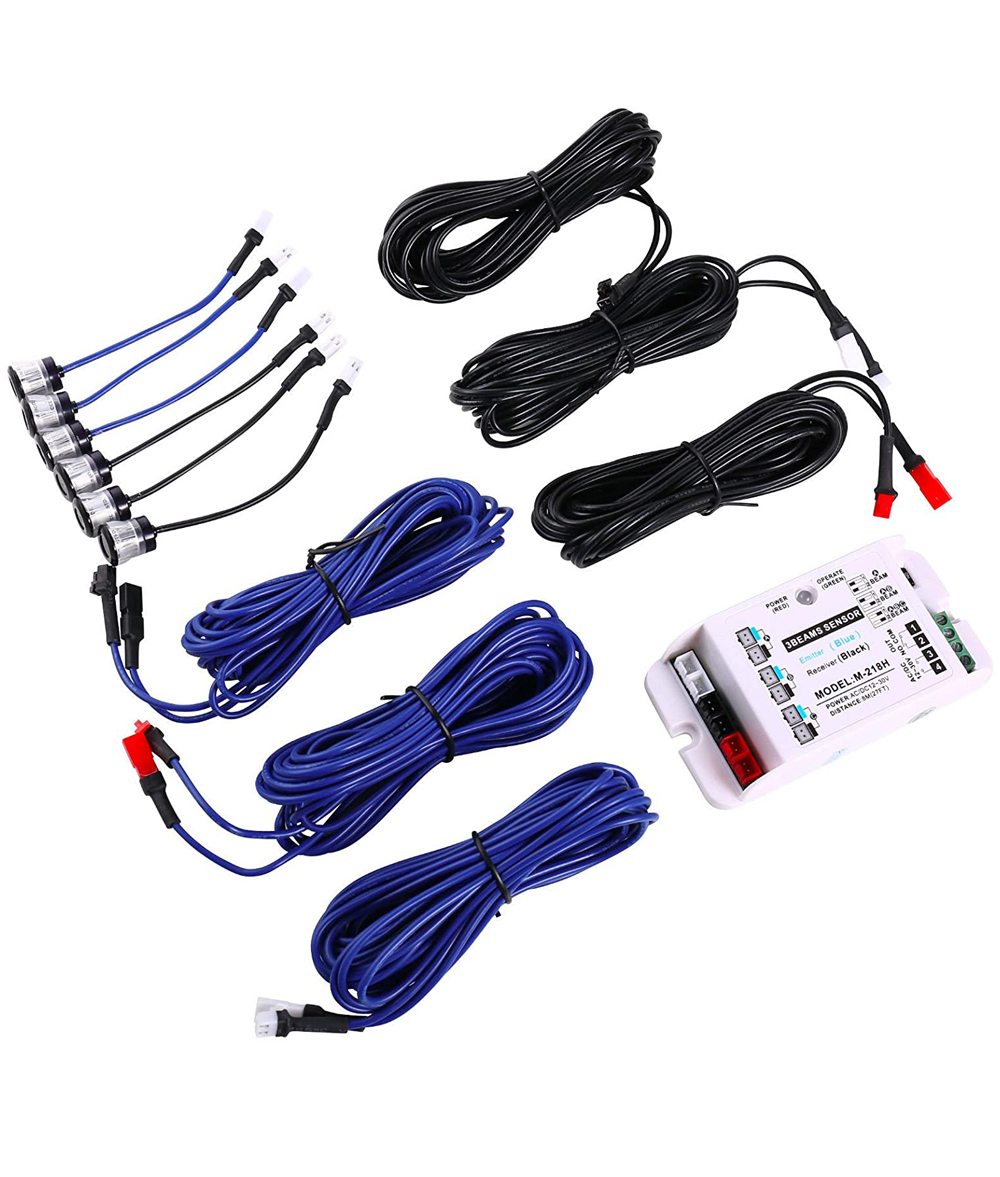

• 1 x 3 beams sensor with cables
