Auto Door Single Channel Remote Control Exchanger 1 Receiver & 2 Transmitter

Auto Door Single Channel Remote Control Exchanger 1 Receiver & 2 Transmitter

Features:

• Adopt uniformity frequency with high stability of wireless signal receiving and sending
• Operate frequency: 433MHz, stability better than 10-5
• Remote transmitter adopts low power consumption design with far transmit distance. Long service life of battery
• With four group of relay contact signal output, available to be used with autodoor unit, electric lock and access conttoller
• DC/AC 12-36V voltage input
• Function switch with voice indicator, power indicator turns to be green to confirm the validity of operation
• L-type or M-type available for chosen for output state

Over-View:

• This product is with the function of coding self-lear. Make sure the code of remote transmitter has been learned into the receiver before using. (16 kinds of codes can be learned)
• Operation way: Press the learn button, indicator turns green, Press any key of the remote transmitterr, two flashes of green light, the transmitter has been learned by the controller successfully
• Delet method: Press the learn button for 5s, green light flashing all codes have been deleted successfully. (Can not be deleted one by one)
• Power should be cut in case of switching the function. (L-type or M-type) Otherwise, the receiver maintains the previous state

Specifications:

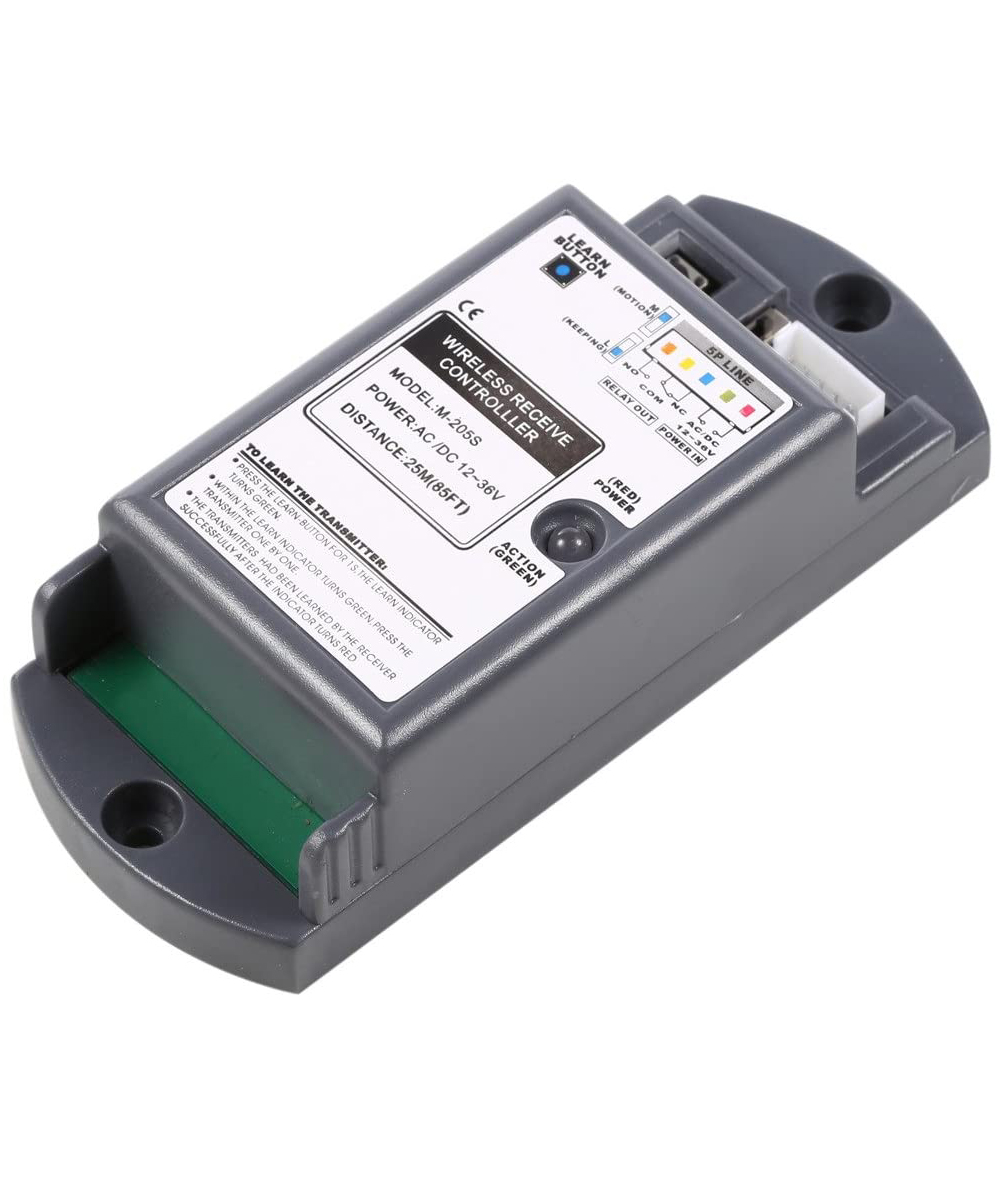

Receiver:

• Power supply: AC/DC12-36V
• Static current: 15mA
• Action current: 80mA
• Relay contact capacity: 20A 14VDC
• Dimension: 123Lx50Wx32H(mm) / 4.84Lx1.97Wx32H(in)
• Weight: 150g / 0.33lb

Transmitter:

• Life of battery: More than 20000 times
• Transmit distance: Max. 25 meters(82ft) without blocking
• Operate temperature: -42℃~45℃ / -43.6℉~113℉
• Operation humidity: 10-90%RH

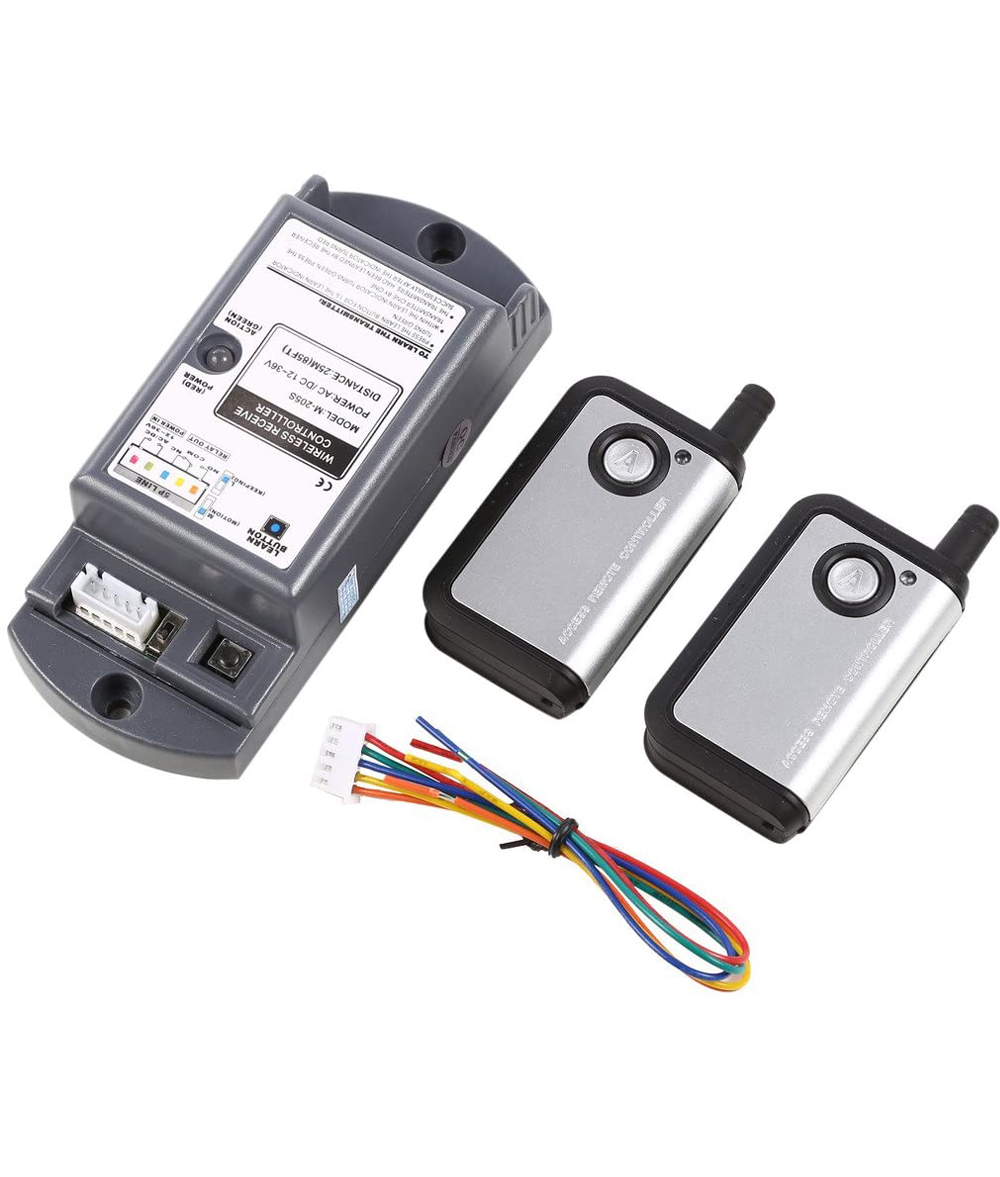

Package:

• 1 x Wireless Receiver
• 2 x Transmitter
