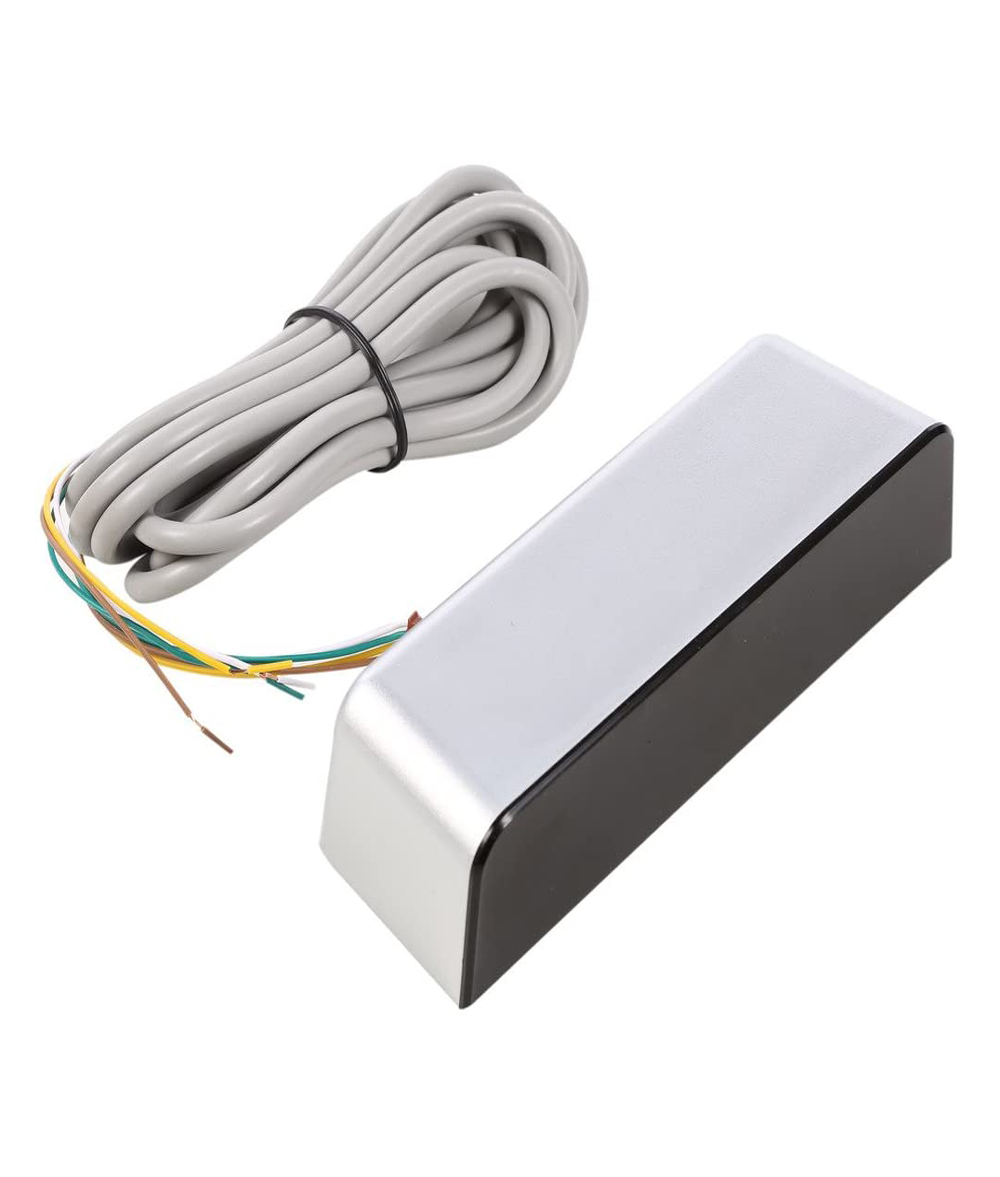

AC/DC 12V-24V 24.125GHz Microwave Disposer Motion Detector Sensor for Auto Door

AC/DC 12V-24V 24.125GHz Microwave Disposer Motion Detector Sensor for Auto Door

Specifications:

• Technology: Microwave & Microwave Disposer
• Frequency: 24.125Ghz
• Transmitting Power: 20dBm EIRP
• Launch Frequency Density: 5mW/cm2
• Installation Height: Max. 4m / 13.1ft
• Installation Angle: 0~90 degree(Lenghtways), -30 to +30 degree(Lateral)
• Detection Mode: Motion
• Min Detection Speed: 5cm/s(1.97in/s)
• Power: 2W(VA)
• Detection Range: 4(Width)X2(Depth)m / 157.48(Width)x78.74(Depth)in (Installation Height: 2m/78.74in)
• Maximum Voltage: 42AC-60 DC
• Maximum Current: 1A
• Maximum Switching Power: 30W(DC)/60VA(AC)
• Retention Time: 0.5S
• Guide Line: 2.5m / 8.2ft
• Working Temperature: -20℃~+55℃ / -4℉~131℉
• Protection Class: IP54
• Sheating Material: ABS plastic
• Color: Silver
• Anti-interference Performance: R&TTE1995/5/EC, EMC 89/366/EEC
• Power Voltage: 12-24V AC/DC
• Size: 150Wx50Hx38D(mm) / 5.91Wx1.97Hx1.5D(in)

Package:

• 1 x Micro Wave Sensor
• 1 x Connection Cable
