Auto-Door Remote Control System Wireless Hand Pressure Switch & Receive Controller

Auto-Door Remote Control System Wireless Hand Pressure Switch & Receive Controller

Features:

• ADOPT uniformity ferquency, high stability of wireless signal receiving and sending
• Siludification of PU varnished shell, dapper apperence with anti-off screw
• Panel pushing with low-power consumption, long service life battery
• With lagre capacity output, available to be used with autodoor, electric lock and access controller
• Function switch with voice indicatior, power indicatior turns green to confirm the validity of operation.

Specifications:

• Power: AC/DC12-36V (Wireless receiver controller)
• Current: 15mA(Standby); 80mA(Working)
• Main contact capacity: 20A 14VDC (Wireless receiver controller)
• Secondary contact capacity: 1A 24VDC (Wireless receiver controller)
• Contact pull hold time: 2S (Wireless receiver controller)
• Battery: 6V (Wireless hand pressure switch)
• Emission current: 3.9mA (Wireless hand pressure switch)
• Battery life: approx. 300 days if press 500 times everday (Wireless hand pressure switch)
• Distance: 10m / 34ft
• Working temperature: -42℃~45℃ / -43.6℉~113℉
• Working humidity: 10~90%RH
• Hand pressure switch size: 203x40x13mm / 7.99×1.57×0.51in (LxWxH)
• Receiver controller size: 123x50x32mm / 4.84×1.97×1.26in (LxWxH)

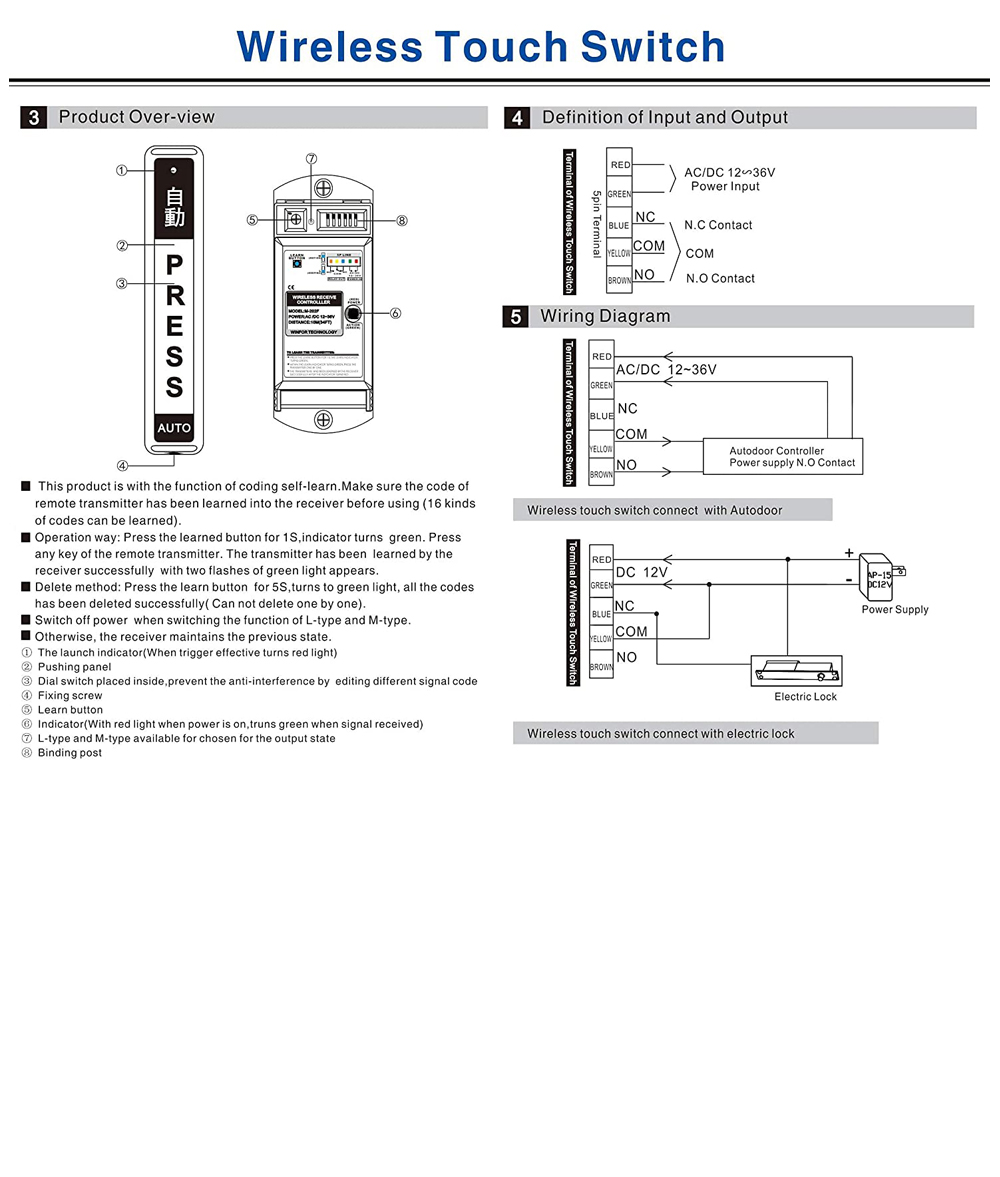

To learn the transmitter:

• Press the LEARN-BUTTON for 1S, the leare indicator turns green
• Within the learn indicator turns green, press the transmitter one by one
• The transmitters had been learned by the receiver successful after the indicator turns red

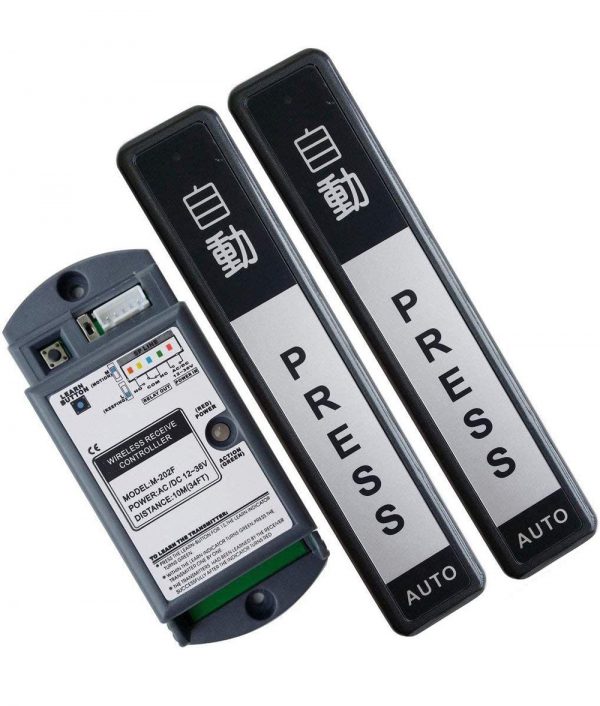

Package:

• 2 x Wireless hand pressure switch
• 1 x Wireless receive controller
