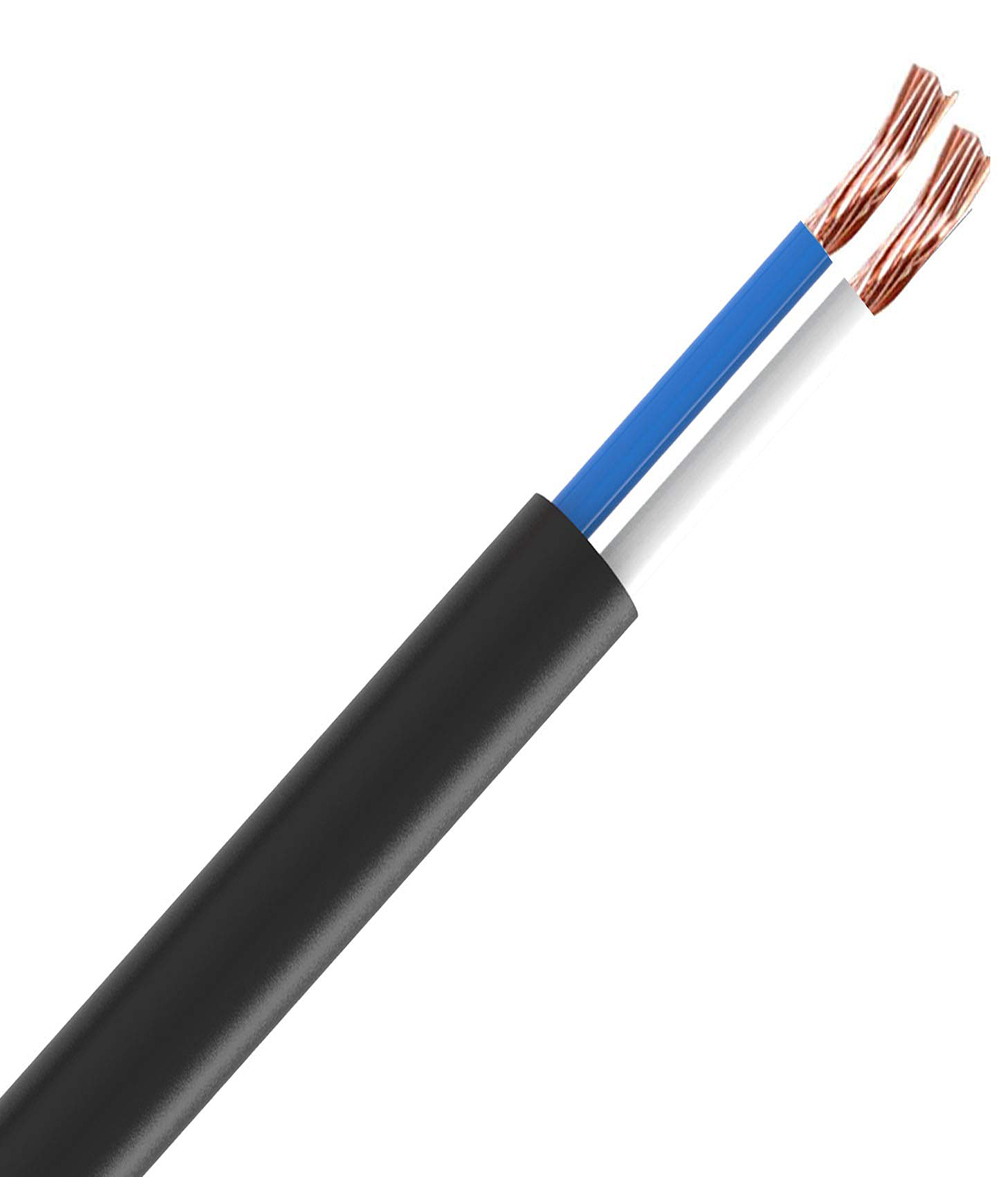

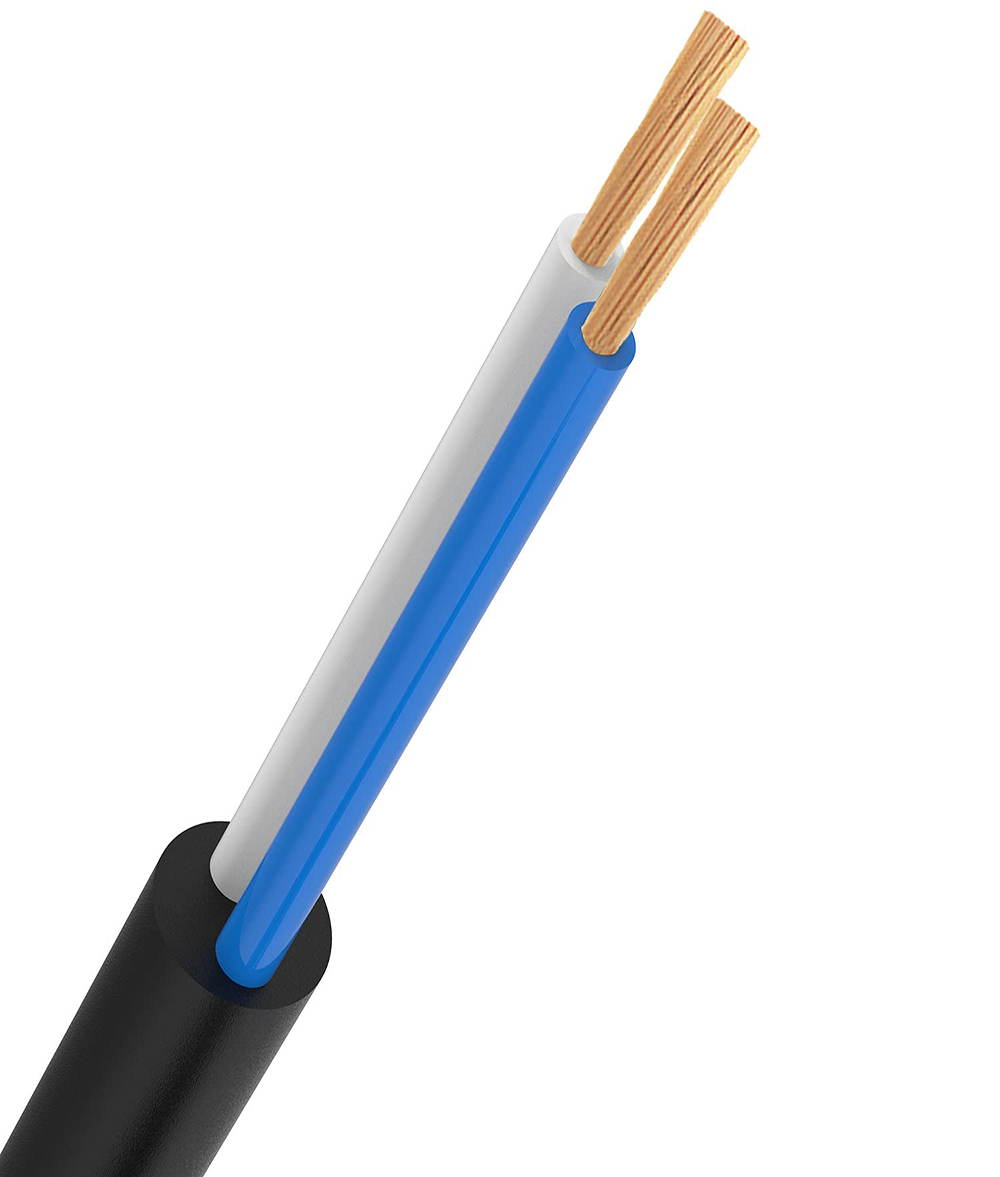

22 AWG Gauge 2 Conductor Bare Copper Unshielded Alarm Security Burglar Cable Wire (50ft)

22 AWG Gauge 2 Conductor Bare Copper Unshielded Alarm Security Burglar Cable Wire (50ft)

Features:

• Our quality stranded burglar cable has copper cores and a durable, yet flexible PVC outer insulation making it ideal for any low voltage installations.
• Apply to security monitoring and alarm system, building intercom system, for electrical equipment internal line control, for signal control of computer, instrument, electronic equipment and automation equipment.
• Commonly used in security/CCTV & Access control installations. Alarm cable can be used in a wide variety of applications such as; connecting to PIR sensors, door/window contacts, linking control panels together and much more.
• 0.3mm² RVV 300/300V square meter copper wire cable extend RVV wire
• PVC riser rated jacket
• The 50ft variants in our range are hand cut to length and are not likely to be supplied on a reel.

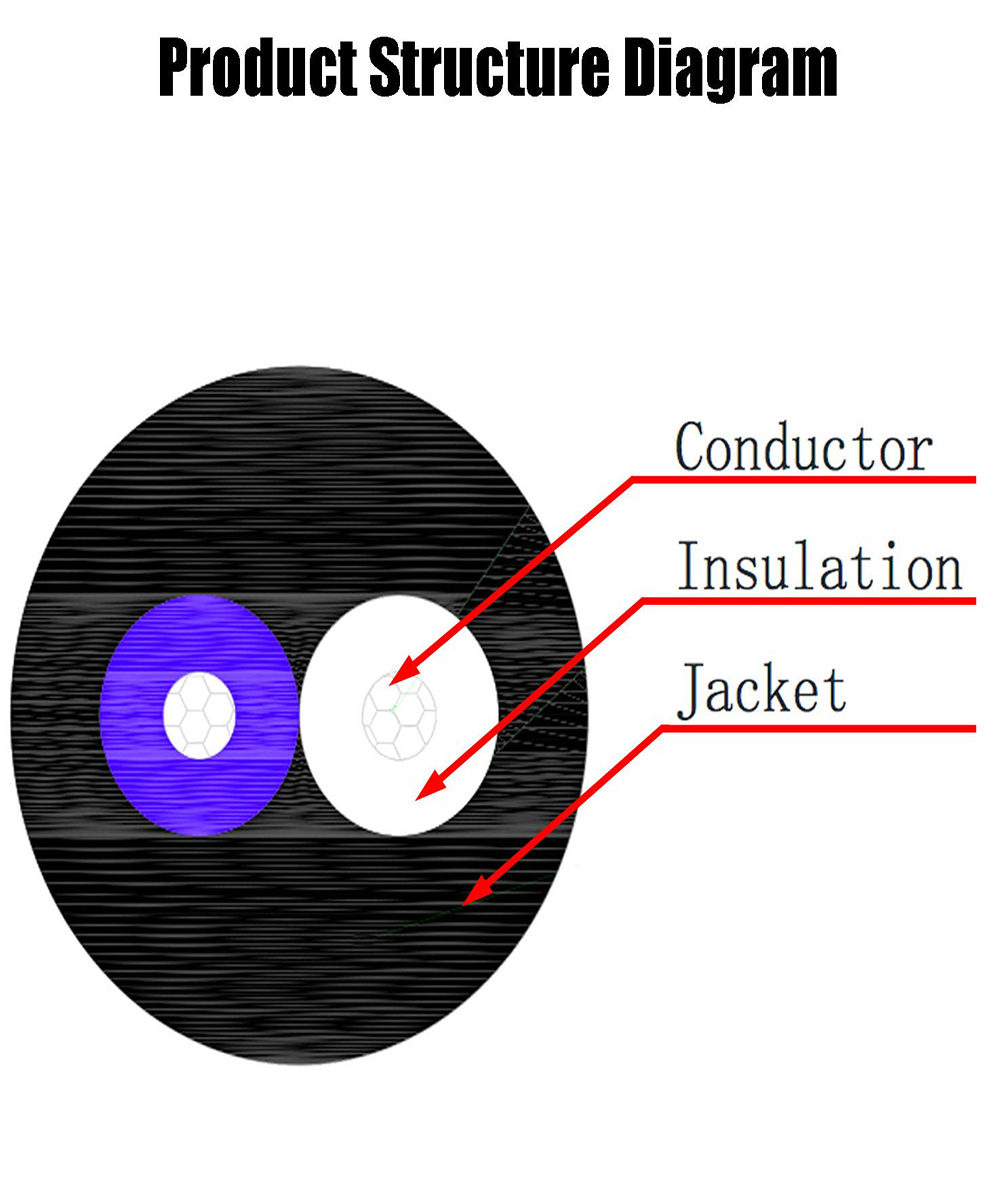

Specifications:

• No. of Cores: 2
• Nominal area: 0.3mm² / 22 AWG
• Conductor Size: 16/0.15mm
• Conductor Material: Bare copper (high grade)
• Insulation Material: Polyviny chloride
• Insulation Nom. Thickness: 1.65mm Core Colours: White, Blue
• Cabling Lay Pitch: 65mm
• Jacket Material: Polyvinyl chloride
• Jacket Colour: Black
• Jacket Nom. Thickness: 0.6mm
• Jacket Diameter: 4.5mm
• Length: 50ft
• Applications: Access control panels, security panels, card readers, sensors, keypads, power, microphones, speakers, alarm system

Package:

• 1 x 50ft copper wire

Note:

• Voltage drop should be taken into consideration before installing to ensure suitability particularly if you are going over a long distance at a high current.
