DC12-48V 433MHz 1CH Wireless Remote Control Relay Switch Transmitter & Receiver

DC12-48V 433MHz 1CH Wireless Remote Control Relay Switch Transmitter & Receiver

Features：

• Input Voltage: DC12-48V
• Operating mode: Jog/Self-locking/Interlock
• The wireless signal can pass through walls, floors and doors.
• You can turn on or turn off the receiver with transmitter(remote control) from any place within a reliable distance.
• Easy to install and easy to carry.
• It is a learning code wireless remote control switch (receiver), the output way / working way can be changed as you like, it is easy to match the transmitter.
• Widely Used: Home appliances switch, lighting switch, wireless control products, switches, intelligent switches and other electronic equipment.

Specifications:

• Input Voltage: DC12-48V
• Frequency: 433Mhz
• Working Temperature: -20℃~+60℃ / -4℉~140℉
• Code Type: Learning Code
• Operating mode: Jog/Self-locking/Interlock
• Max. load: 40A
• Transmitted Distance: 20-80m
• Transmitter Dia: Approx. 45mm/1.77in
• Receiver Size: 75x54x29mm / 2.95×2.13×1.14in
• Color: Black
• Weight: 0.14kg

Instructions：

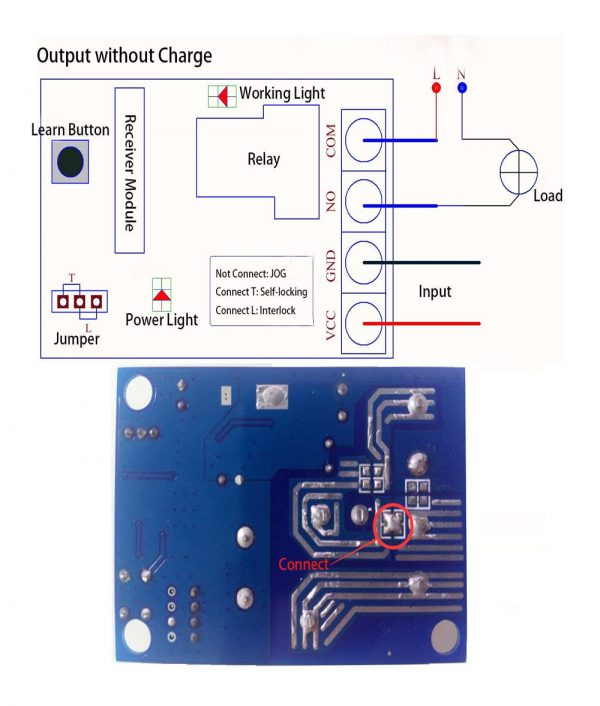

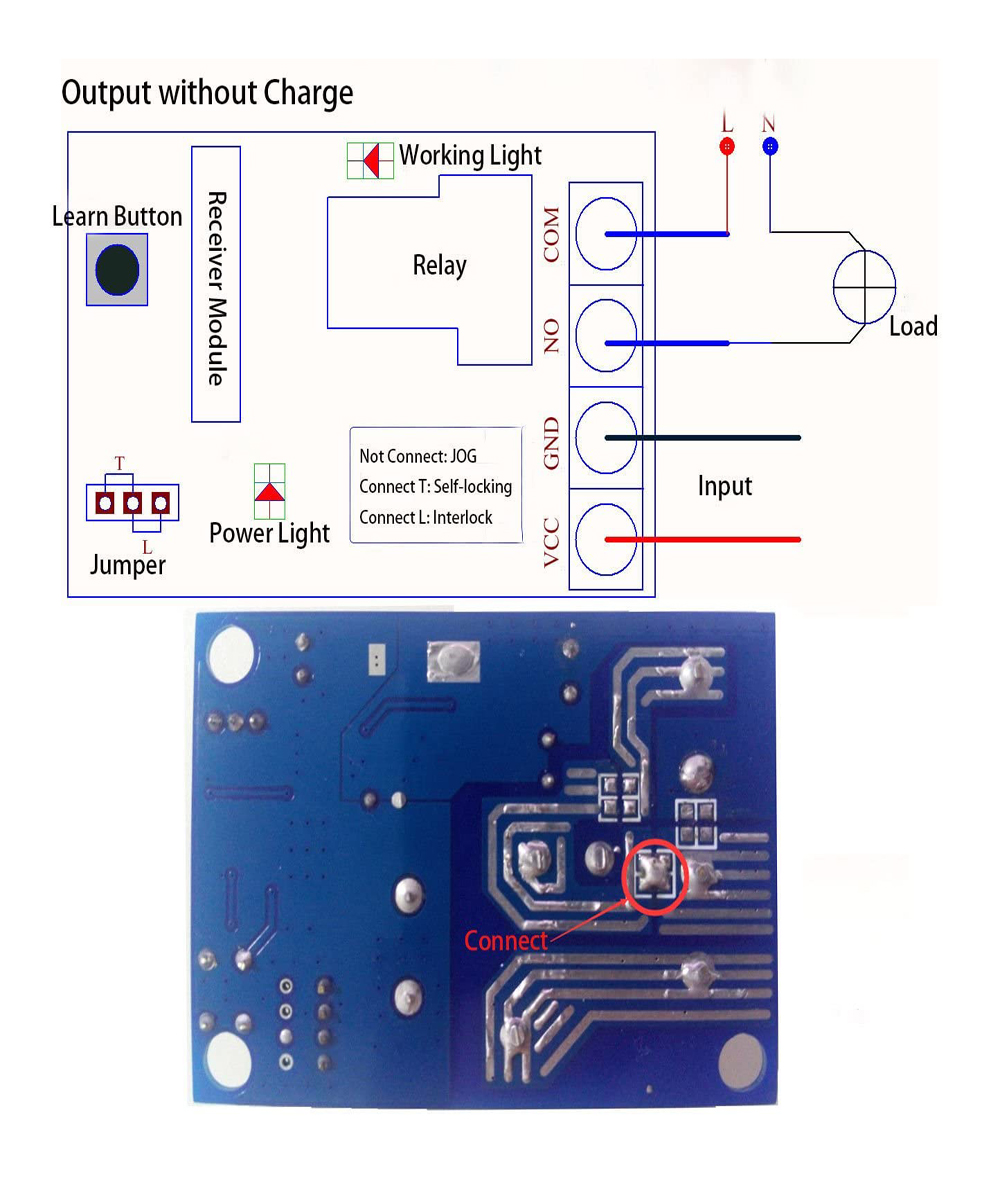

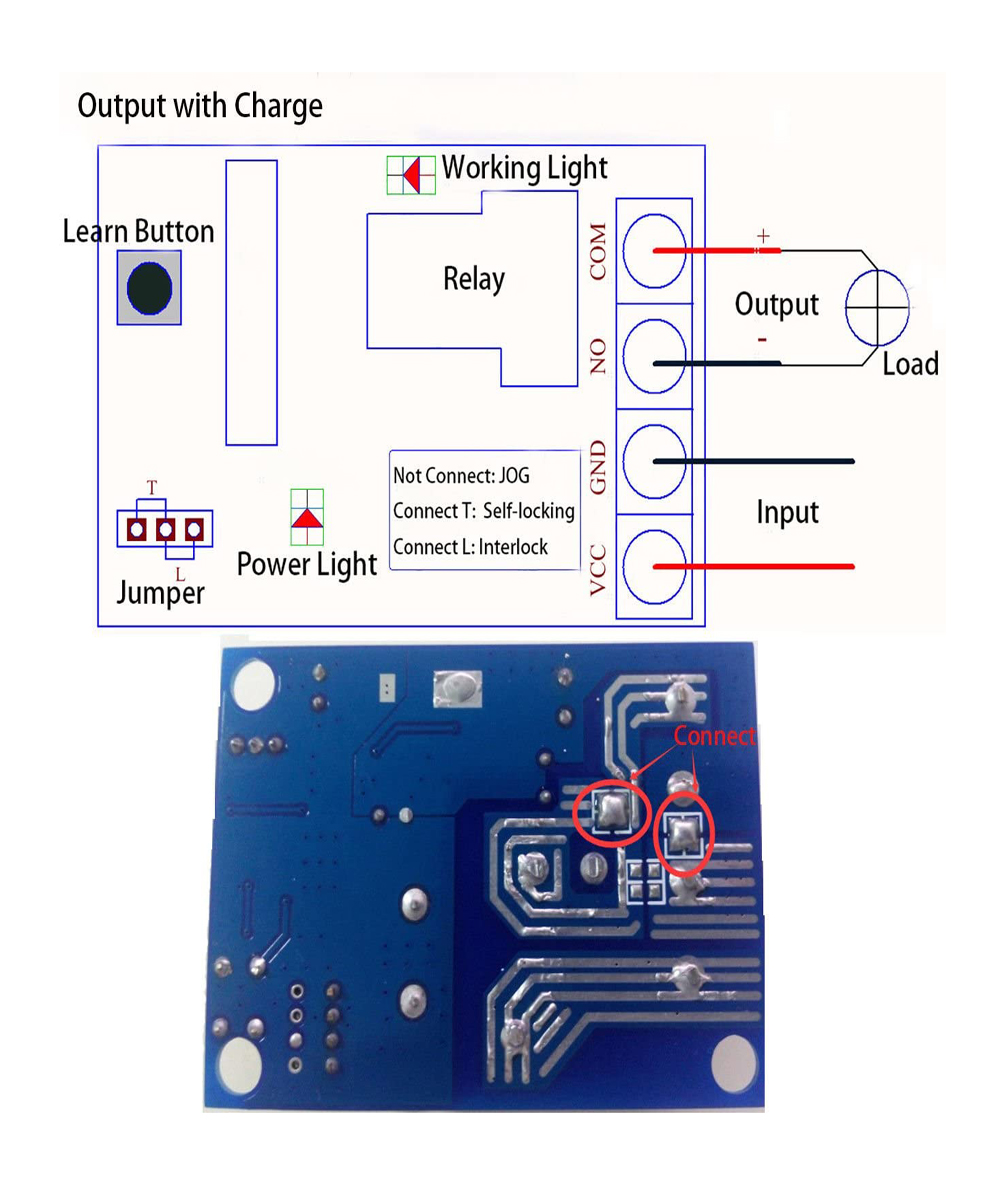

Working Mode:

• Jog: Pressing one button is working. Loosing the same button is stop.
• Self-lock: Pressing the button is working and pressing the button again is stop.
• Inter-lock: Pressing one button is working, Pressing another button is stop.

Operation Mode:

• Learning Code Method. Press the learn button on the receiver and the indicator is off, and then release the learn button and press any one button on the transmitter. The indicator light flashes 5 times and then become long bright, indicating the learn code is successful.
• Code cleaning Method. Press and hold the learn button, the indicator light turns on and off, and then resumes long light, indicating that the clear code is successful.

Package:

• 1 x Transmitter
• 1 x Receiver
