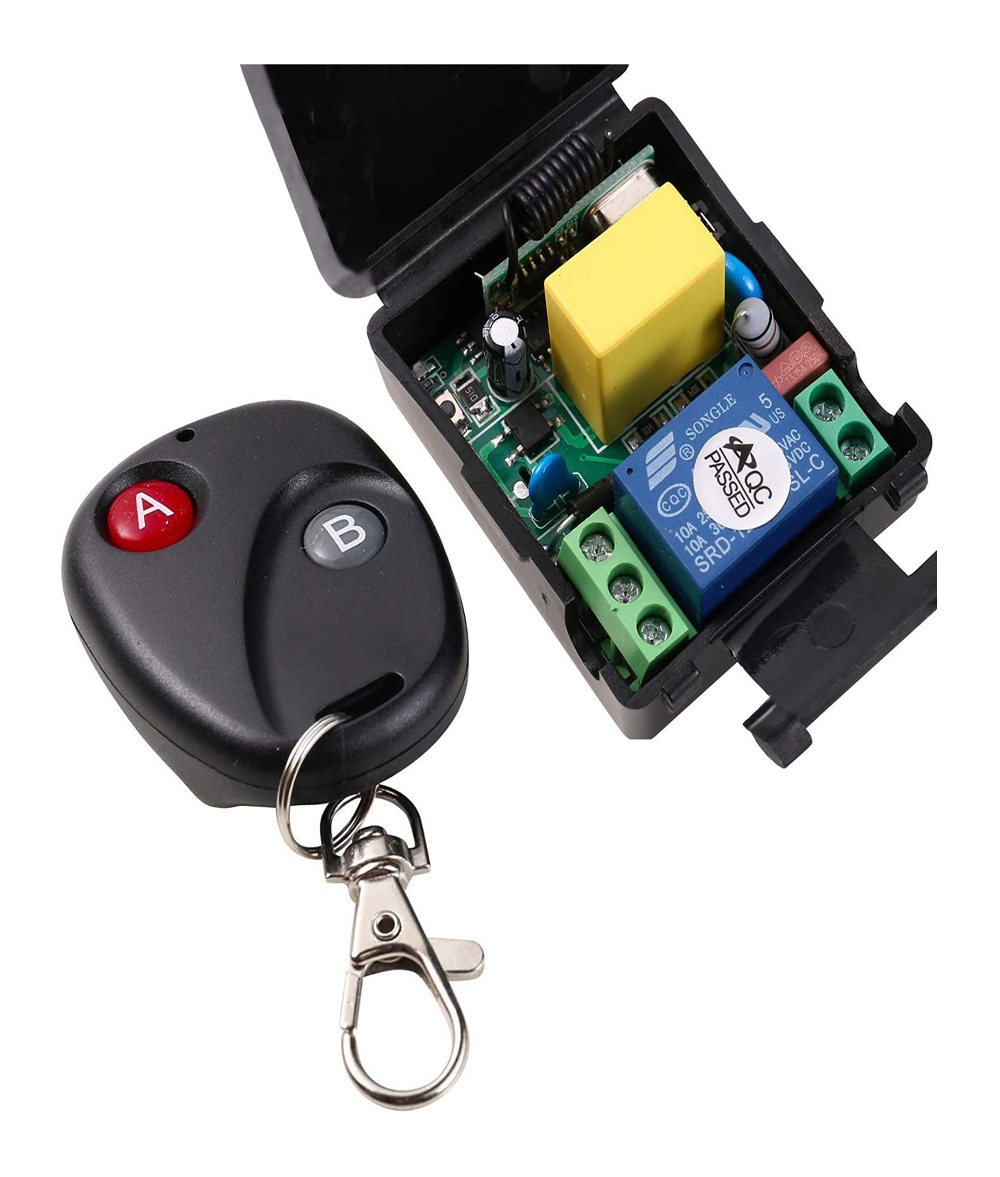

110VAC 1CH Wireless Remote Control Lighting Power Switch Transmitter + Receiver

110VAC 1CH Wireless Remote Control Lighting Power Switch Transmitter + Receiver

Features:

• Operating Frequency: 433MHZ
• Working Voltage: 110VAC
• This 110V 1CH remote control switch is with 10A relay, which can load large power appliances

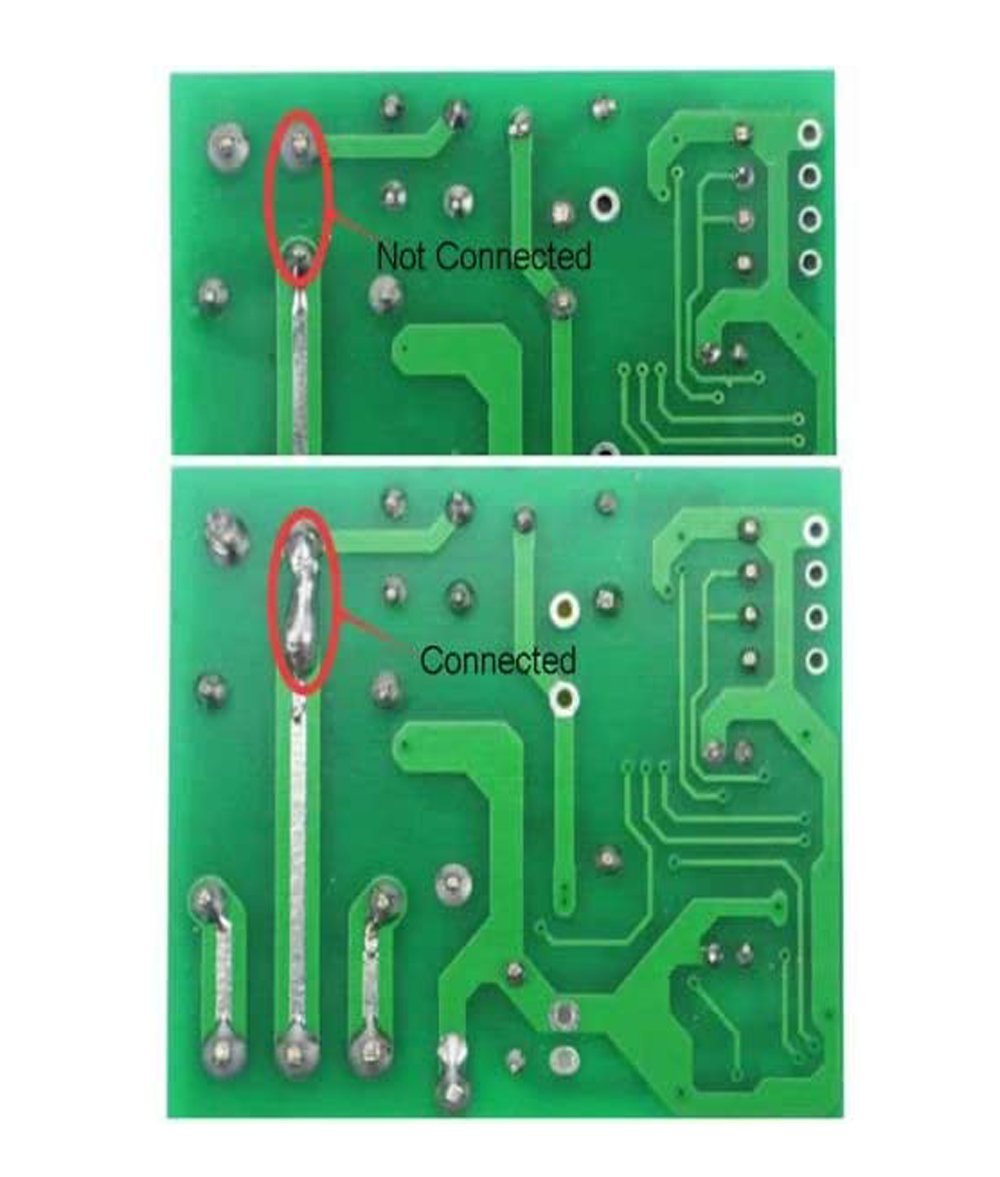

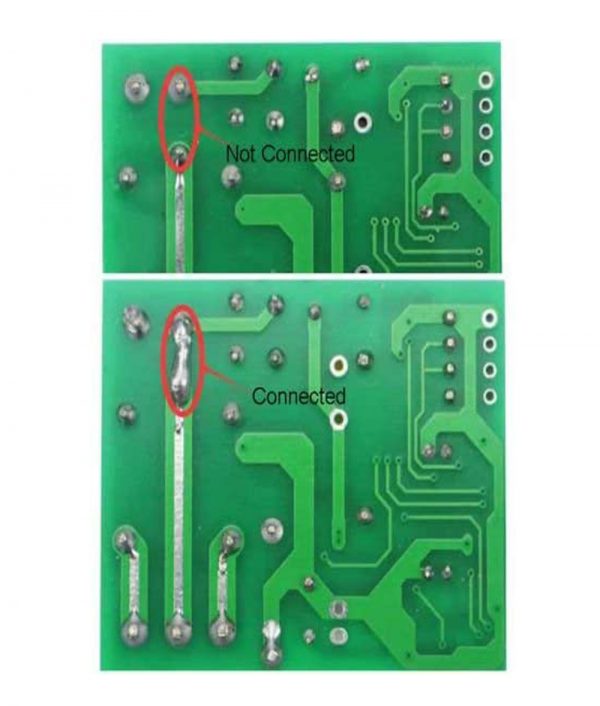

• Short circuit pad to achieve JOG, interlock, selflocking working mode.
• Can learn multiple remote control, and each remote can control mulitple switch, a switch can also be controlled by mulitple remote control.
• Widely used in lighting, electric doors/window, lifting equipment, lift control and security industries and other fields

Specifications:

• Working Voltage: 110VAC
• Working Temperature: -20℃~+60℃ / -4℉~+140℉
• Operating Frequency: 433MHZ
• Maximum load: ≤10A
• Weight: 0.037kg
• Size: 43×38.5x19mm / 1.69×1.52×0.75in

Instructions:

Operating Mode:

• JOG:Single relay will stay on only as long as corresponding remote key is pressed.
• Interlock: For each relay: press corresponding key for on (all others off).
• Self-locking: Press corresponding key for on, press same key again for off, each relay independently.

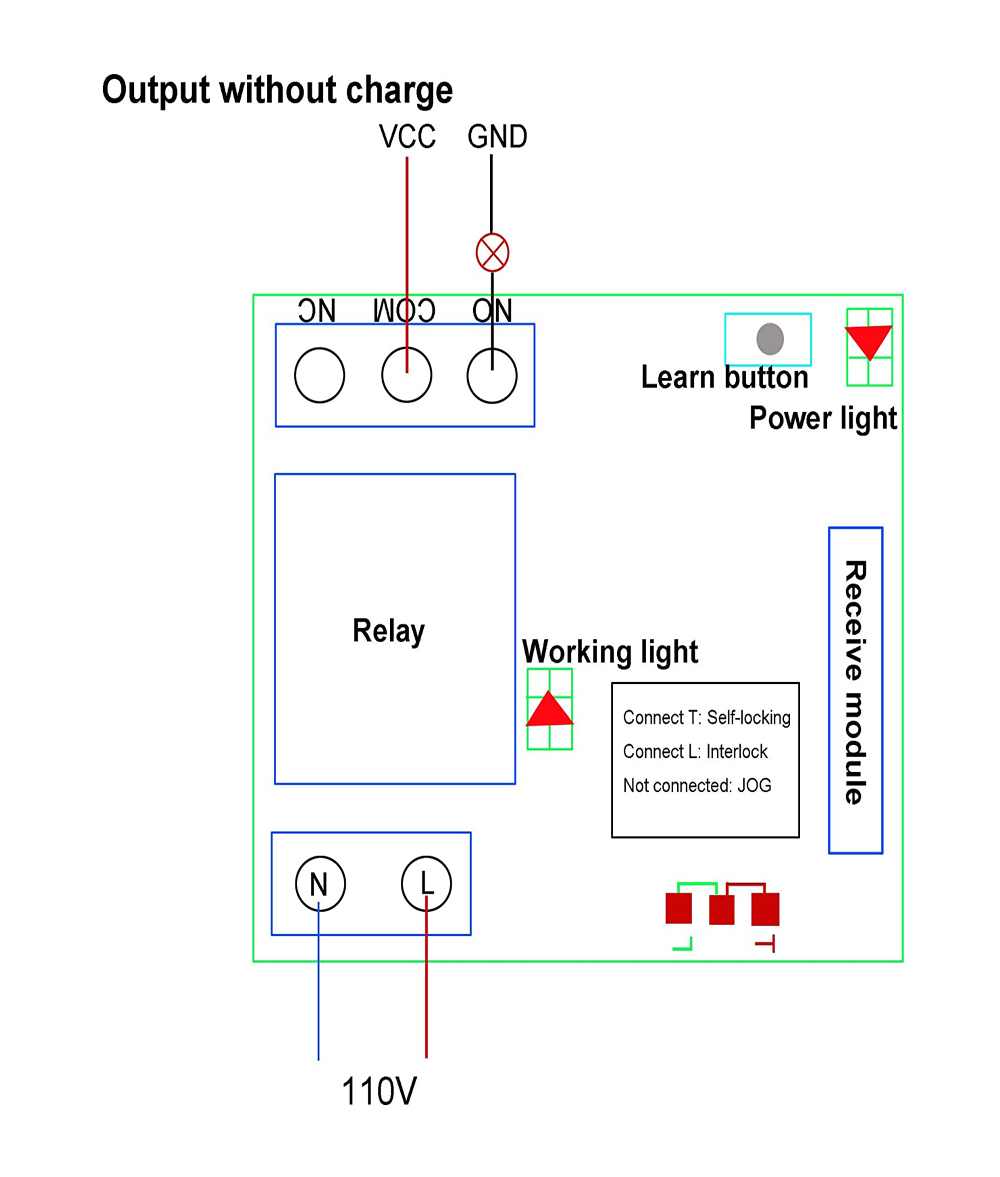

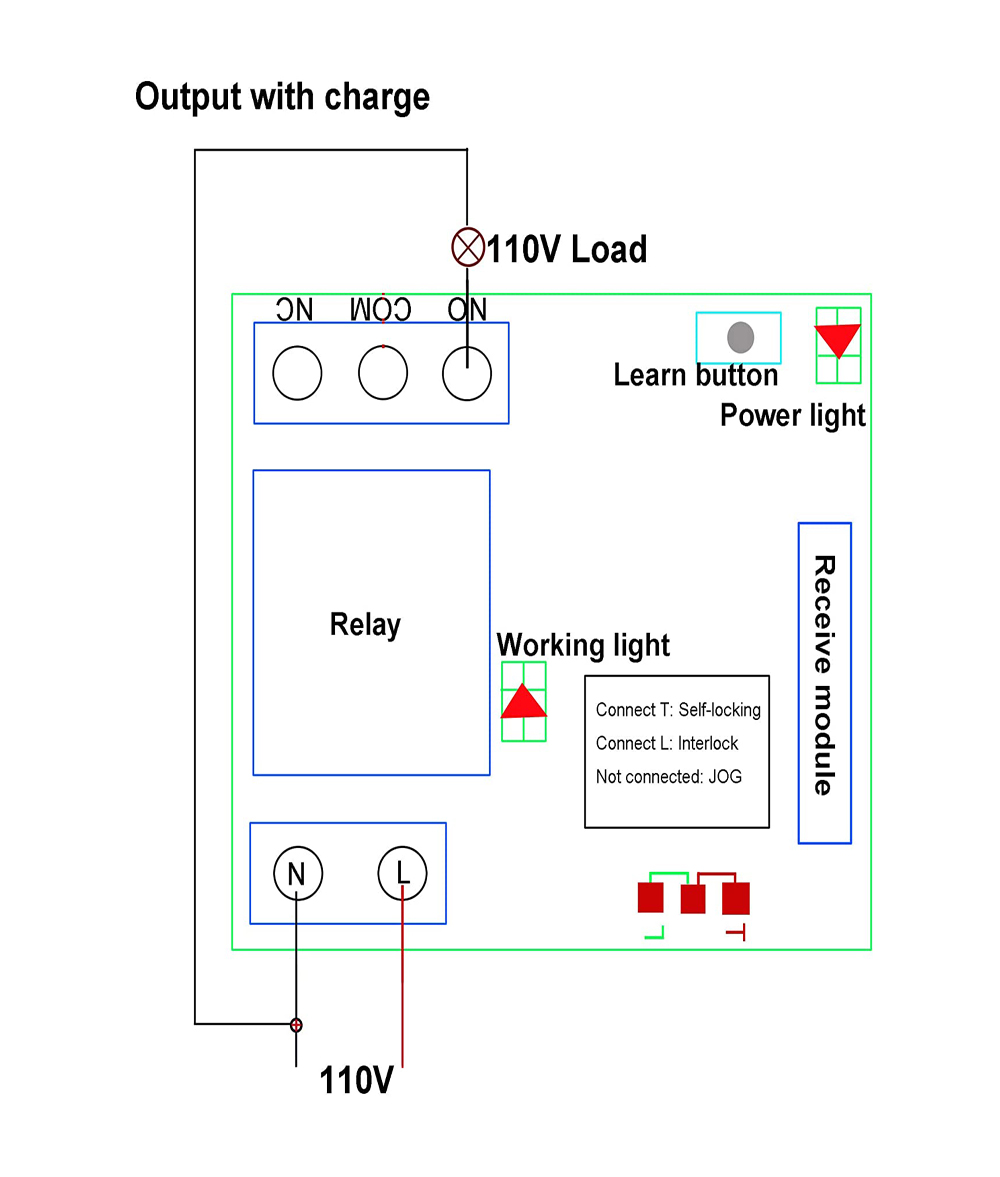

Program Mode in:

• Connect T: Self-locking
• Connect l: Interlock
• Not connected: JOG

Operating Method:

• Learning Code Method: Press the learn button on the controller, the indicator light goes off, it means to enter the learning state; Press the button down (about 2s) on the remote control (transmitter) which need to be learned, the indicator will flash 5 times, them will be on, indicating that the learning is successful
• Clear Code: press and hold the controller button, when the indicator light goes off, it will go back to on, indicating that the remove code is successful

Package:

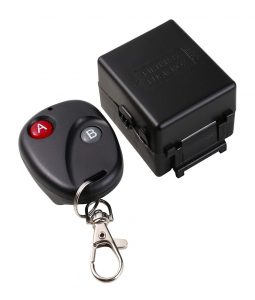

• 1 x Transmitter
• 1 x Receiver
