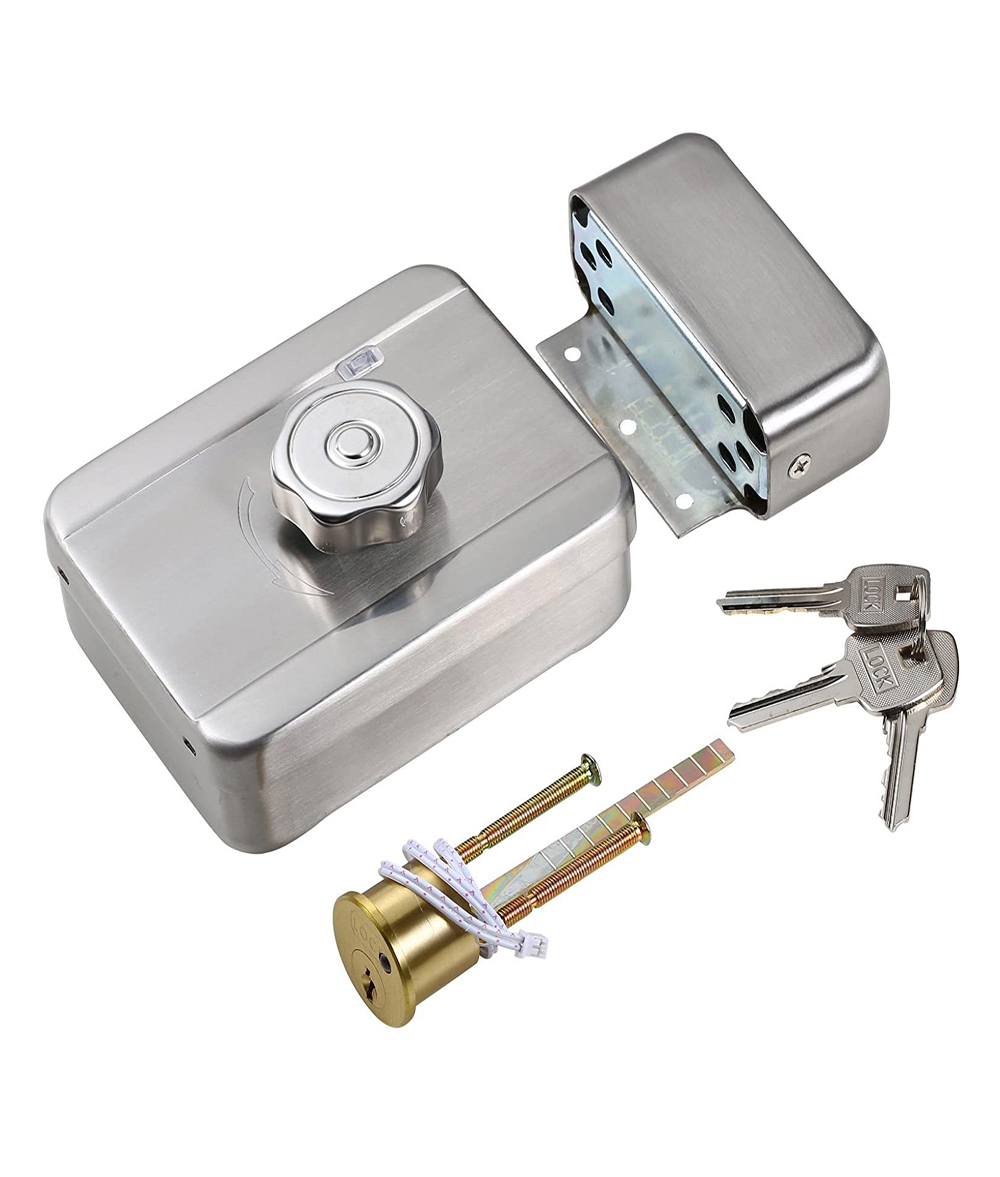

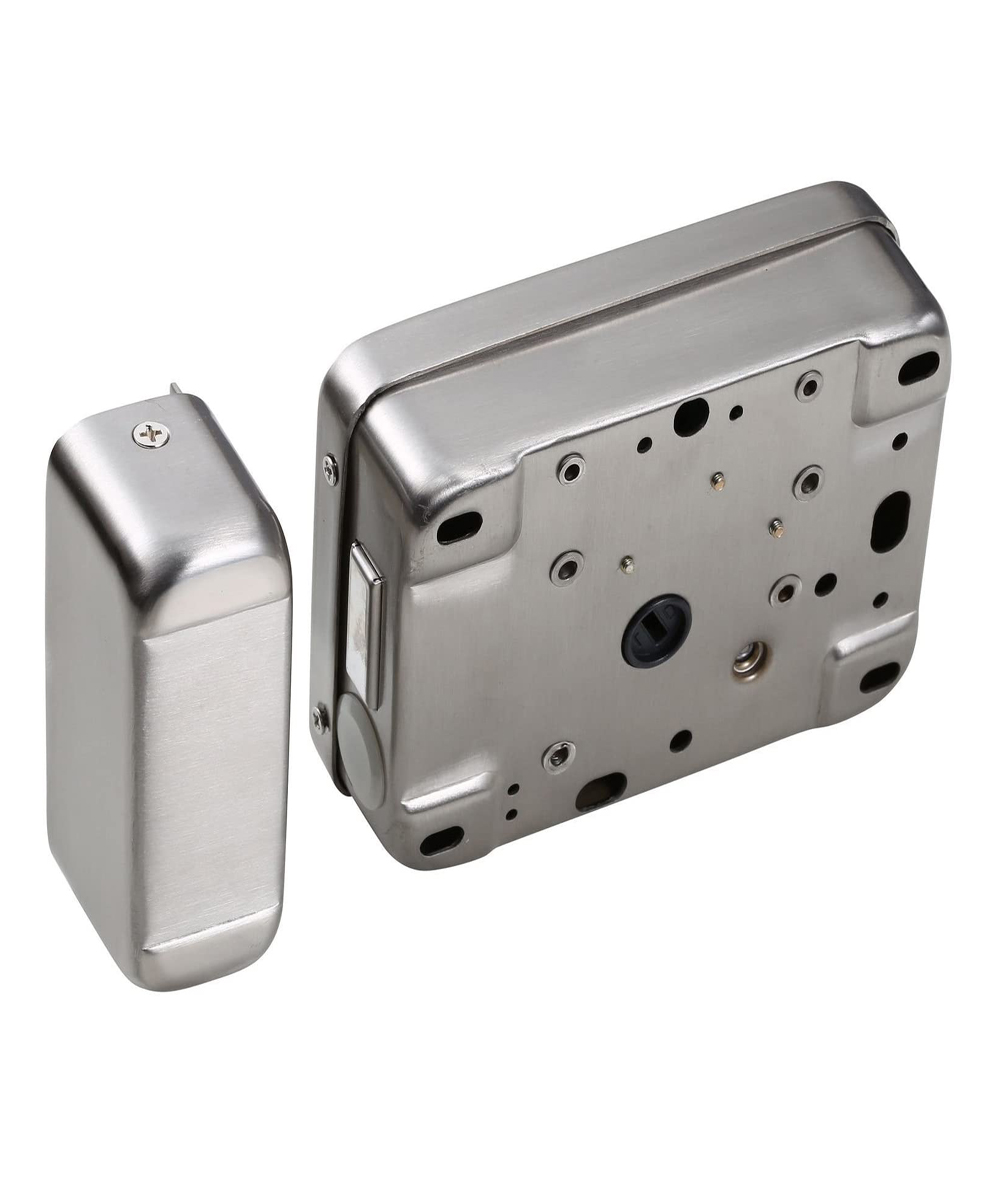

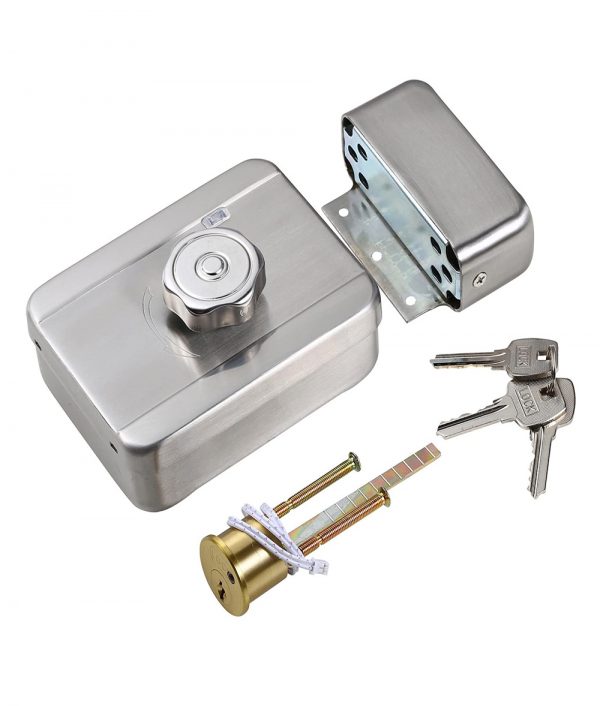

Safe Low Noise Intelligent Motor Electric Lock W/ Signal Self-Closing Lockable

Safe Low Noise Intelligent Motor Electric Lock W/ Signal Self-Closing Lockable

Features:

• The length of the lock tongue＞20mm,meet GA/T73-94 5.1.6B standard
• Can be compatible with building system of entrance guard system, etc
• Automatically detects the door status, automatic processing to open close the door
• Can be installed on the left door, right door, interior door, outside the door and other doors
• Mistakenly lock or unlock after no entry, the door automatically locked in around 9 seconds
• Voltage DC12V-DC18V, start current <350mA, standby current <25mA, unlock time 1S
• Long life (more than 500,000), on / off, high sensitivity about ON/OFF, low power consumption
• Intelligent motor electric locks (motor lock) .Adopts Stainless steel material.With the feature of signal output.with Auto-closing lockable, door status auto-detect feature and automatically corrects misuse, high sensitivity sensor, low noise lock, safe and reliable.

Specifications:

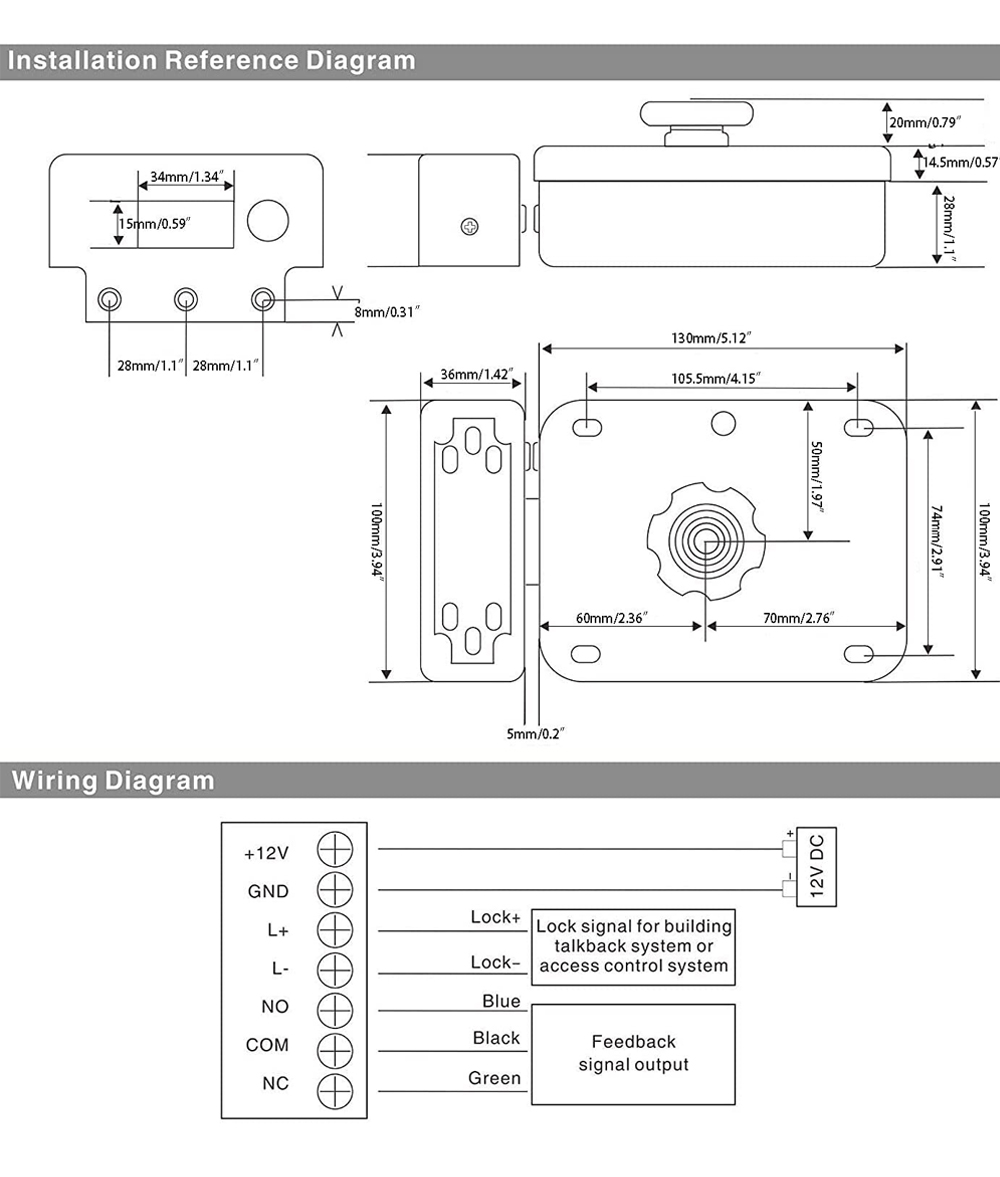

• Lock Size: 130Lx100Wx61.25D(mm) / 5.12Lx3.94Wx2.41D(in)
• Fail Safe: Locked when energized
• Power supply: DC12V±10%
• Starting current: 350mA
• Working current: 25mA
• Temperature: -20℃~+50℃ / -4℉~122℉
• Lock tongue length: 20mm / 0.79in
• Material: stainless steel, surface drawing
• Scope of application: widely used in intelligent community, factory, warehouse, base station, and building intercom, intelligent access control system supporting the use of
• Weight: 1.46Kg / 3.22lb

Note:

• The electric lock is not fire locks, absolutely not allowed to be installed on the fire escape door, or peril.
• Installation of electric lock is not allowed to fire welding, as a result of failure caused by fire welding power locks, the Company should be no warranty.

Package:

• 1 x Intelligent electric lock
