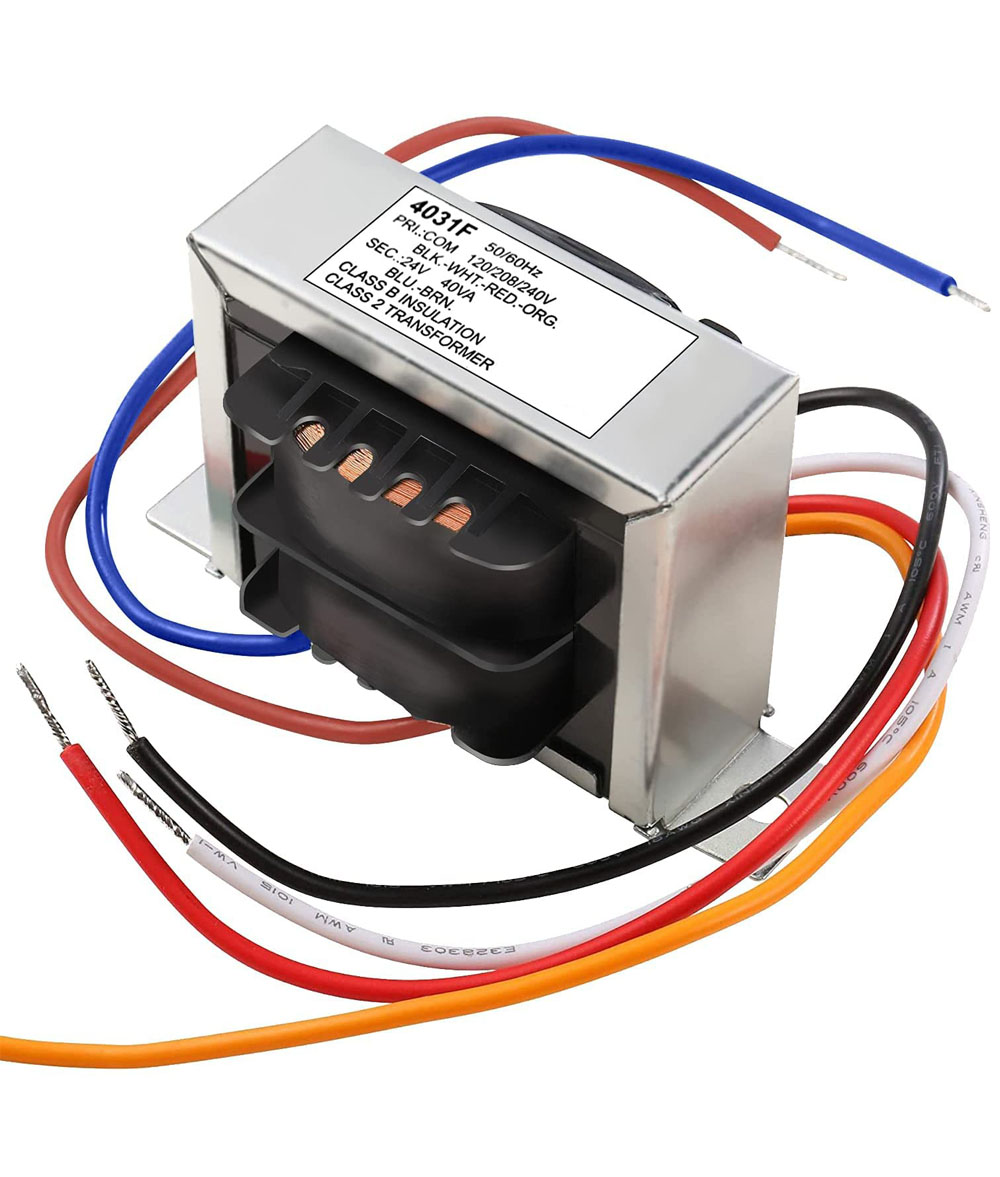

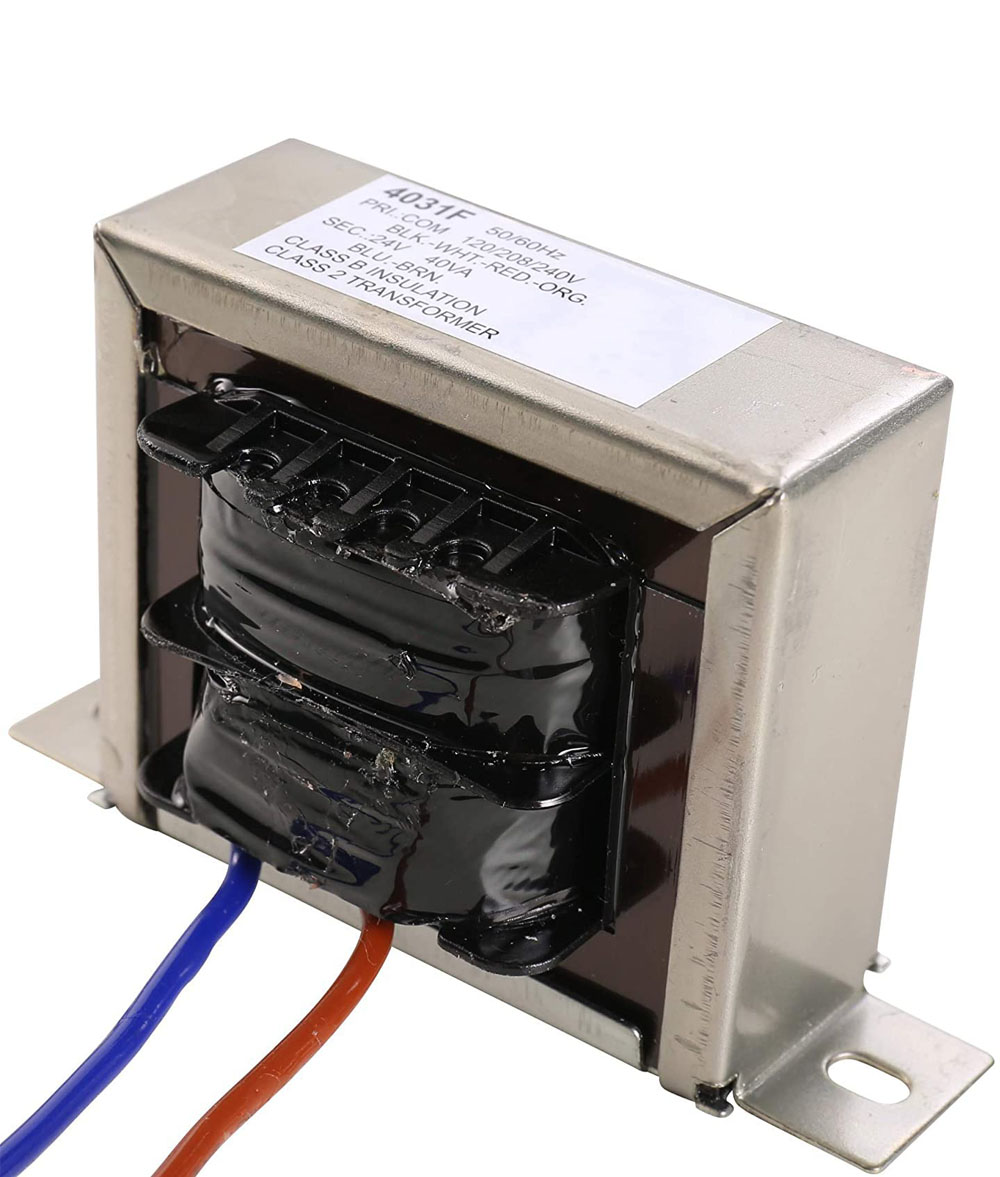

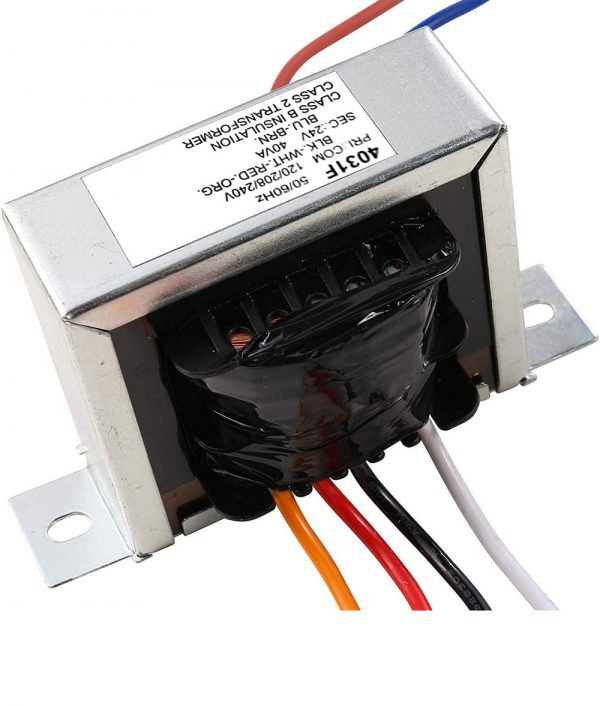

Class 2 Control Transformer Foot Mount 40VA Primary Voltage 120, 208, 240V Secondary 24V

Class 2 Control Transformer Foot Mount 40VA Primary Voltage 120, 208, 240V Secondary 24V

Features:

• SAFE USE: This 24 volt transformer offers reliable performance
• Primary Voltage: 120VAC/208VAC/240VAC
• Mounting Configuration: 2 Foot
• Universal Replacement for Most Foot Mounted Furnace Transformers
• Class 2 rated, inherently limited transformer’s easily mount for use on low voltage control circuits.
• Designed for over 60,000 hours continuous use under normal load conditions.

Specifications:

• Mounting Configuration: 2 Foot
• Primary Voltage: 120/208/240VAC
• Secondary Voltage: 24VAC
• VA Rating: 40VA
• Over Current Protection: Inherently Limited
• Operating Temperature: -40 to 140° F
• MTBF: 100,000 Hours @ 77°F

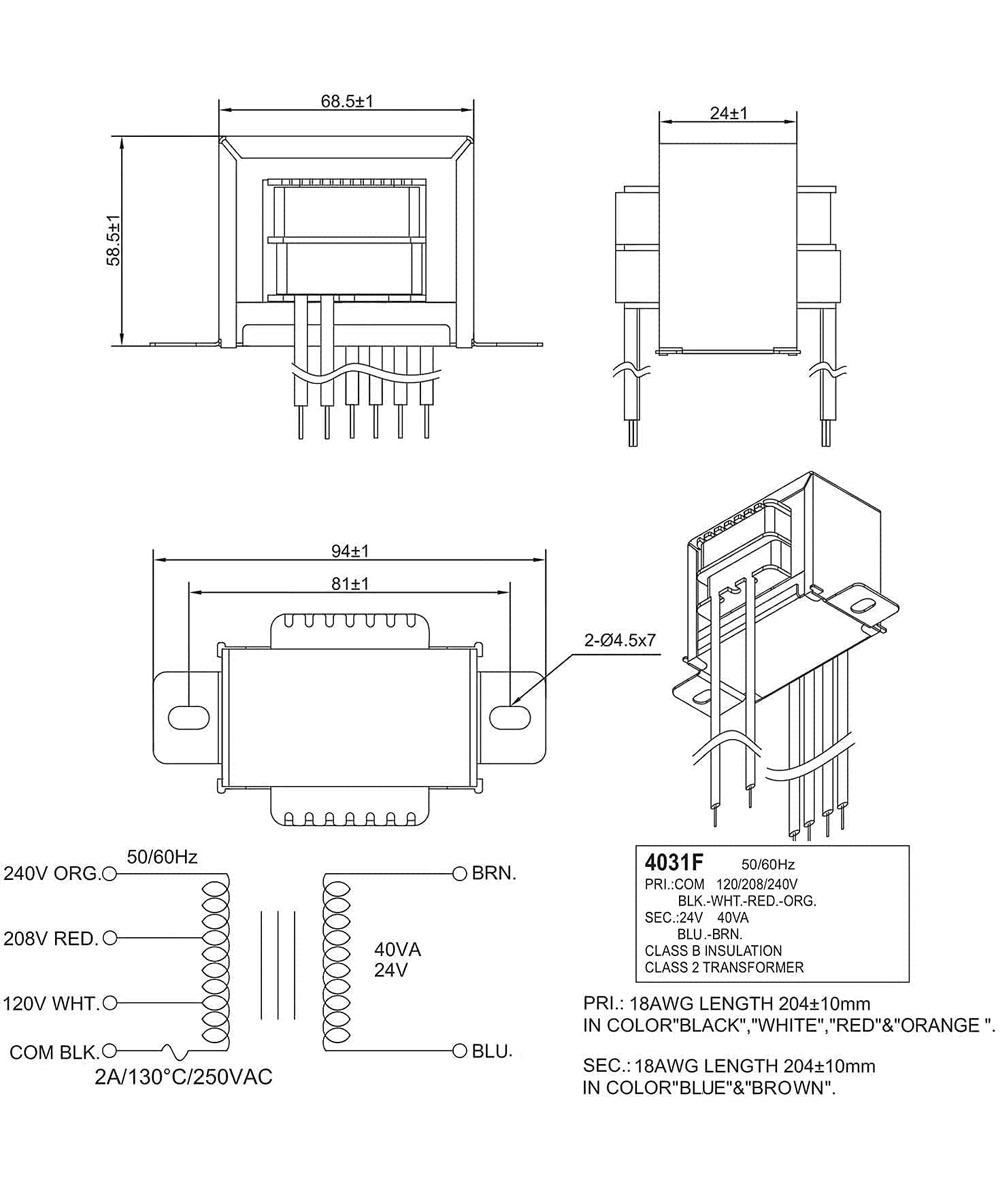

• PRI.: 18AWG Length 204mm in color “black”,”white”,”red”,”orange” (The black wire connects to the live wire.)
• SED: 18AWG length 204mm in color “red” & “green”
• Product Weight: 710g

Package:

• 1 x Control Transformer (Wire nuts not included)
