Class 2 Transformer 40VA Rating, 220VAC Input to 12VAC Output

Class 2 Transformer 40VA Rating, 220VAC Input to 12VAC Output

Features:

• Mounting Configuration: 2 Foot
• 220 Volt Primary – 12 Volt Secondary – 40VA
• PRI.: 18AWG Length 230mm in color “red & red”; SEC: 18AWG length 120mm in color “black & black”.

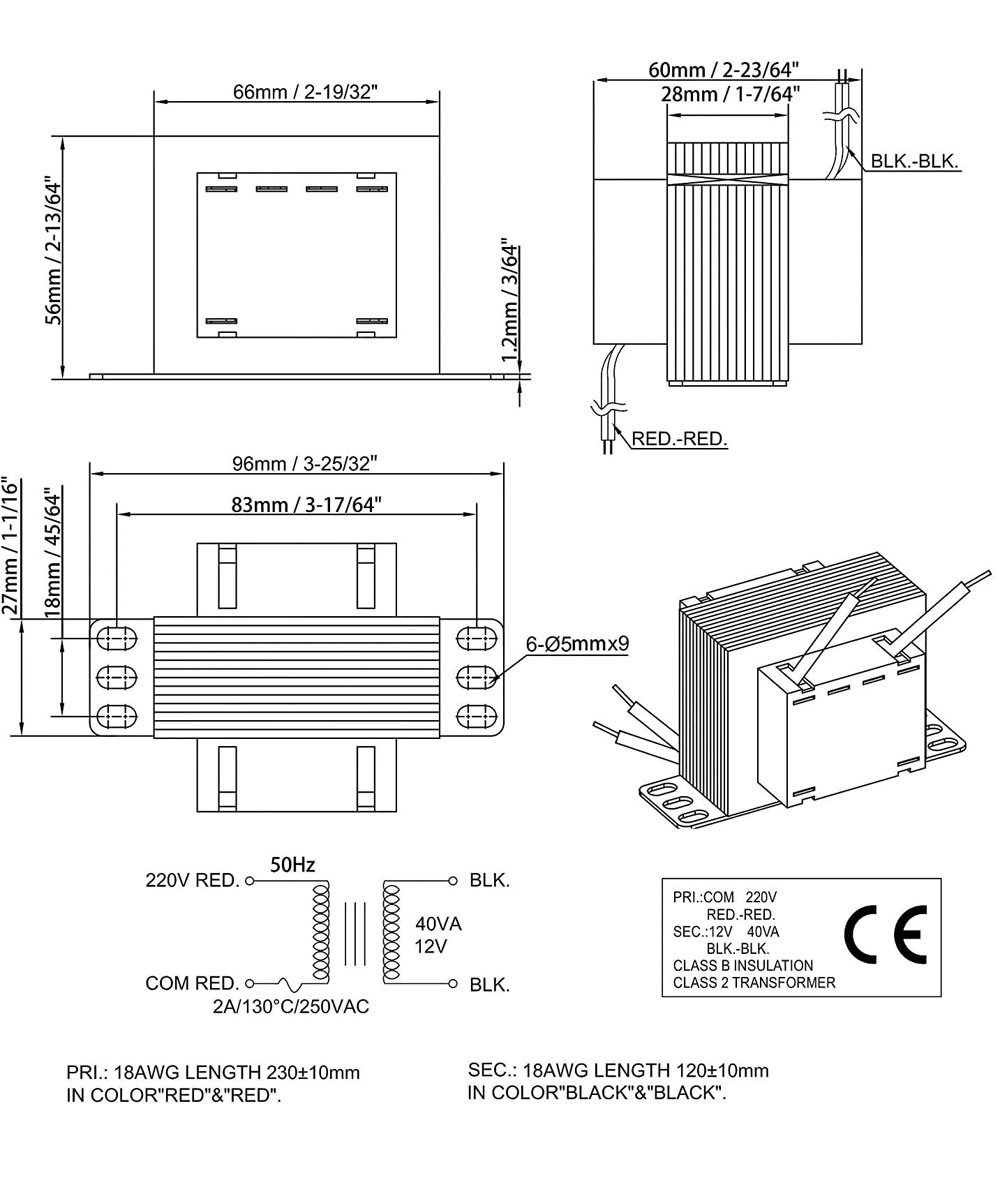

• Universal Replacement for Most Foot Mounted Furnace Transformers. The two foot mounting holes are spaced 3-17/64” on center.
• SAFE USE: This 12 volt transformer offers reliable performance

Specifications:

• Mounting Configuration: 2 Foot
• Input Voltage: 220VAC / 50Hz
• Output Voltage: 12VAC
• VA Rating: 40VA
• Over Current Protection: Inherently Limited
• Protective Device: None, Enclosure Style
• PRI.: 18AWG Length 230mm in color “red & red”
• SEC: 18AWG length 120mm in color “black & black”
• Operating Temperature: -40 to 140° F
• MTBF: 100,000 Hours @ 77°F
• Construction: Split-Bobbin
• Net Weight: 870g / 1.9lb

Package:

• 1 x Transformer (Wire nuts not included)
