20 AWG Gauge 6 Conductor Bare Copper Unshielded Alarm Security Burglar Cable Wire (655ft)

20 AWG Gauge 6 Conductor Bare Copper Unshielded Alarm Security Burglar Cable Wire (655ft)

Features:

• Conductor Material: Bare Copper (high grade)
• Conductor Area CSA (per strand): 0.5mm² ／20 AWG
• Commonly used in security/CCTV & Access control installations. Alarm cable can be used in a wide variety of applications such as; connecting to PIR sensors, door/window contacts, linking control panels together and much more.
• Our quality stranded cable has copper cores and a durable, yet flexible PVC outer insulation making it ideal for any low voltage installations
• Voltage drop should be taken into consideration before installing to ensure suitability particularly if you are going over a long distance at a high current.
• Apply to security monitoring and alarm system, building intercom system, for electrical equipment internal line control, for signal control of computer, instrument, electronic equipment and automation equipment.
• 0.5mm² RVV 300/300V square meter copper wire cable extend RVV wire.

Specifications:

• No. of Cores: 6
• Nominal area: 0.5mm² / 20 AWG
• Structure of conductor (No./mm): 23/0.15

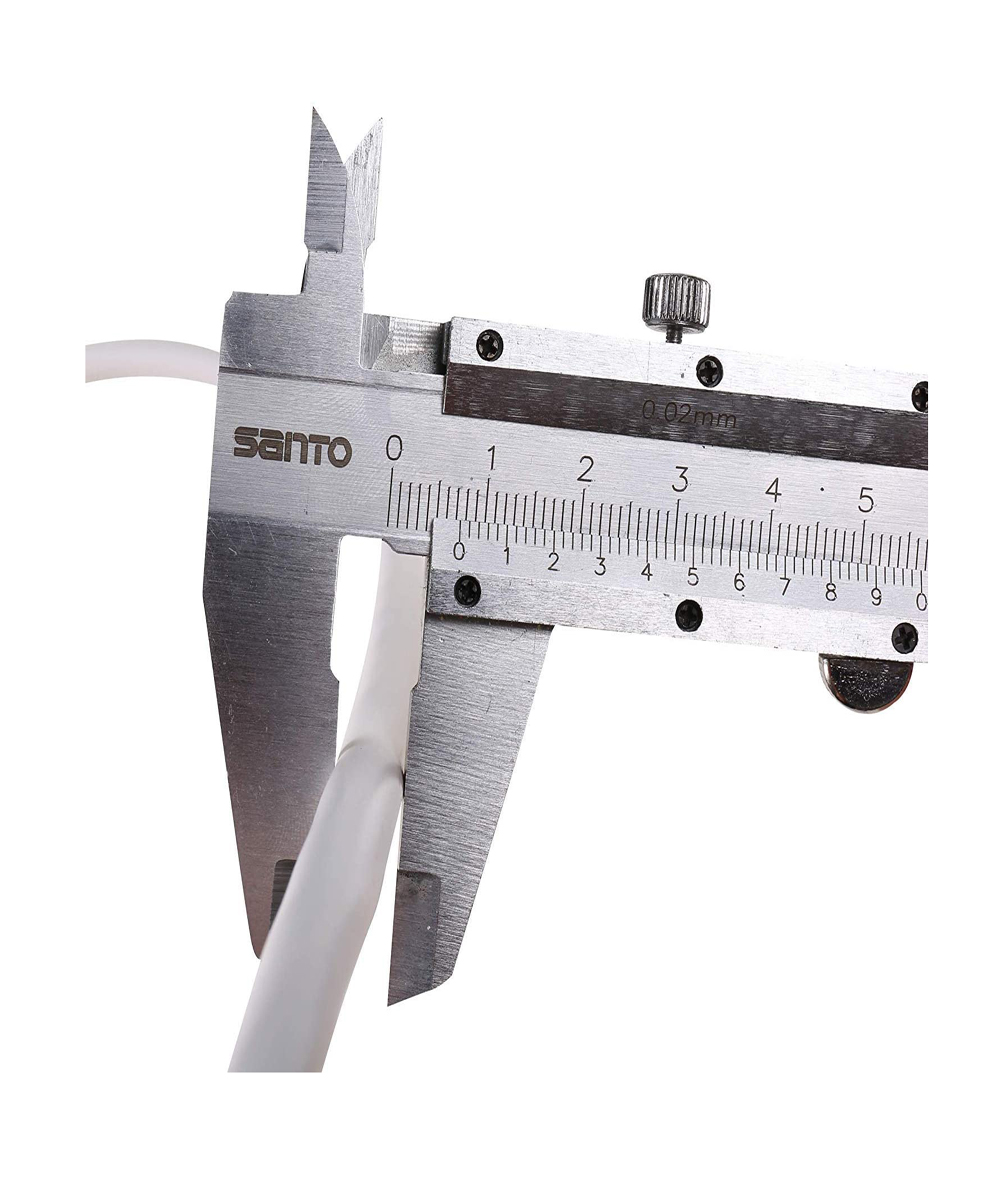

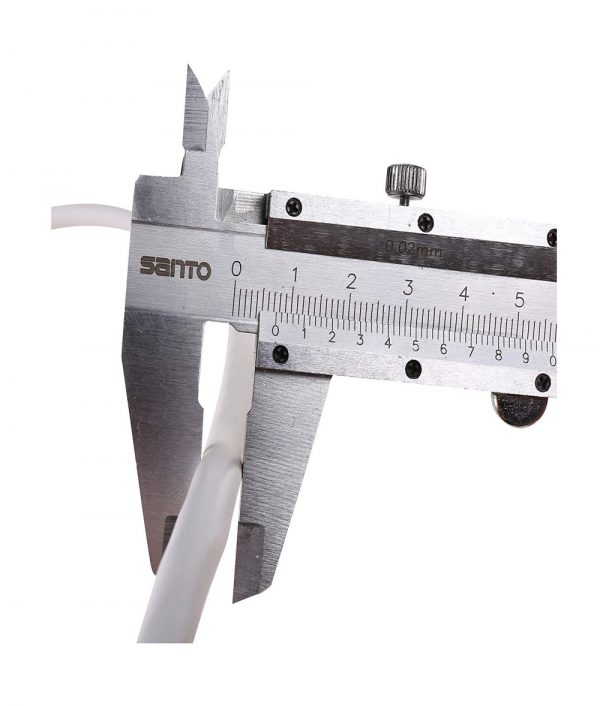

• Lower limit of overall diameter: 6.2mm
• Upper limit of overall diameter: 7.8mm
• Maximum electrical resistance at 20C Ω/KM: 48.2
• Minimum insulation resistance at 70C MΩ.KM: 0.013
• Core Colours: White/Brown/Grey/Red/Blue/Black
• Conductor Material: Bare Copper (high grade)
• PVC Jacket Colour: White
• Length: 655ft
• Applications: Access control panels, security panels, card readers, sensors, keypads, power, microphones, speakers, alarm system

Package:

• 1 x 655ft copper wire
