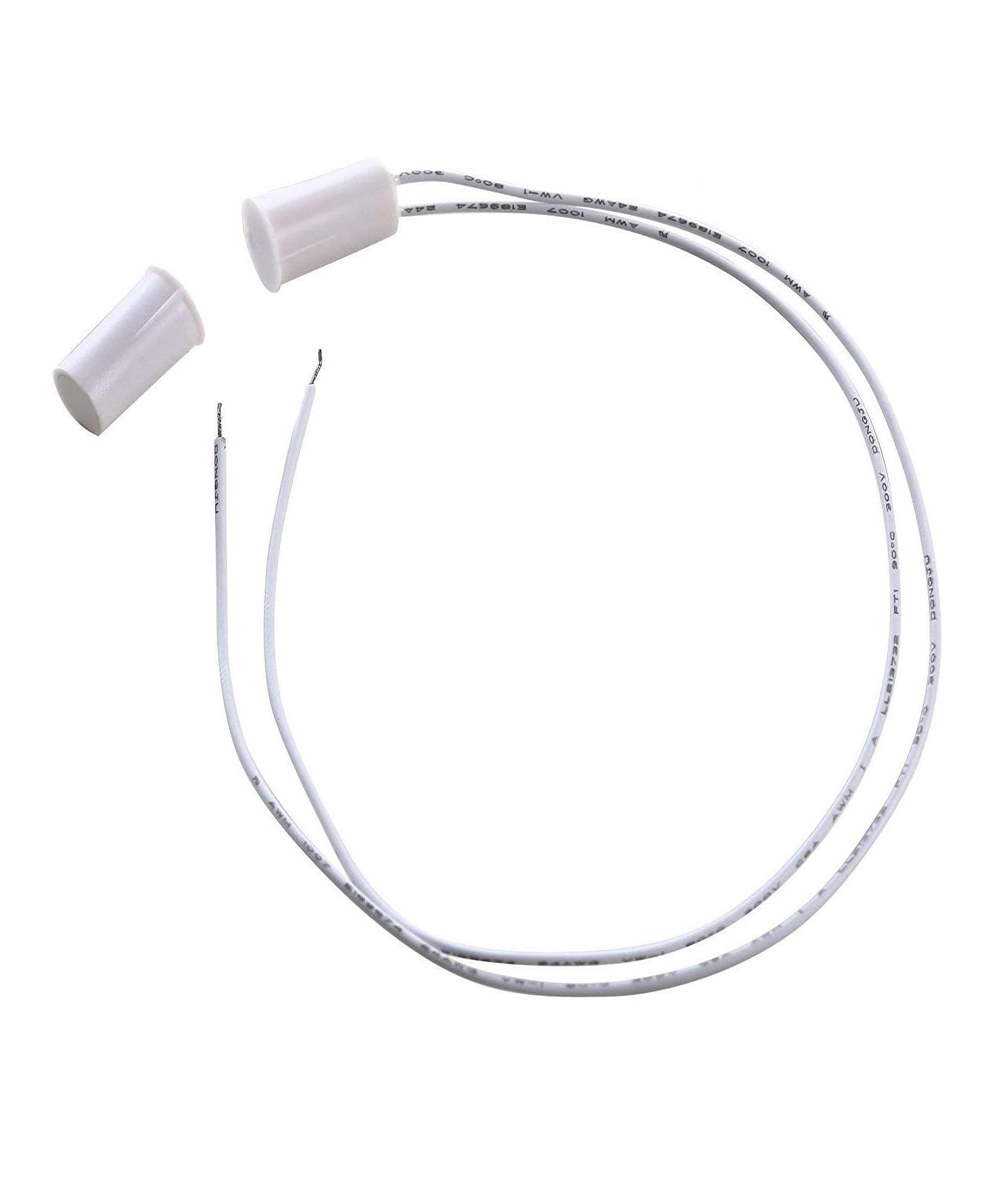

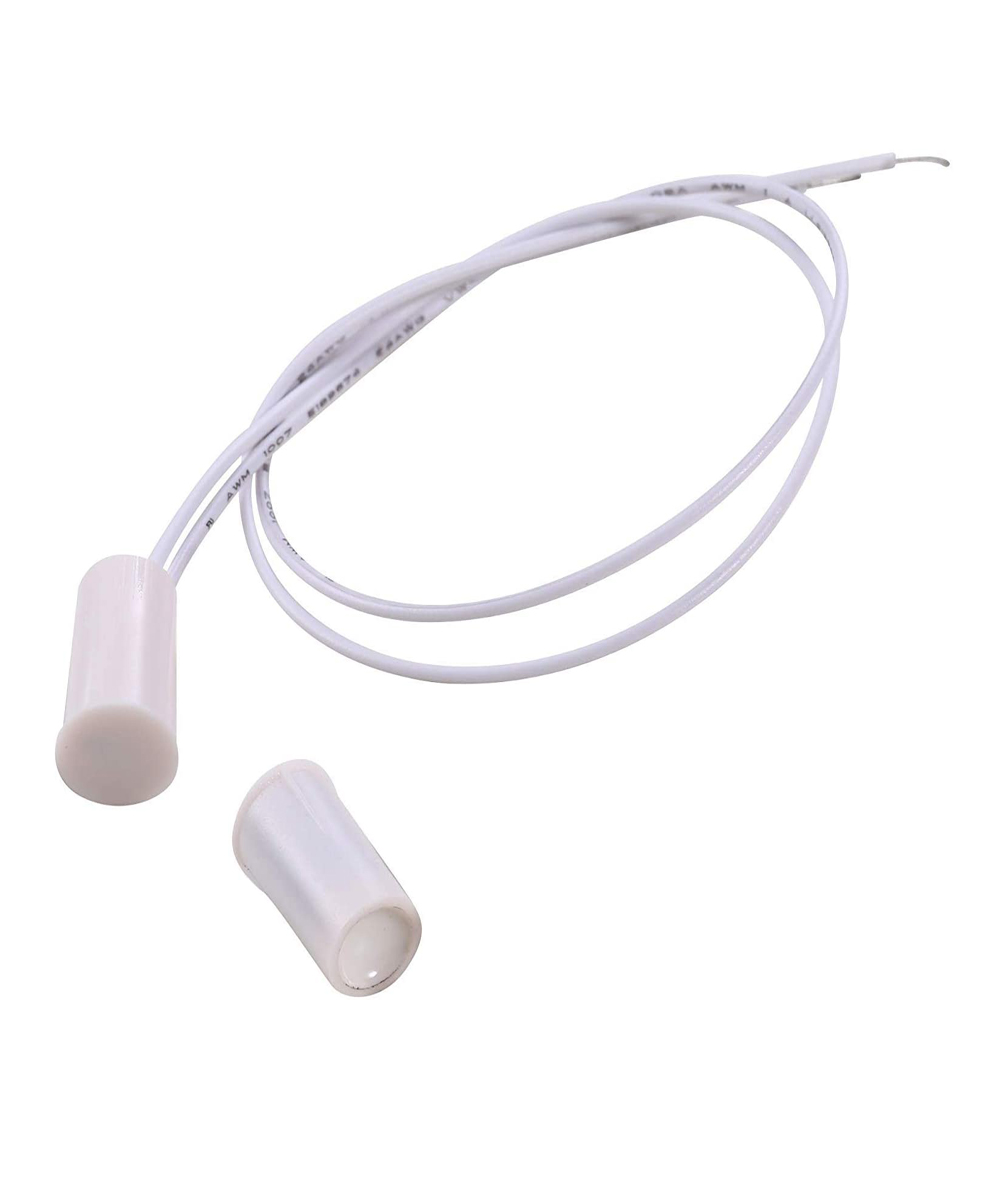

NC Type Recessed Mounted Mortise Cylindrical Wooden Door Window Magnetic Contact Sensor Detector Reed Switch (Pack of 5)

NC Type Recessed Mounted Mortise Cylindrical Wooden Door Window Magnetic Contact Sensor Detector Reed Switch (Pack of 5)

Features:

• Wired wooden Door Sensor
• Recessed Mounted
• Materical: ABS housing
• This Contact Works with Any Access Control or Burglar Alarm System Available
• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).

Specifications:

• NC/COM
• Wired wooden Door Sensor
• Housing material: Plastic
• Leads with 1007UL #24AWG 260mm/10.24in
• Max. Curent: 0.5A
• Max. Voltage: 100VDC
• Max. Power: 10W
• Operating Distance: 15-25mm / 0.59-0.98in
• Cable length: : 250mm / 9.84in
• Switch size (Ø x H): 11×17.5mm / 0.43×0.67in
• Idea for wooden door or window
• Normally closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
• Detecting door gap by opening, Be used to detect door if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility

Package:

• 5 x wired door contact
