No Touch Exit Button Switch Infrared Sensor for Door Access Control

No Touch Exit Button Switch Infrared Sensor for Door Access Control

Features

• Highly sensitive infrared for quick response.
• Using infrared modulation and demodulation, it is not easy to be misjudged by interference.

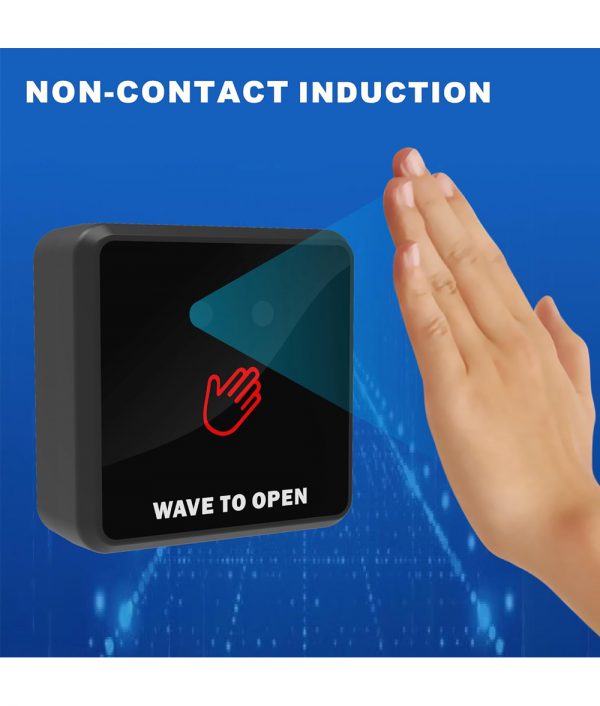

• Non-contact induction with hands or objects, clean and hygienic.

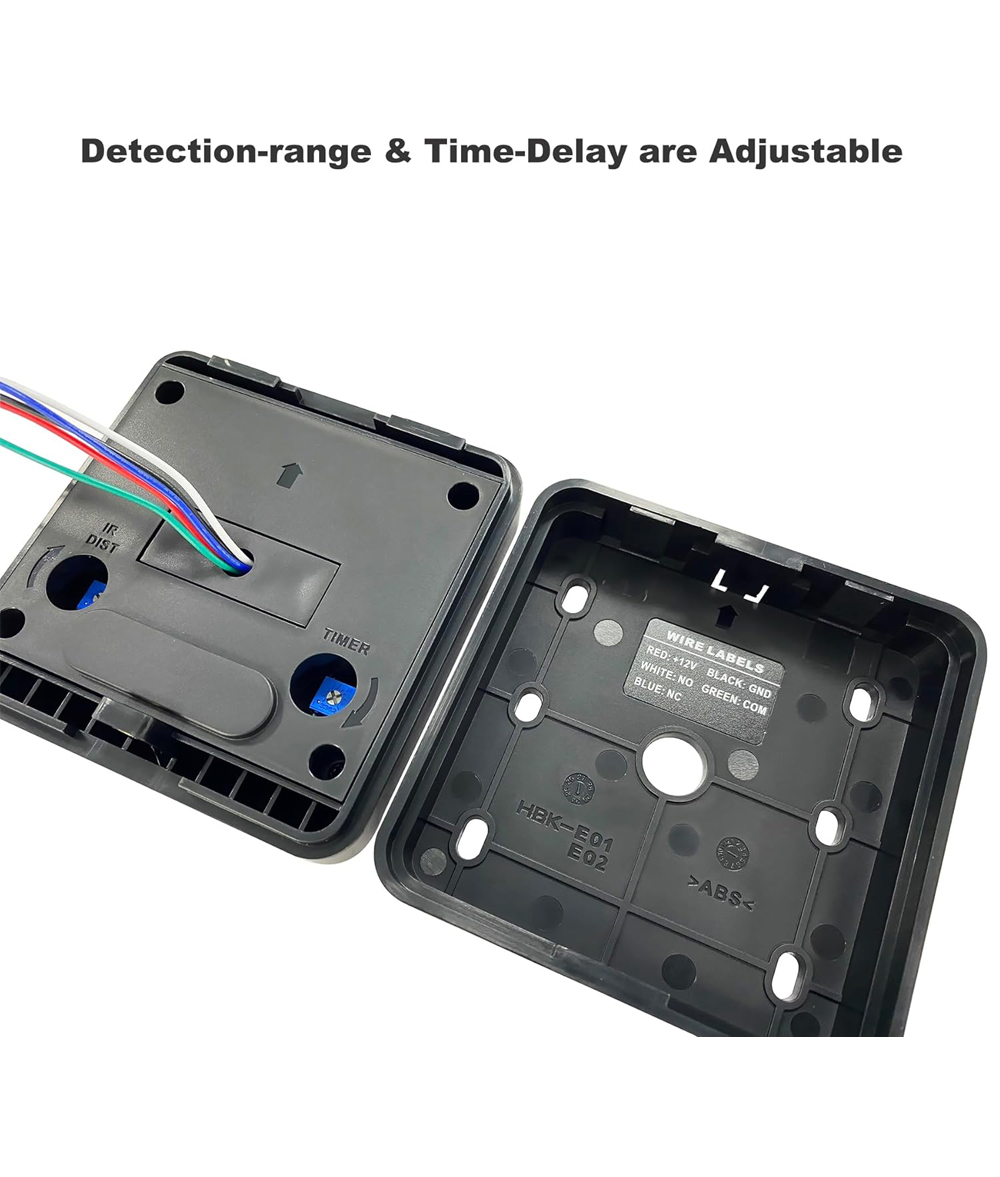

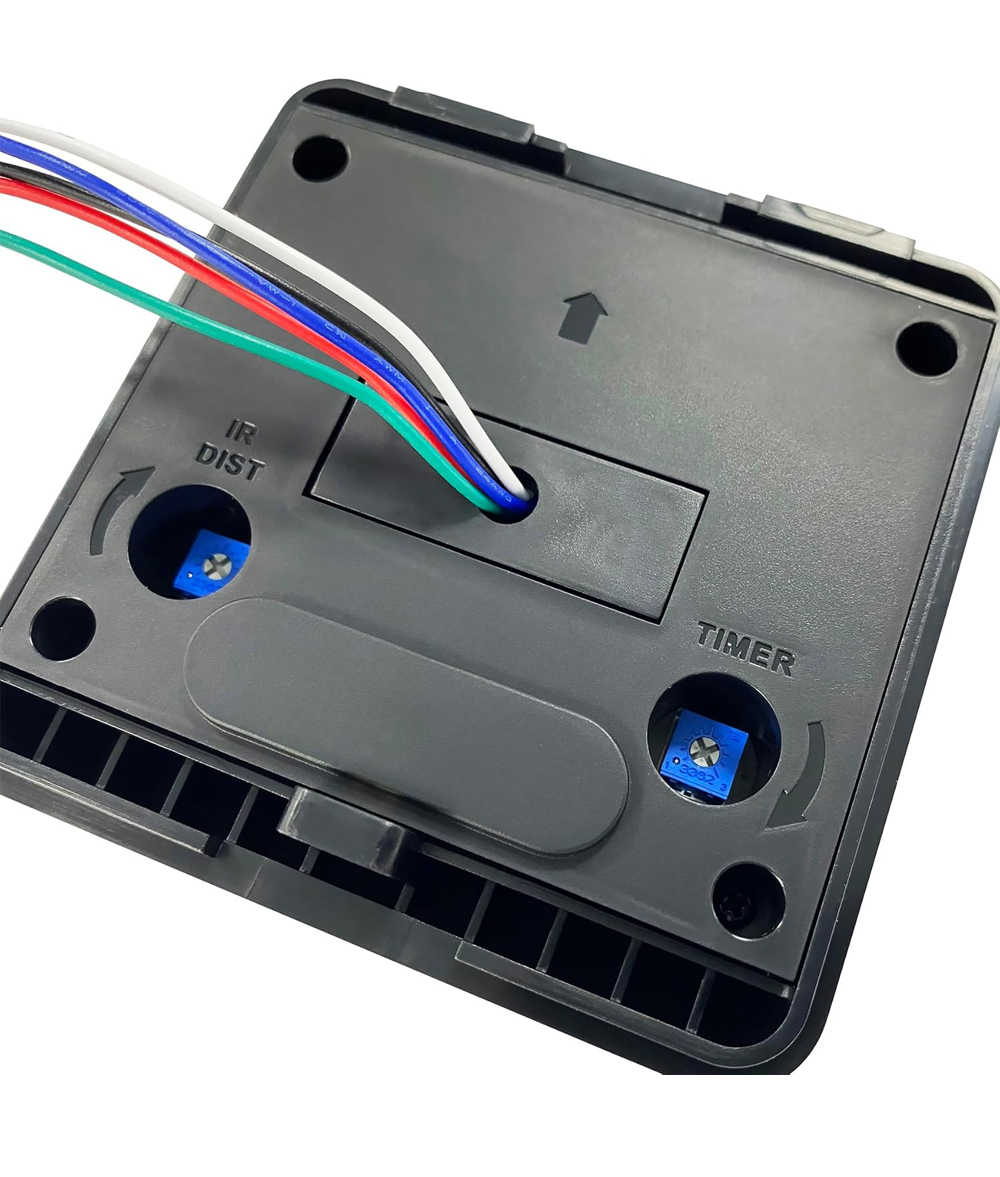

• The induction distance is adjustable from 25/64″~11-13/16″ [1-30cm] for different occasions.
• The time delay is adjustable from 0-15 seconds.
• PC panel and special bottom box for easy installation in a varirty of situations.
• Suitable for use in buildings, residential communities, offices, hotels, hospitals, sports venues, and other places.

Specifications

• Working Voltage: 12VDC
• Operating Curren: ≤60mA
• Output Contac: NO/NC/COM
• Mechanical Life: 500,000 tests
• Time Delay: 0-15s (adjustable)
• Induction Distance 25/64″~11-13/16″ [1-30cm] (adjustable)
• Infrared Modulation Frequenc: 38KHz
• Operating Humidity: 0%~95%RH
• Operating Temperature: 22℉~140℉
• LED Indicator: Red—Standby, Green—Operation
• Enclosure Material: ABS
• Panel Material: PC
• Dimensions: 3-25/64″x3-25/64″x1-13/32″ [86x86x35.9mm]
• Product Weight: 5.29oz [150g]
