HBK-R01+T01 | 433MHz 12VDC Remote Control with DC Power Connector Specially Applied to Access Control Lock

HBK-R01+T01 433MHz 12VDC Remote Control with DC Power Connector Specially Applied to Access Control Lock



Features:

• The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164 feet.
• 0/5/10 seconds autolock time delay adjustable, default is 5 seconds.
• Working Mode: Momentary/Toggle
• Frequency: 433MHz; DC Encoding Type: Learning code
• Attention: Specialized for the access control lock which cannot be applied in other fields.

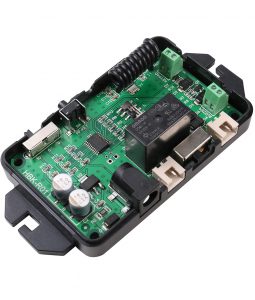

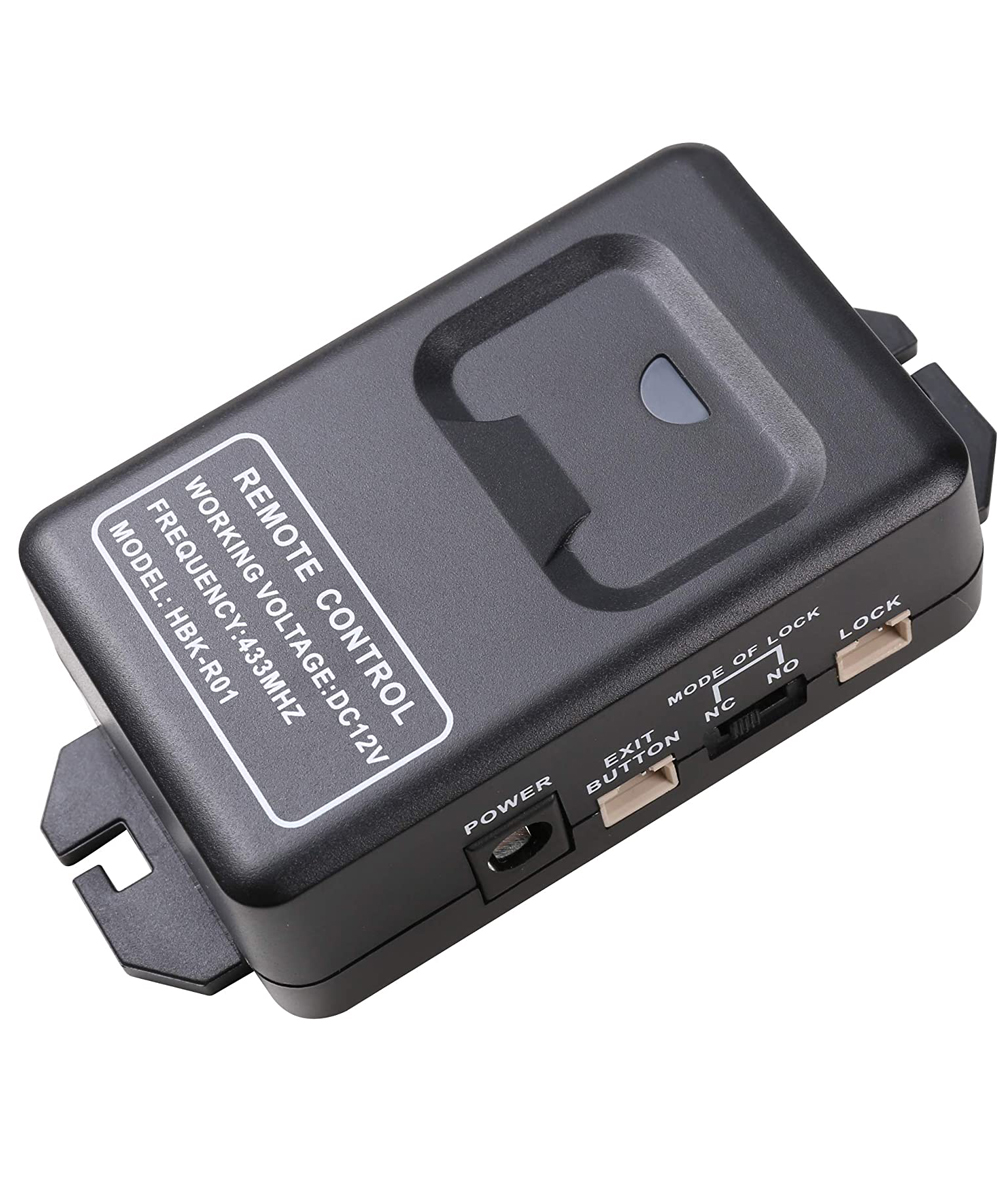

Receiver:

• Voltage: 12VDC
• Frequency: 433MHz
• RF channels: One
• DC Encoding Type: Learning code
• No. of Remotes that are able to connect to one Receiver: Up to 40
• Firing Range: 164 feet (open) in theory, 15%-30% in reality
• Adjustable Locking Delay: 0/5/10sec
• Built-in DC power connector, wiring easy
• Working Mode: Momentary / Toggle

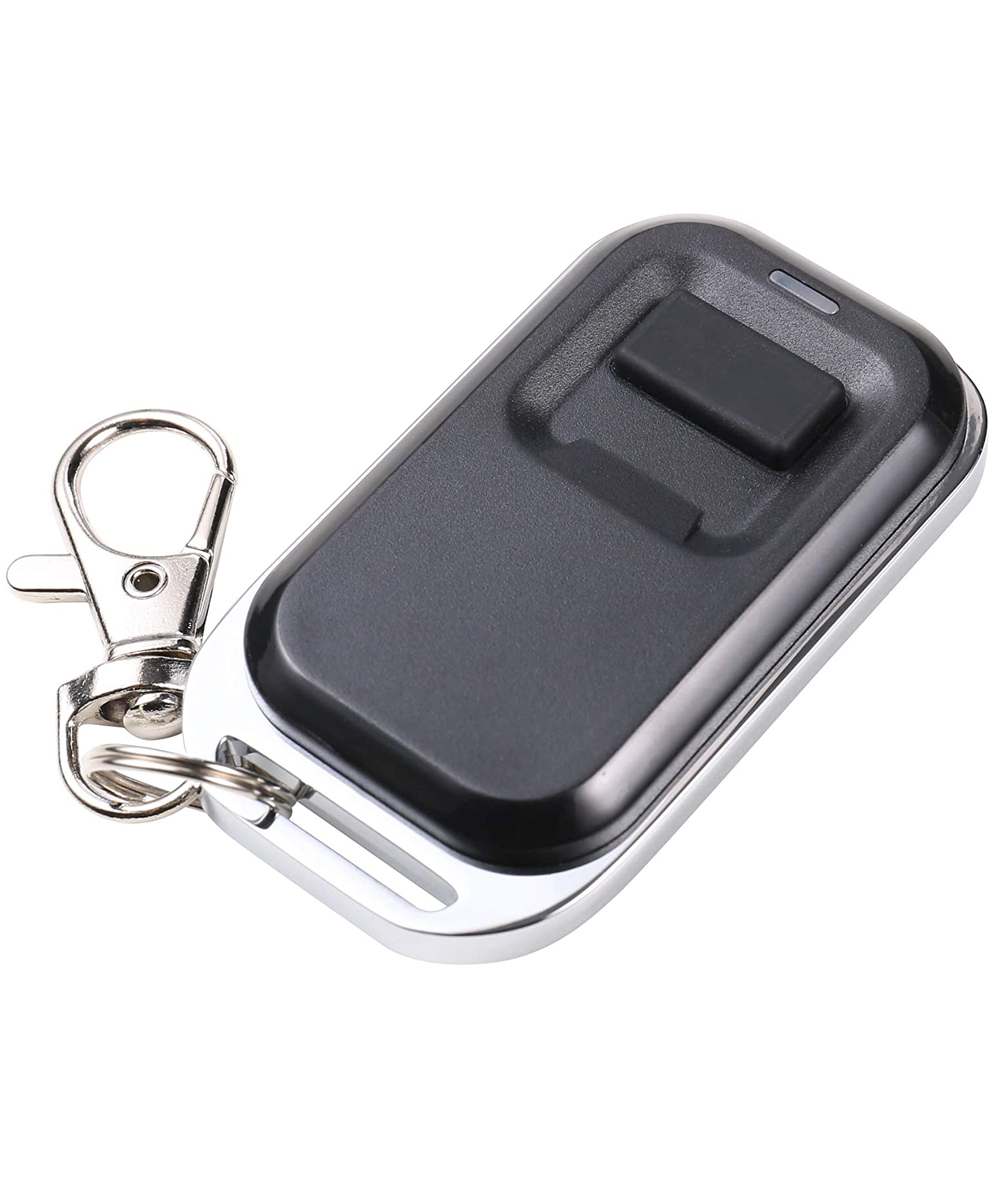

Transmitter:

• Working voltage: 6VDC (Built-in button battery)
• Operating Current: 8ma
• Powered by: 2pcs CR2016/3V batteries (Included)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHZ
• Key: 1 Key
• Emission Distance: 20-50m / 65-160ft (Open area)
• EncodingType: Fixed code
• Case material: PC+ABS



12V Power Adapter:

• Type: 12V/1A Power Supply Wall Charger
• Input: AC100V-240V 50/60Hz
• Max Output: DC12V / 1.2A (1200mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5 X 2.1 mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g / 2.3oz
• Certificate: FCC

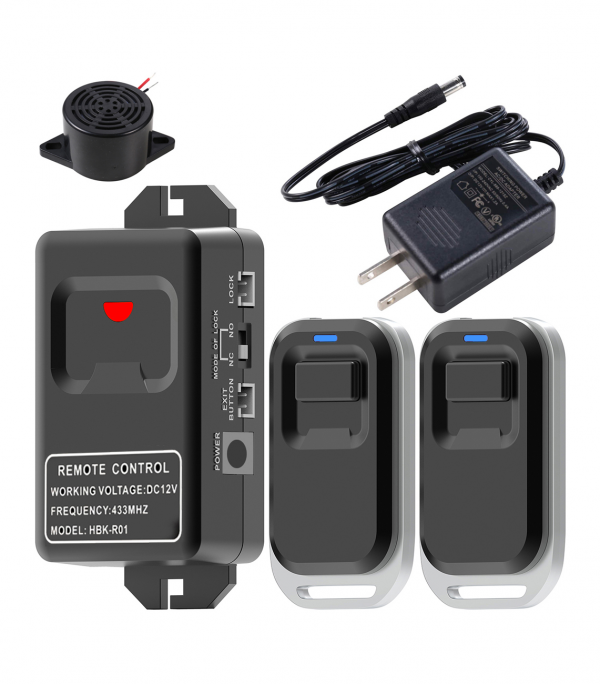

Package:

• 1 x Receiver
• 2 x Transmitter
• 2 x JST 2 Pin Plug
• 1 x Power Adapter
• 1 x English Manual

Attention:

• This remote is specialized for the access control system and unable to be applied to other fields.
