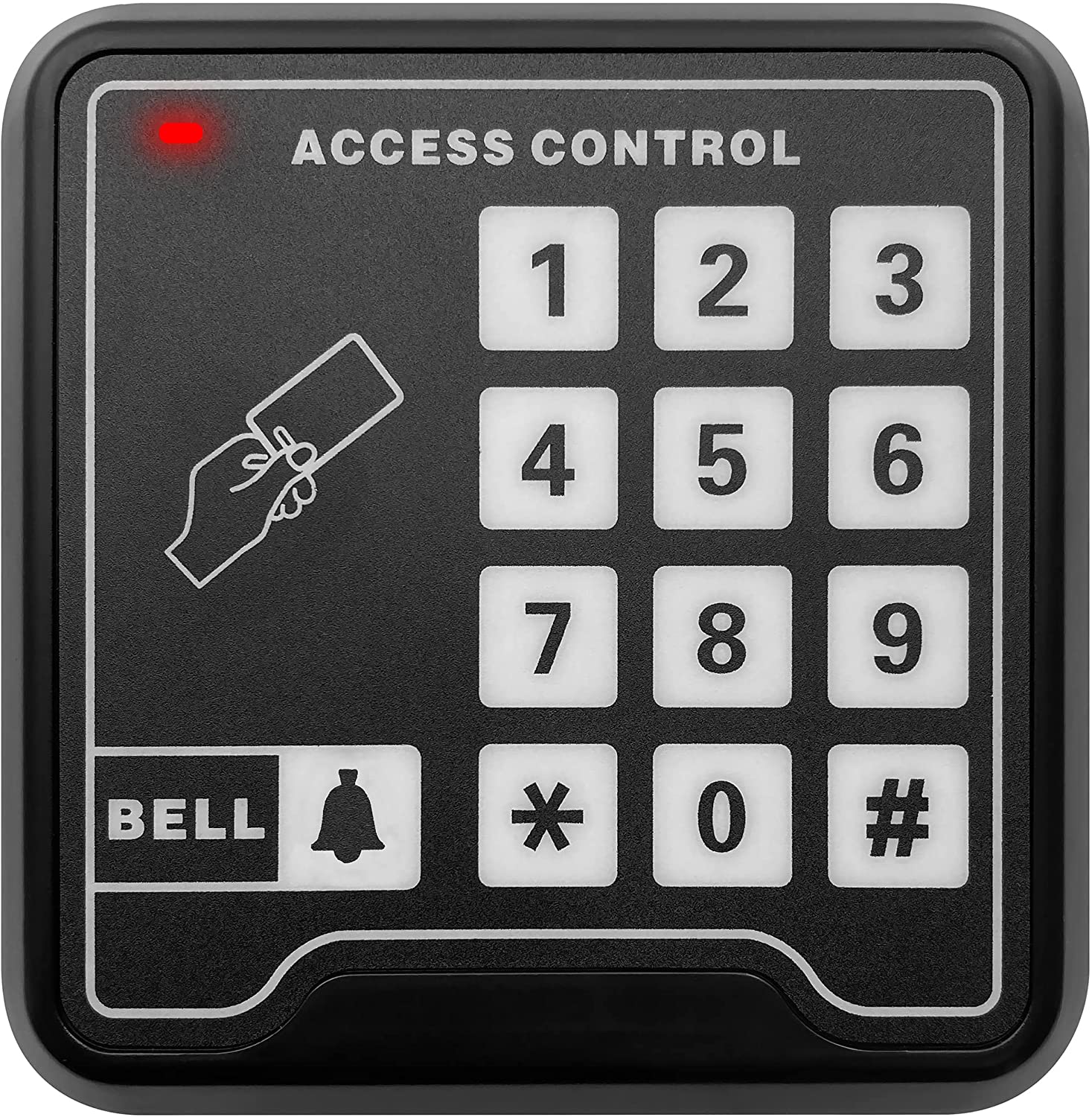

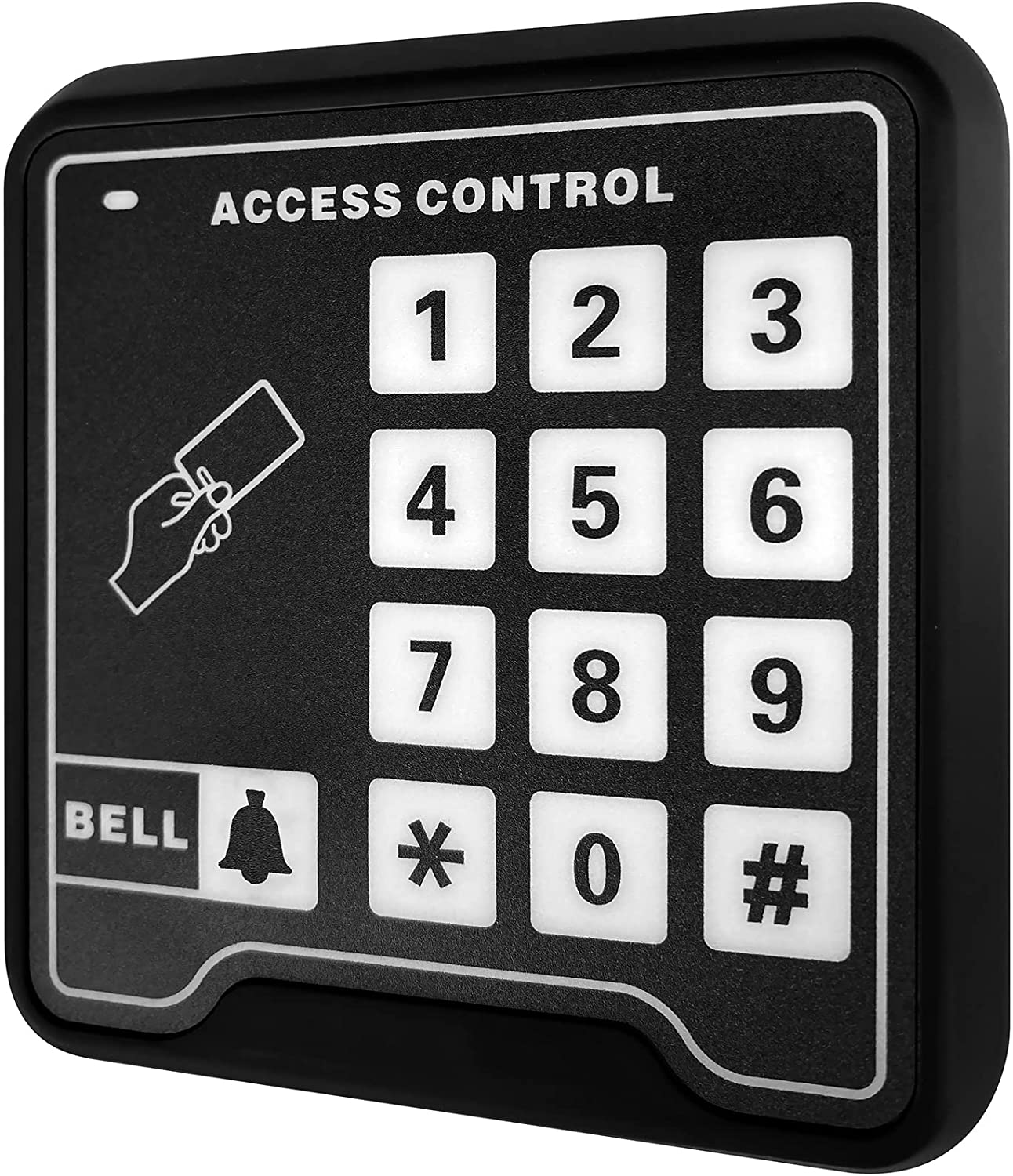

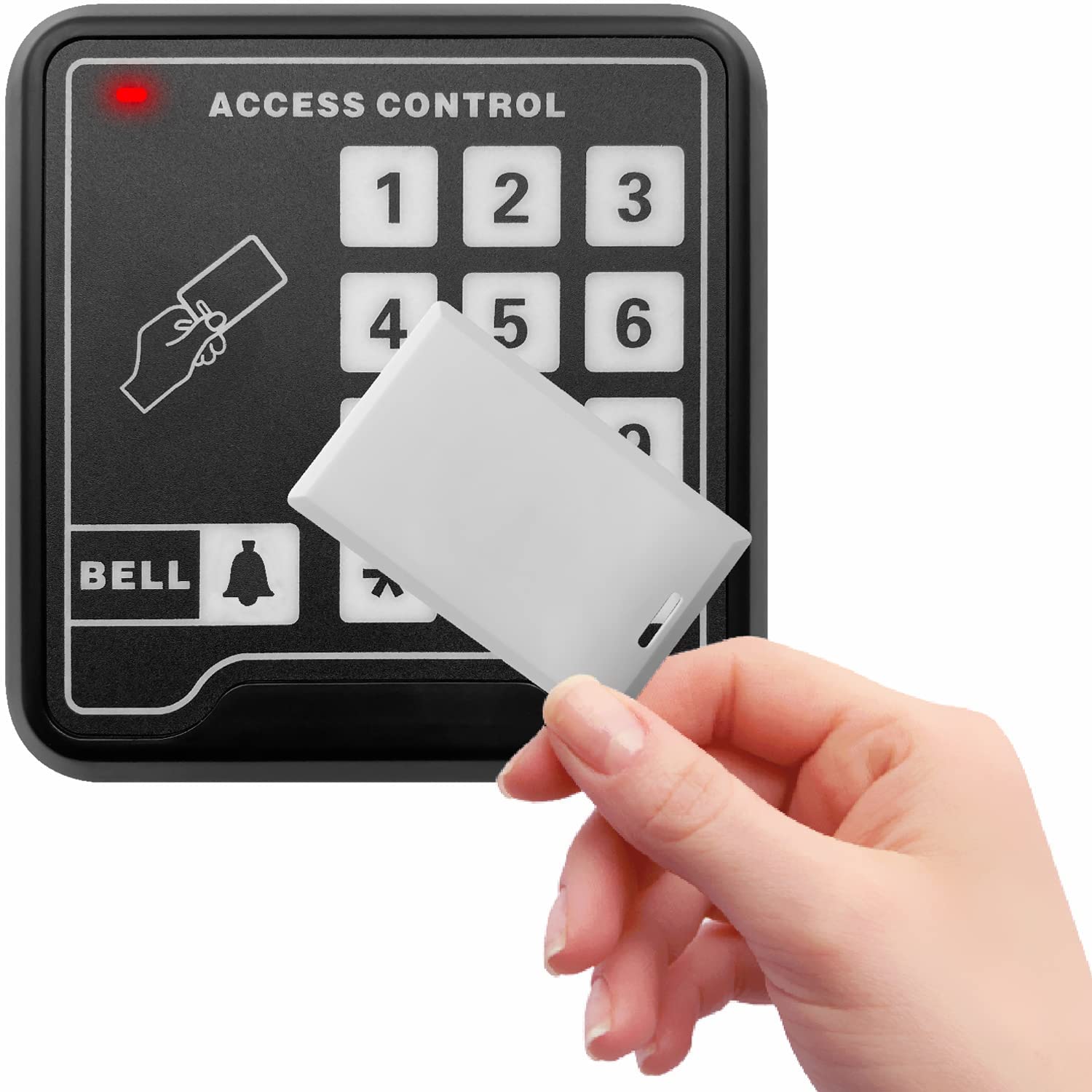

HBK-A01 | 125KHz RFID Stand-Alone Door Access Control Keypad Support 1000 Users

125KHz RFID Stand-Alone Door Access Control Keypad Support 500 Users

Features:
Full programming from the keypad
High quality and high security
Sensitively and response quickly
Classical appearance with useful function
Designed for home and office
Supports Card, PIN, Card + PIN, Card or PIN
Adjustable door open time (0-99 seconds)
Very low power consumption
Lock output current short circuit protection
Built-in buzzer; No keypad backlight
Red, blue, white, yelolw and green LED indicators display the working status
It is widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.

Specification:
Operating Voltage: 12VDC
Lock Output Load: Max. 1.5A
Idle Current: 50mA
RFID Card Capacity: 500
User PIN Capactity: 500
PIN Digits: 4-8 digits
Card Type: Standard 125KHz EM
Door Relay Time: 0-99 seconds
Compatible Cards: EM compatible card (Can’t support some encrypted cards,such as HID, Indala, Cobra, APCiK ,Paradox, Radio, Honeywell, etc.)
External Reader: Not support
Waterproof: Not support
Keypad Backlight: Not support
Shell Material: Plastic
Product Weight: 100g / 3.5oz
Card Reading Distance: Max. 6cm (2-23/64″)
Shell Size: 100x100x18.5mm (3-15/16″ x 3-15/16″ x 47/64″)
Door Open Options (admin user selectable): Card Only / Password Only / Card + Password / Card or Password
Working Temperature: -30°C-60°C / -22°F-140°F
Working Humidity: 10%-90%RH, non-condensing

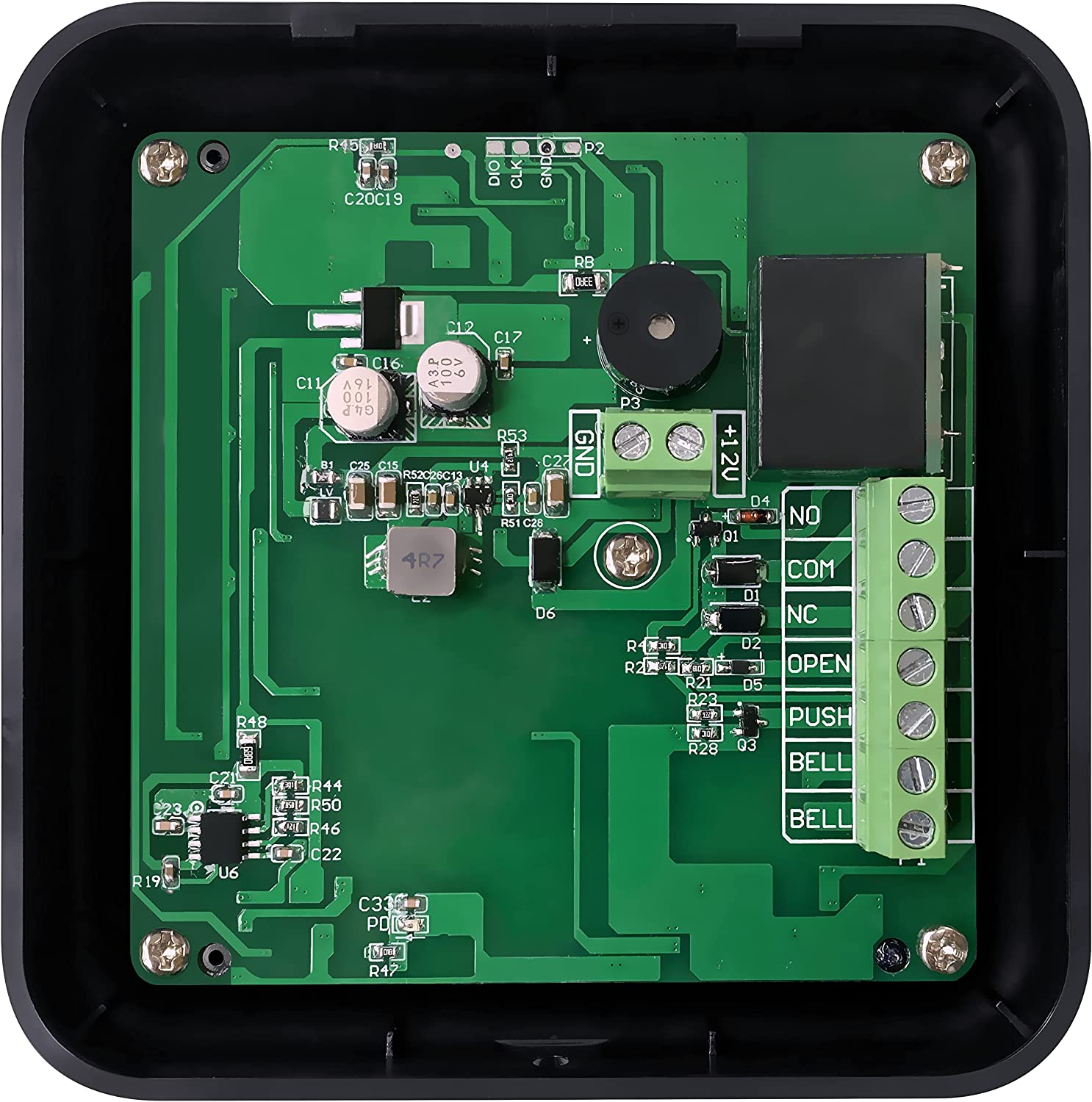

Wiring Connections: Electric Lock, Exit Button, External Bell

Packing List:
1 x Access control keypad
1 x English user manual
4 x Rubber plugs used for fixing the shell
4 x Self-Tapping screws used for fixing the shell
