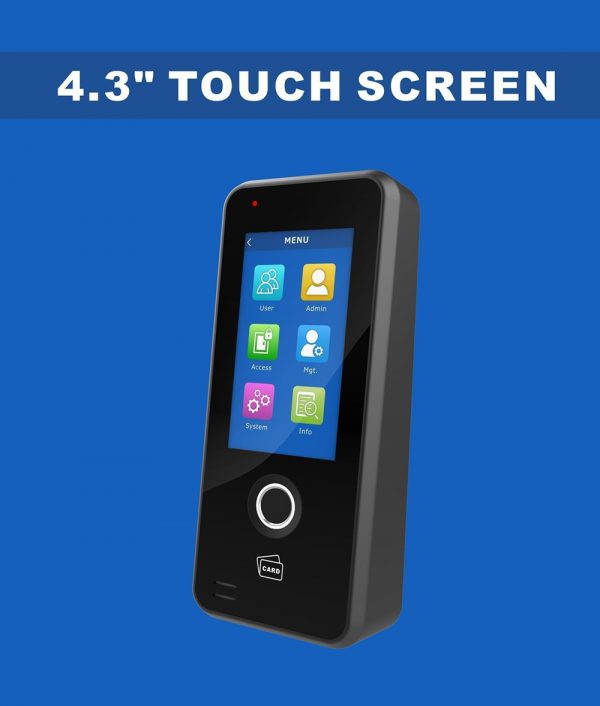

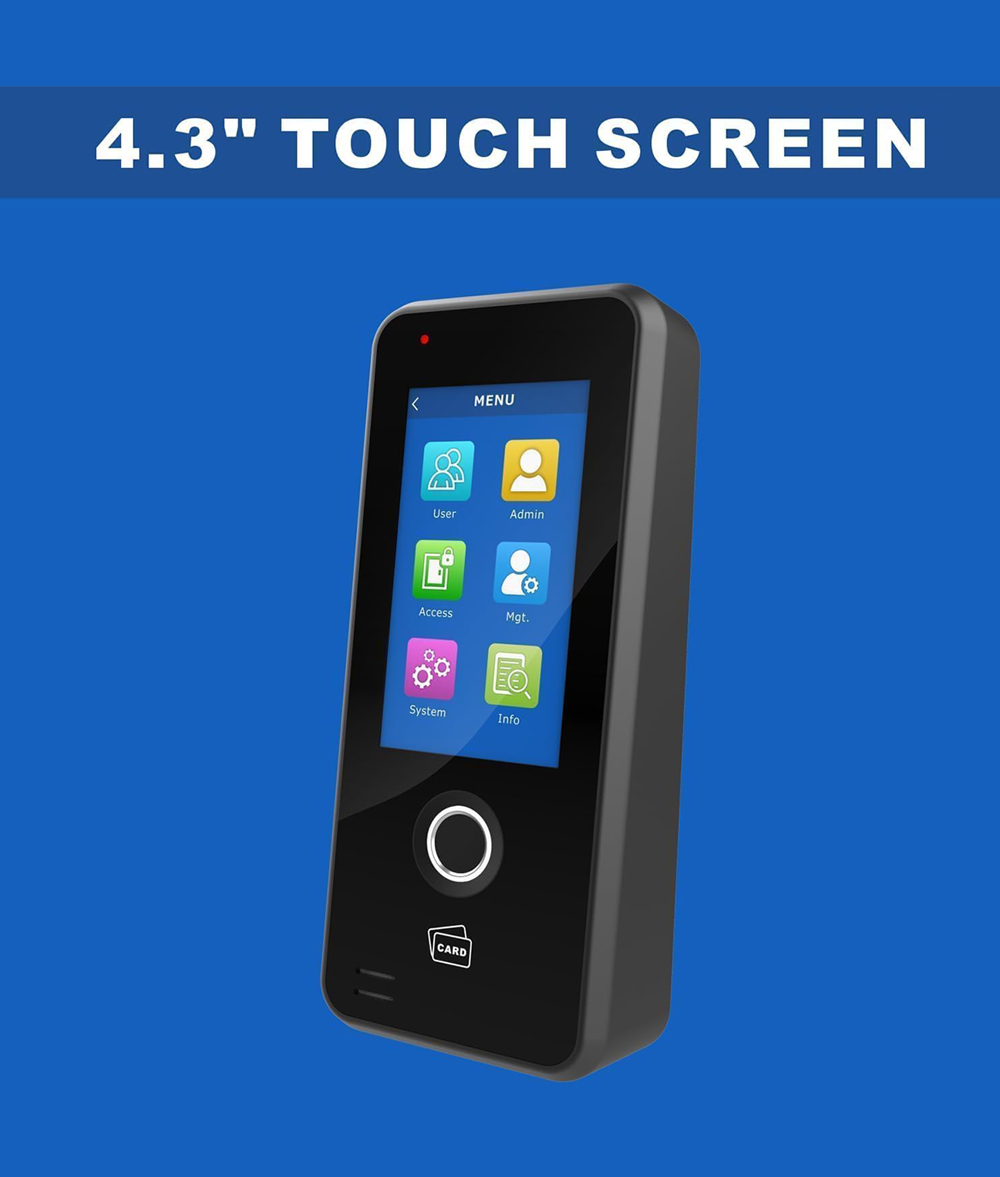

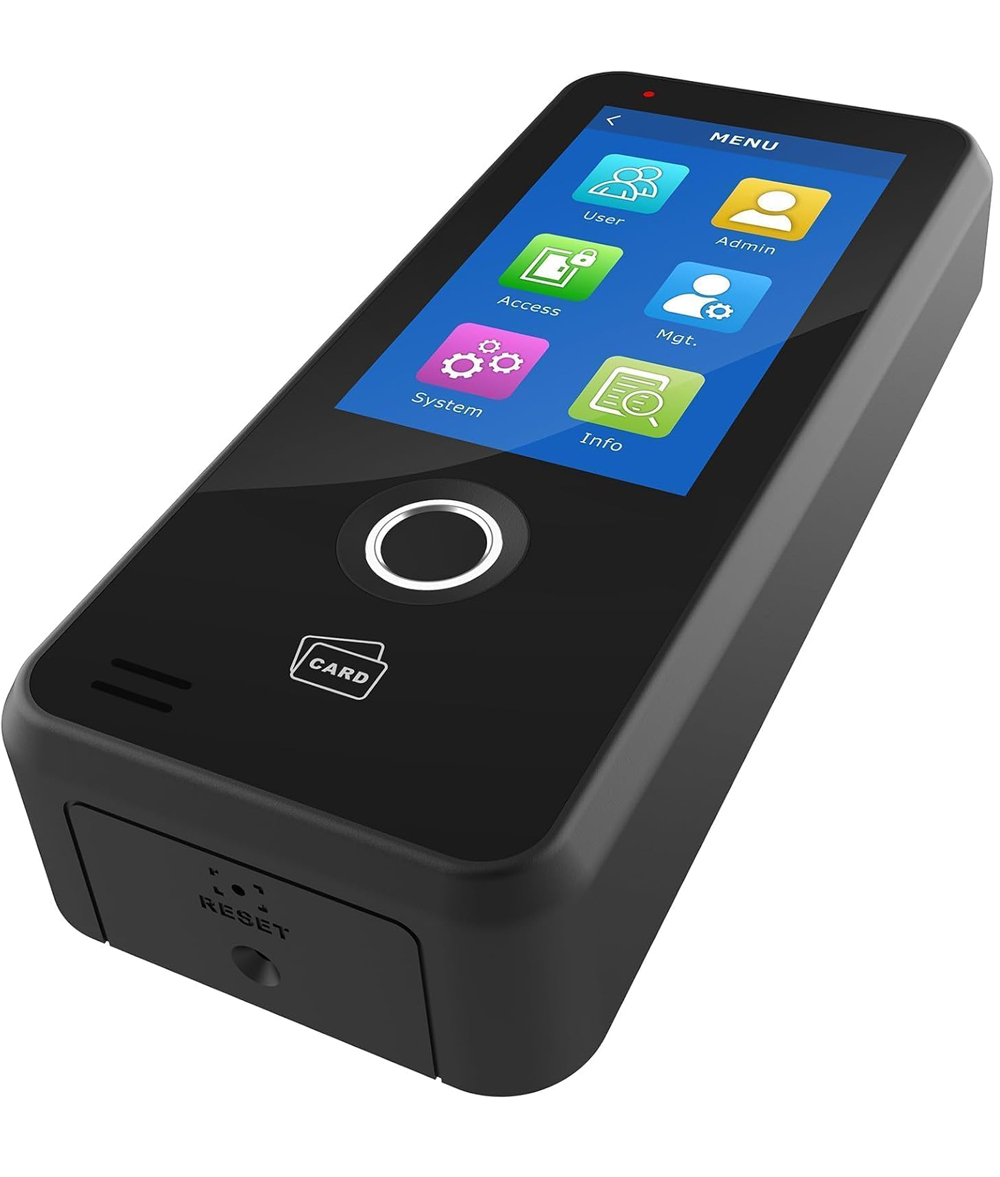

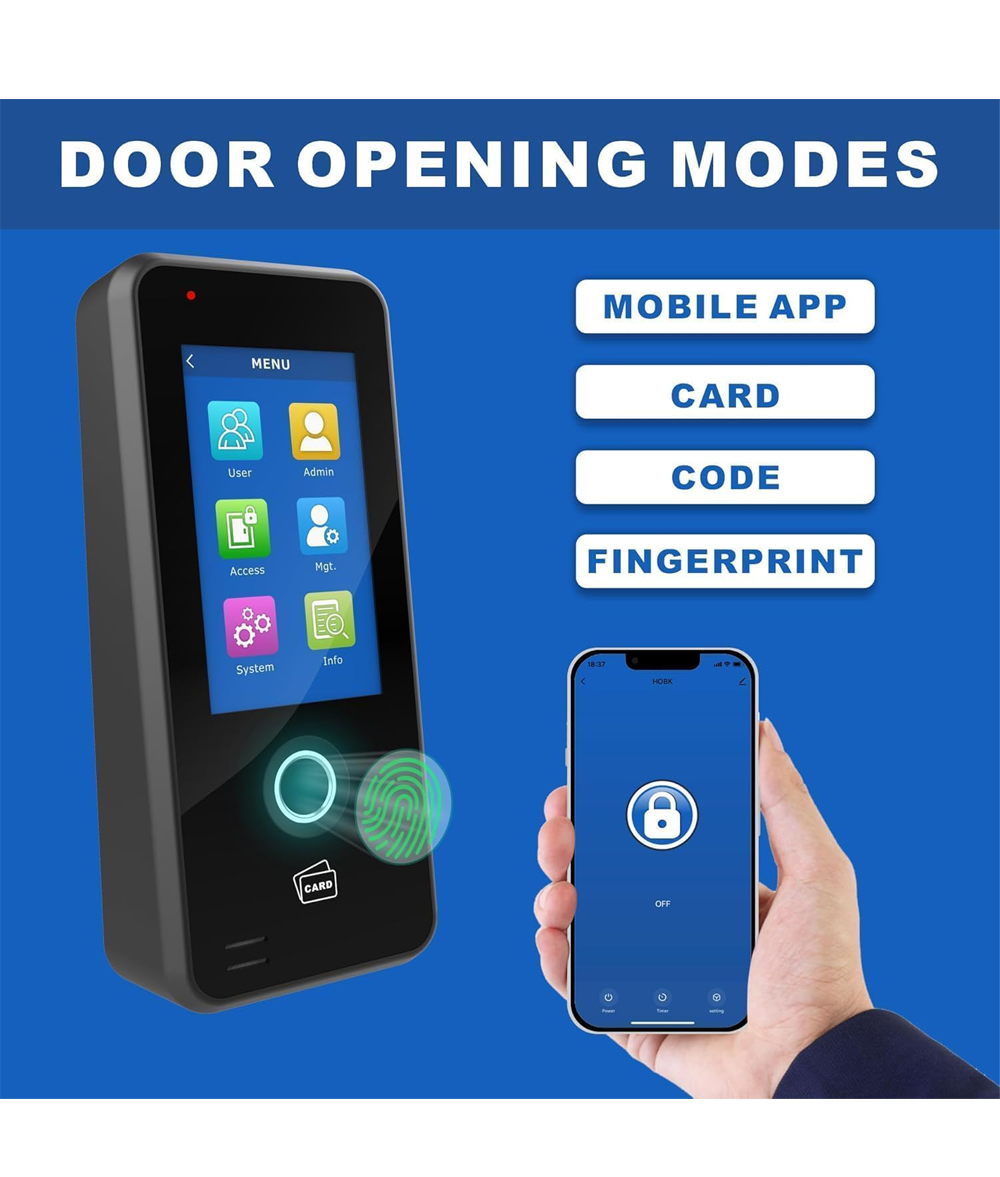

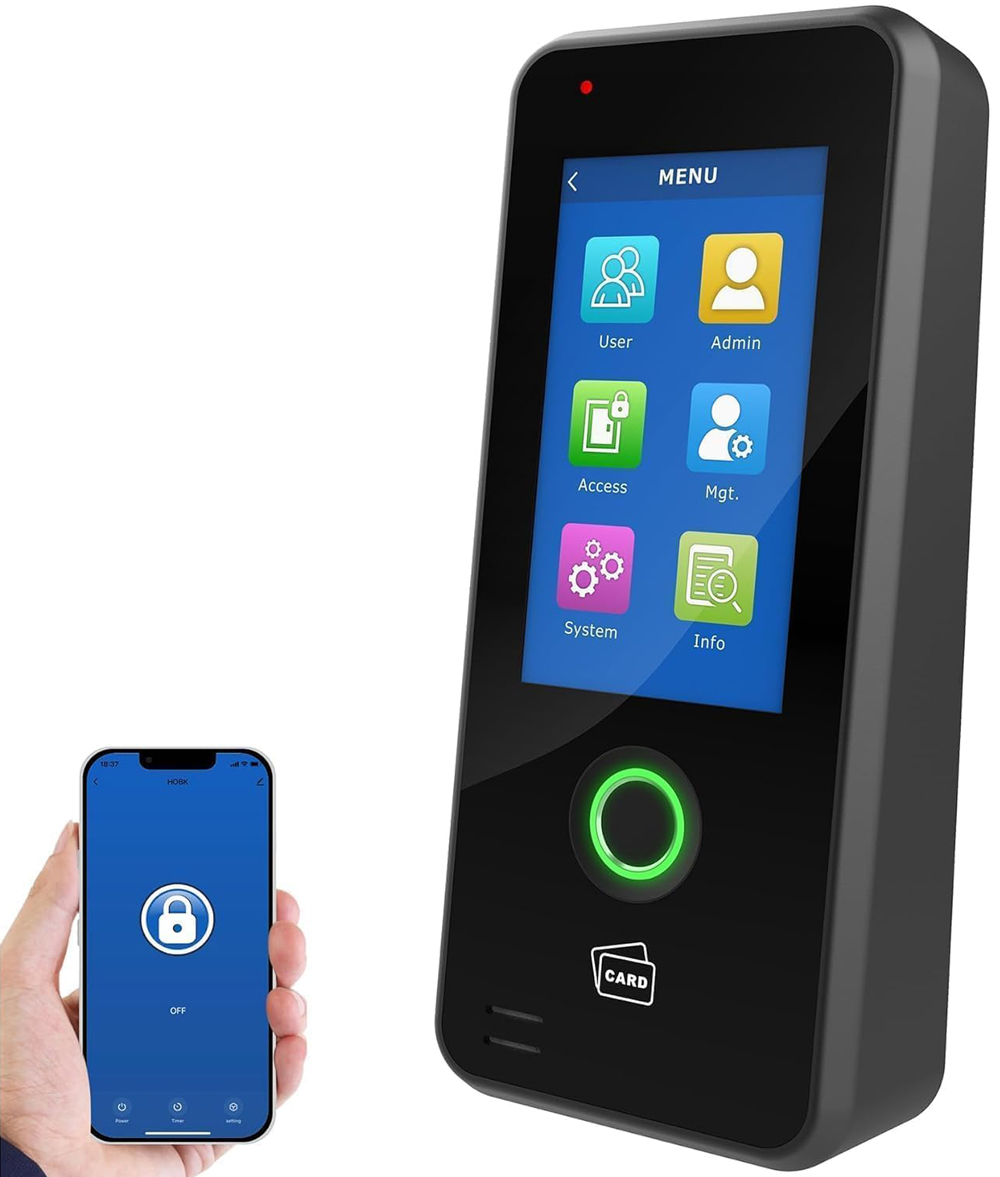

Fingerprint Door Access Control System Keypad Terminal w/ 4.3-inch Touch Screen Support Tuya App

$87.50

  • ✅ Ergonomic design and voice prompts.
  • ✅ Equipped with a 4.3″ touch screen, making programming operations more convenient.
  • ✅ Support Tuya Smart which is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP.
  • ✅ It enables you to remotely control the connected appliances via free Tuya Smart App. You can download the iOS version in App Store and the Android version in Google Play.
  • ✅ The biometric access control terminal can recognize your fingerprint within 0.4 seconds, store 300 fingerprint users. Fingerprints are stored locally and not uploaded to the cloud to ensure your family’s privacy.
  • ✅ It is widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
SKU: HBK-A05F Category:

Fingerprint Door Access Control System Keypad Terminal w/ 4.3-inch Touch Screen Support Tuya App



Introduction:

  • This access control terminal controls a single door.
  • Full programming from the terminal.
  • Built-in biometric authentication technology provides secure access to the doors in less than 0.4 seconds with the touch of your finger.
  • It uses high performance 32-bit MCU to ensure stable performance, and low-power circuit makes the service life longer.
  • Power relay with 10A switching capacity provides an excellent switching performance for electric locks.
  • It is widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.

Specifications:

  • Operating Voltage: 12VDC
  • Lock Output Load: Max. 1.5A
  • Idle Current: 50mA
  • Display: 4.3″ TFT-LCD (800*480)
  • Card User: 2000
  • Fingerprint User: 300
  • Card Type: Standard 125KHz ID card
  • Fingerprint Reader: Capacitive
  • Fingerprint Sensor: 192 x 192 (pixel), 508DPI
  • LCD Language: English
  • False Recognition Rate: <0.1%
  • Enclosure Material: ABS Plastic
  • Operating Humidity: 10%-90%RH
  • Operating Temperature: -22°F-140°F
  • Dimensions: 7-3/4″x3-13/32″x1-25/32″ (197×86.4×45.3mm)

Package List:

  • 1 x Fingerprint Access Control Terminal
  • 1 x English User Manual
  • 1 x Installation Drawing
  • 1 x Accessories Package
