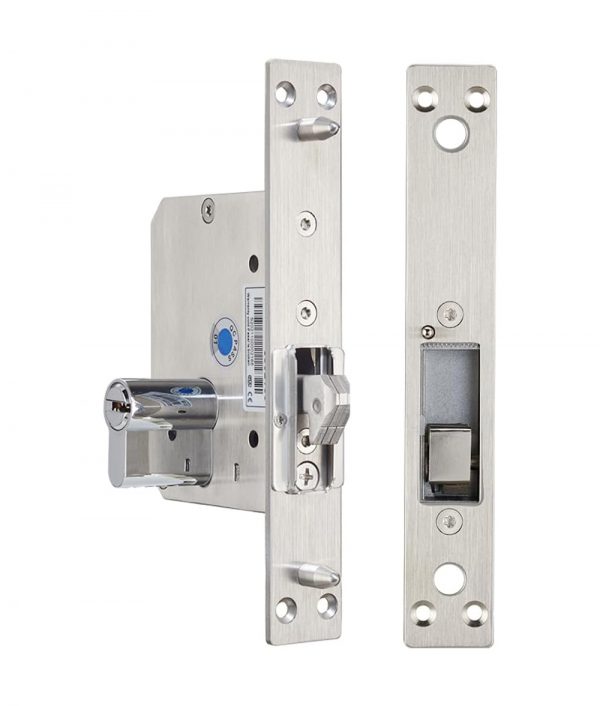

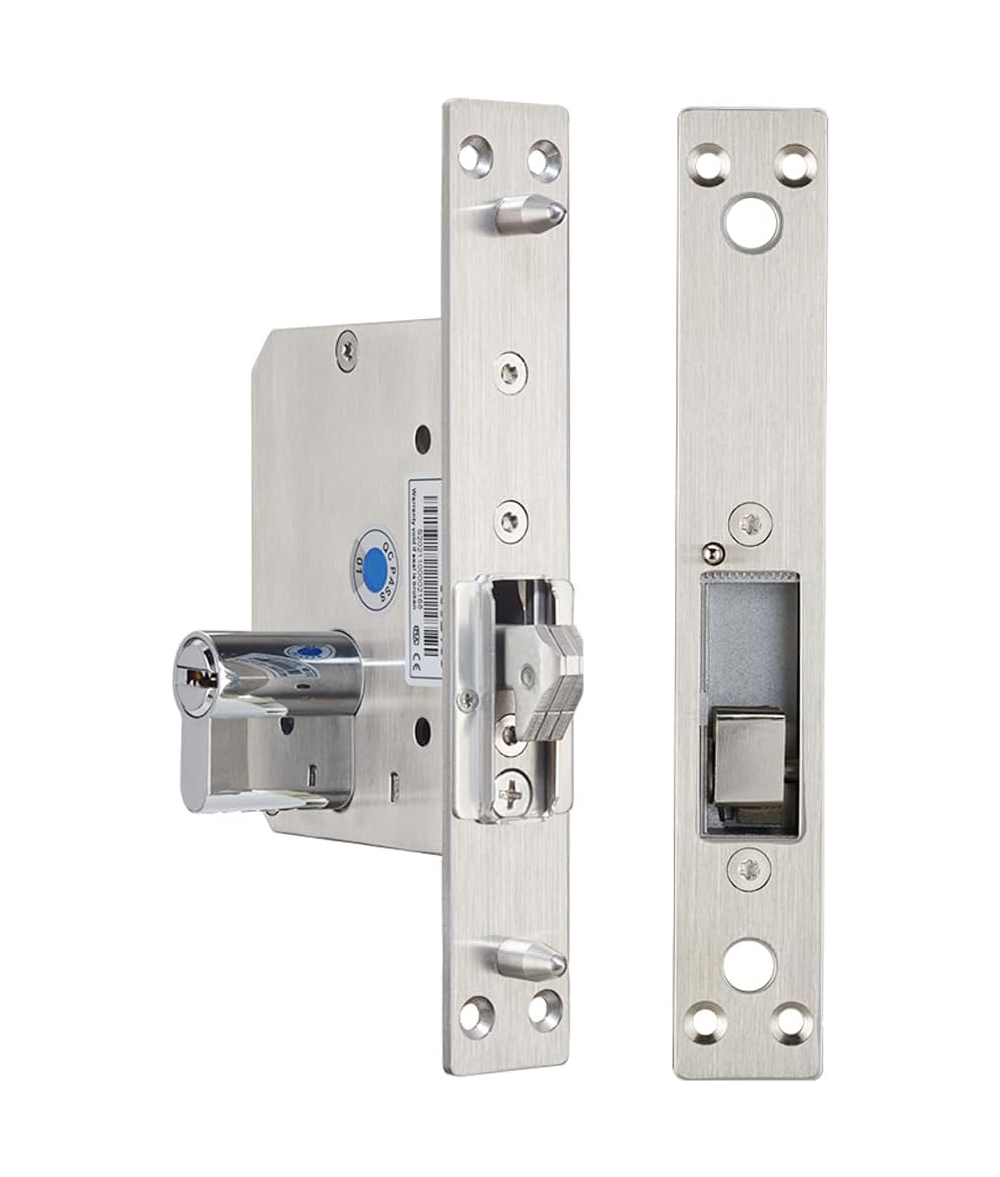

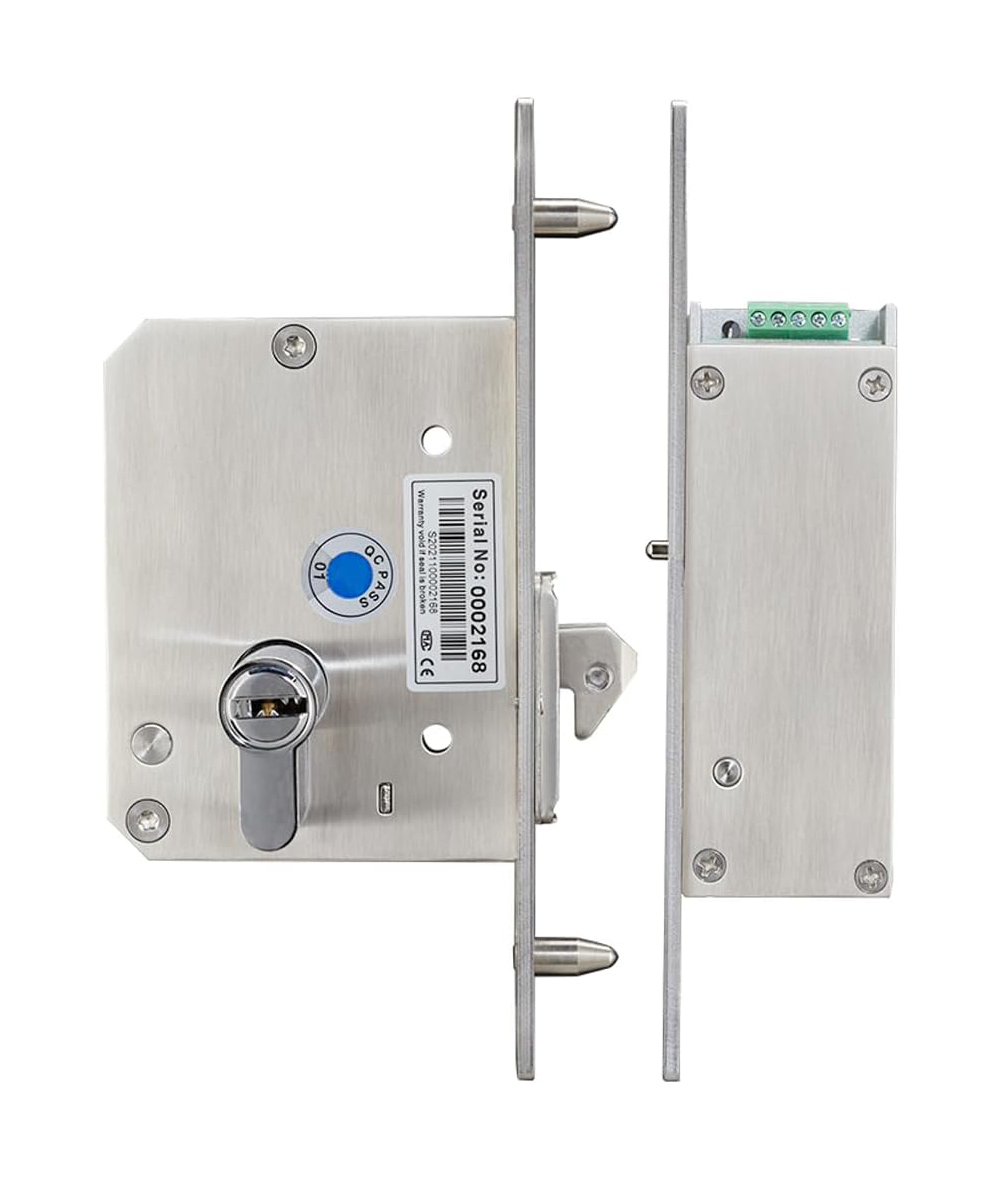

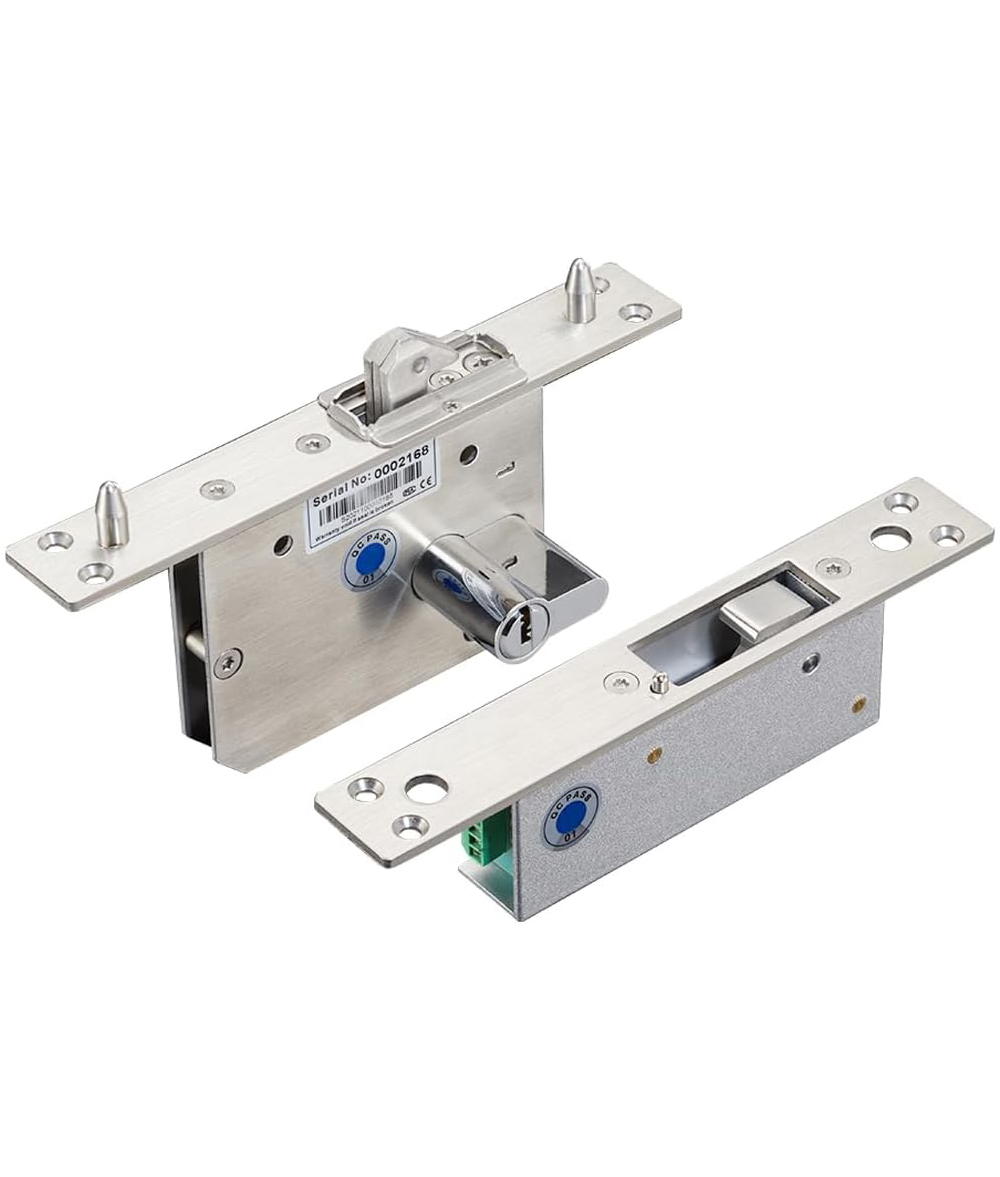

European Standard Fail Secure NO Mode Electric Hook Bolt Lock for Sliding Door

European Standard Fail Secure NO Mode Electric Hook Bolt Lock for Sliding Door

Features:

• All-metal structure, specially designed for sliding door.

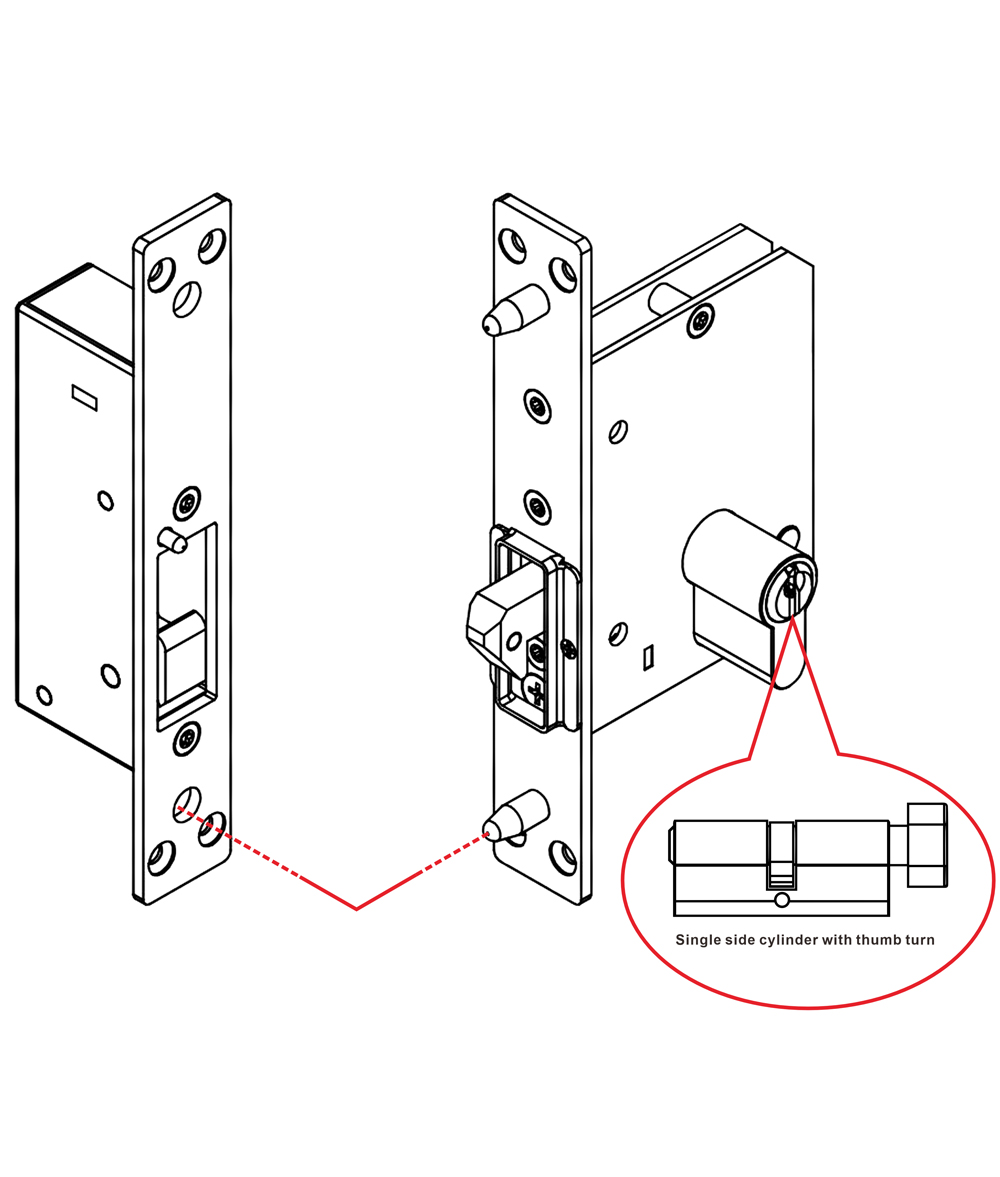

• European standard cylindar, operated by both electronic and manual (Emergency).
• The bolt is made of solid steel, and can withstand 400kg push/pull force.
• This lock has the special high security design of the anti-prying function after locking.
• All the linkage parts are made of metal structure, can be used normally from -40℃ to 60℃.
• Anti-vandal function
• Stainless steel anti-vandal protector
• With IP rating IP65, this item can be used for indoor and outdoor
• Suitable for sliding doors that installed in high security places, such as public security organs, military, procuratorates, prisons, etc.

Specifications:

• Fail Secure：Unlocked when energized

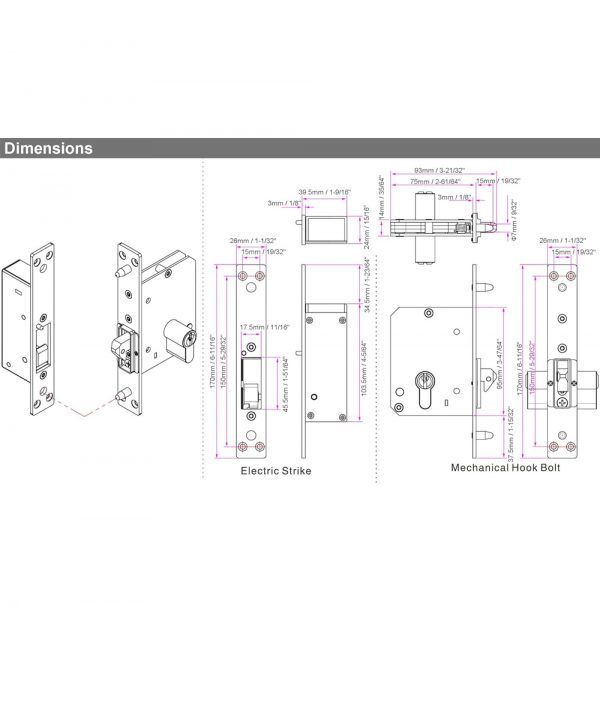

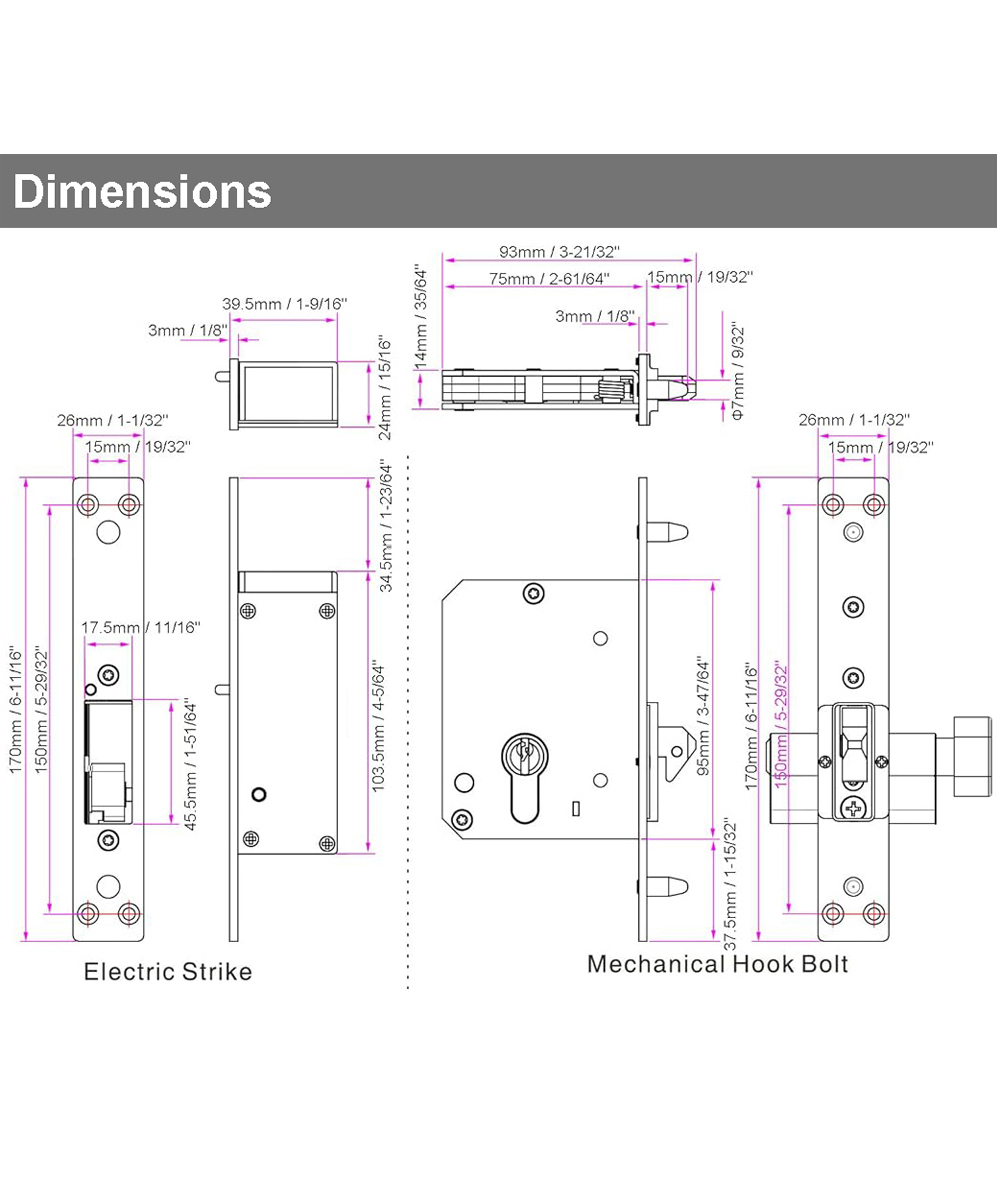

• Electric Strike Size (LxWxH): 170x26x39.5mm / 6-11/16″ x 1-1/32″ x 1-9/16″
• Mechanical Hook Bolt Size (LxWxH): 170x26x93mm / 6-11/16″ x 1-1/32″ x 3-21/32″
• Operating Voltage: DC12V
• Operating Current: 240mA
• Signal Output: Door Status Signal Output (No/NC/COM)
• Holding Force: 400kg
• Waterproof Level: IP65
• Operating Temperature: -20℃~60℃ / -4℉~140℉
• Operating Humidity: 0~95% (non-condensing)
• Mechanical Hook Material: 304 Stainless Steel
• Application: Public security organs, procuratorate, prison
• Weight: 1.5kg / 3.31lb

Package Included:

• 1 x Electric Hook Bolt Lock
• 1 x User Manual
