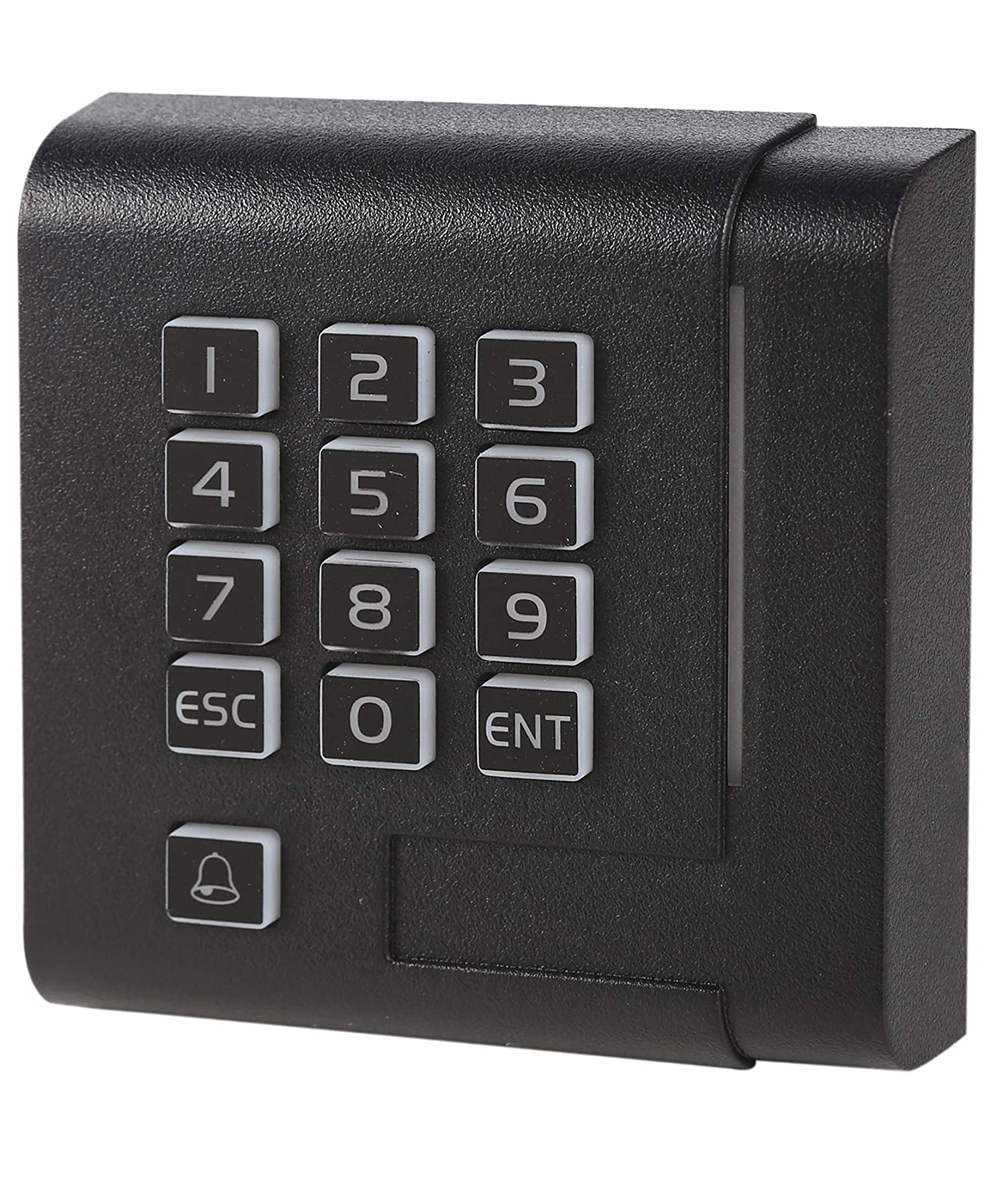

13.56Mhz Wiegand 26 Bit IC Card Reader Keypad for Access Control Board

Introduction

• The RFID card reader can’t work-alone and it needs to work with Wiegand protocol access controller, such as access control panel or master controller.
• It uses ST MCU to ensure stable performance, and low-power circuit makes the service life longer.

Features:

• The maximum reading distance is 2-23/64“ [6cm].
• Waterproof, conforms to IP66.
• It is useful for safety door system, easy to connect and use.
• Ultra-low power consumption, the standby current is less than 50mA.
• Support wiegand 26bits or wiegand 34bits output format.
• Fast response speed, the door opening time is less than 0.3s.
• This device uses high performance 32-bit MCU to ensure stable performance, and low-power circuit makes the service life longer.
• Widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.

Remark:

• This card reader will prompt sound and light indication only when the LED and BEEP cables are connected to the access controller.
• Please connect the Black and Gray wire together for wiegand 34bit output.

Specifications:

• Working Voltage: 12VDC
• Static Current: ≤50mA
• Card Type: IC
• Frequency: 13.56MHz
• Working Temperature: -40 to +140°F
• Working Humidity: 10%-90%RH
• Waterproof Rating: IP66
• Enclosure Material: ABS Plastic
• Panel Material: PC Plastic
• Enclosure Color: Black
• Enclosure Size: 86x86x18mm
• Communication Distance: Less than 328ft

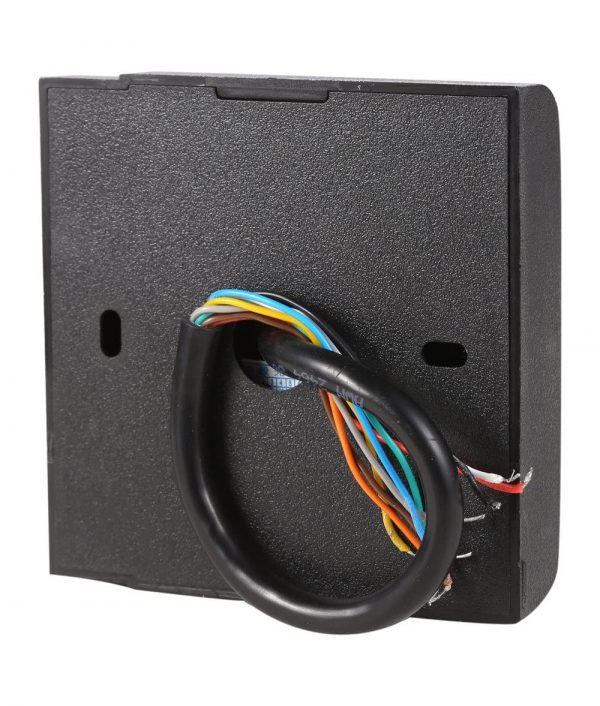

• Lead Cable Length: 25cm
• Status Indication: Bi-color LED + Buzzer
• Output Format: Wiegand 26 bit or Wiegand 34 bit (Selectable)

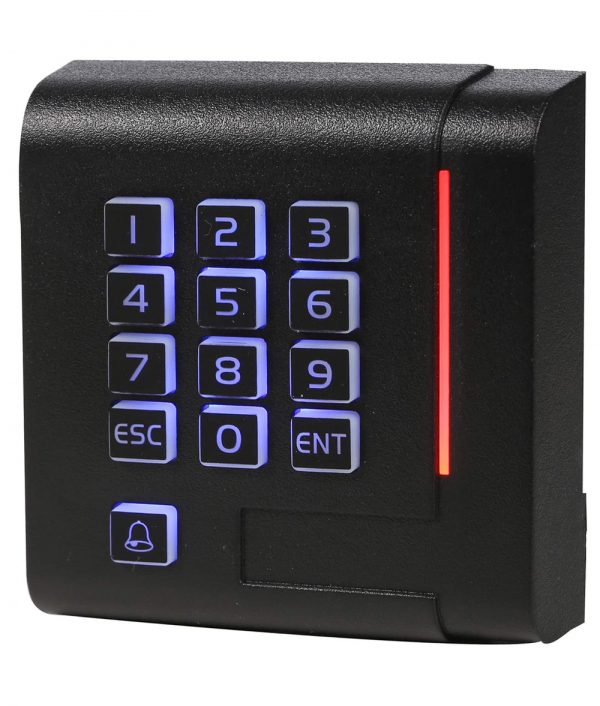

• LED Status Indication: Red means standby, Green means activated

Note:

• Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID, Cobra, APCiK, Paradox,etc.
• Can’t work alone, need work with access control panel.
