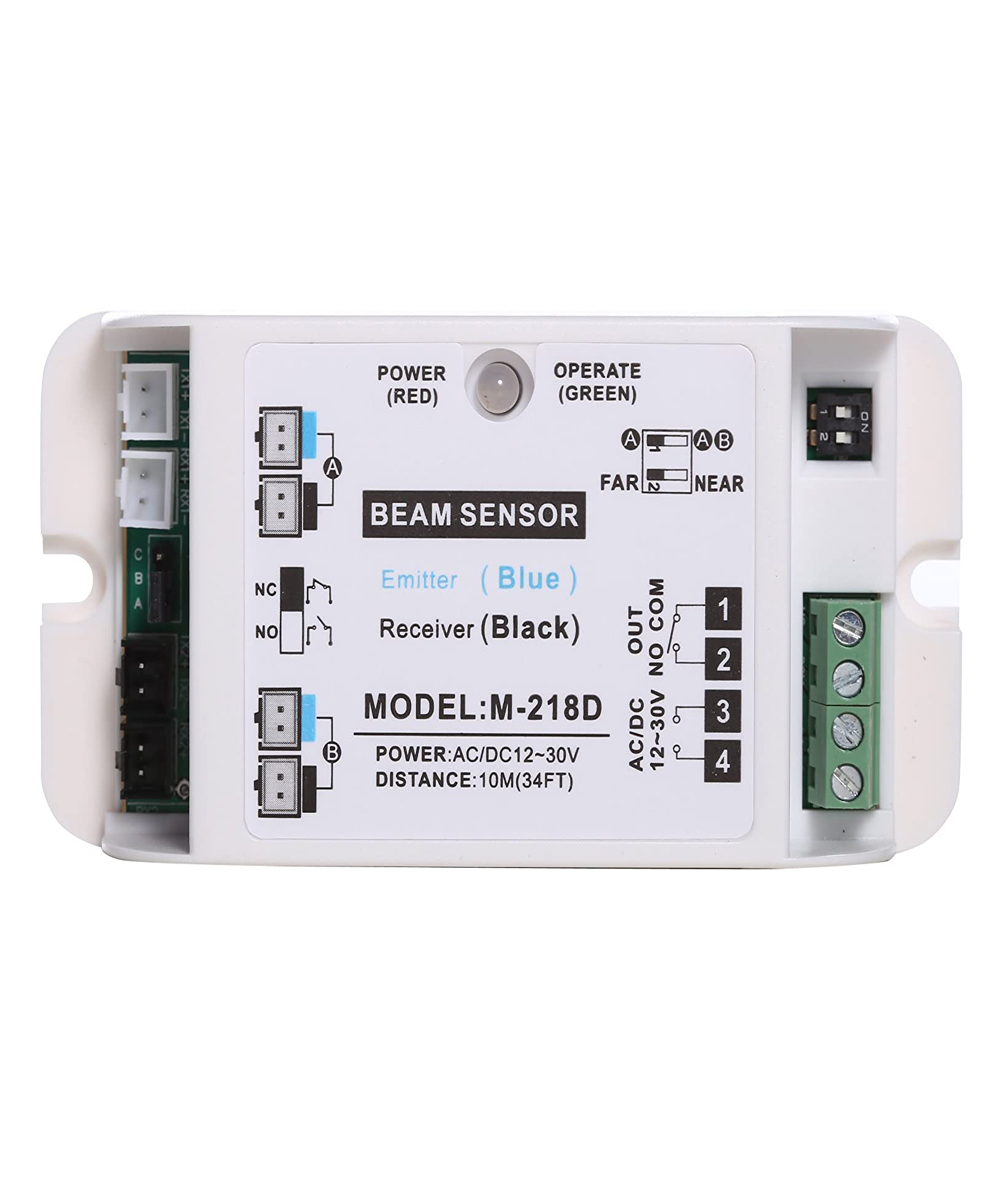

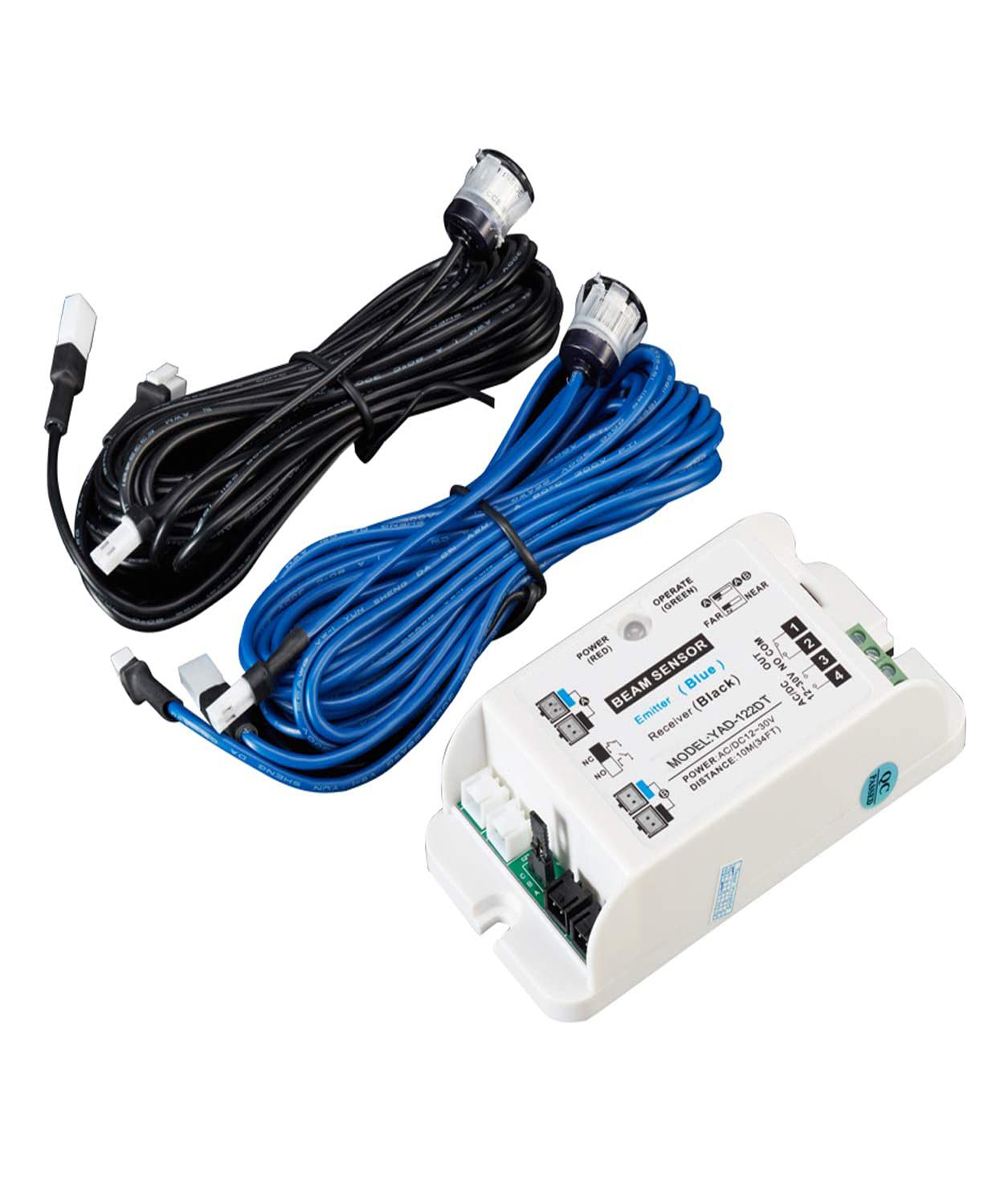

Safety Double Photoelectric Beam Sensor Detector for Auto-Door Control System

Safety Double Photoelectric Beam Sensor Detector for Auto-Door Control System

Features:

• With Pull in & out type socket for easy wiring.
• Adopt microcomputer control technology, high integration with high stability.
• International optical lens design with good focus quality, controlled angle is rational, easy to be installed.
• Far transmit distance with strong, anti-interference ability.
• Adopting receiving filter, decoding, amplification system of German technology. Effective solution to anti-interference of natural daylight.
• Emission electric eye adopts low-power consumption design with far transmit distance.
• Emission contact and receive contact output separately with shielding line.
• When the signal light be blocked, NO or NC contact can be flexibly chosen.
• With AC/DC12-30V power input.
• Warning alarm will be sent when eye sensor has problems.

Specifications:

• Power supply: AC/DC12-30V
• Static Power: 12-18mA
• Action Current: 12-58mA
• The maximum transmit distance: 10m / 32.8ft
• NO or NC contact: Done by NO/NC contact selection
• Beam: Single beam or double beam
• Working Temperature: -42℃~45℃ / -43.6℉~113℉
• Working Humidity: 10-90%RH
• Size of Controller: 105.5Lx53.4Wx28.5H(mm) / 4.15Lx2.1Wx1.12H(in)
• Size of magic eye head: 19Lx13D(mm) / 0.75Lx0.51D(in)

Package:

• 1 x Beam sensor
