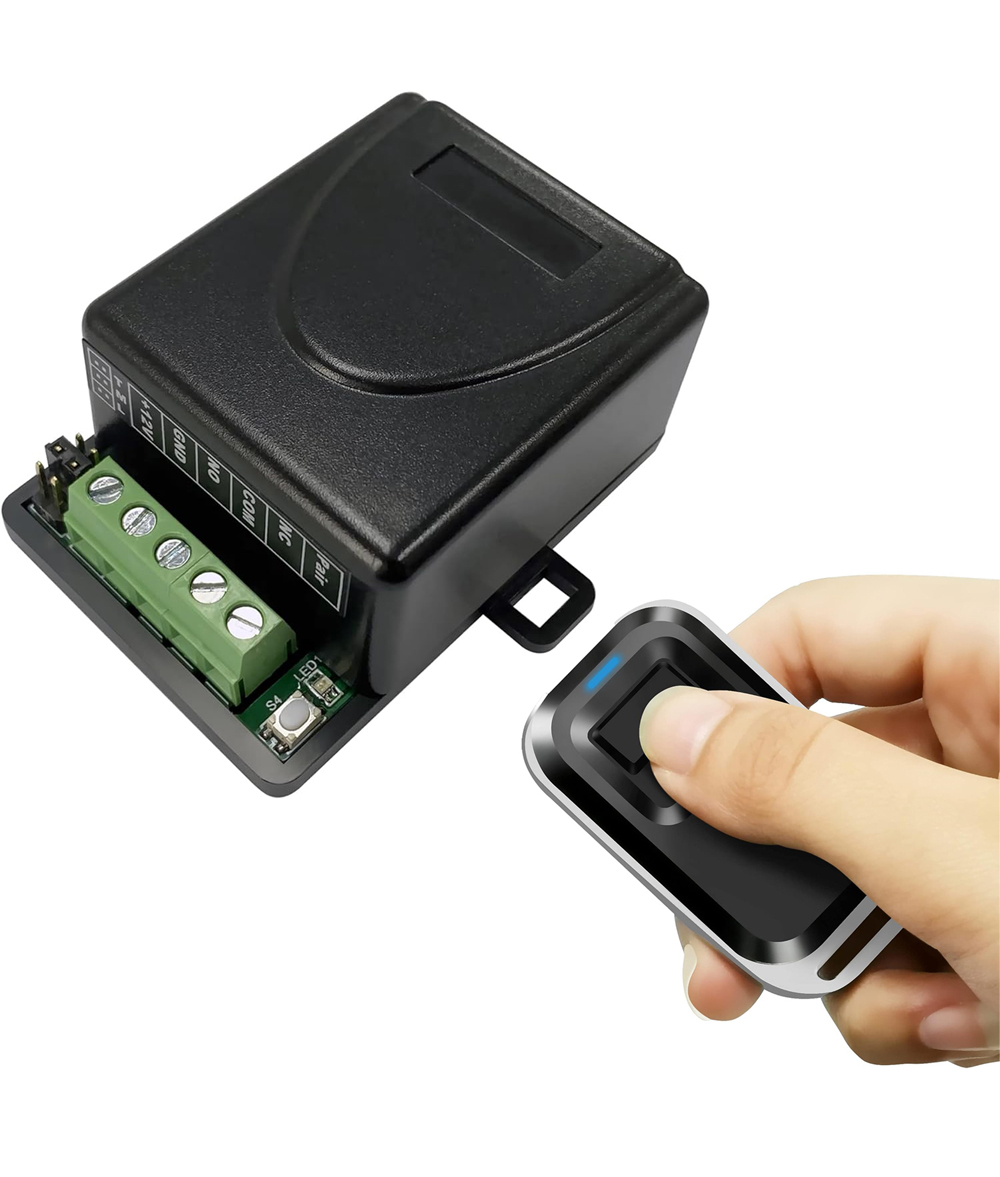

12VDC RF Wireless Remote Control Switch 433MHz 1-Channel for Garage Door Openers, Electirc Lock, LED Lights

12VDC RF Wireless Remote Control Switch 433MHz 1-Channel for Garage Door Openers, Electirc Lock, LED Lights

Features

• Convenient to operate and easy to use.
• Integrated OOK/ASK receiver for 433MHz frequency band, make the remote control stable and less interference.
• This remote uses high performance 8-bit MCU to ensure stable performance, and low-power circuit makes the service life longer.
• Built-in power relay with 10A switching capacity provides an excellent switching performance.
• Stable performance and low-power consumption, long service life.
• The wireless signal can pass through walls, floors and doors.
• Applied for fans, water pumps, lamps, remote control door lock, etc.

Remote Receiver

• Operating Voltage: 12VDC
• Receiving Range: 164ft (Open space)
• Operating Mode: Momentary/Toggle
• RF Frequency: 433MHz
• DC Encoding Type: Learning code
• RF Channel: One
• Transmitter Support: Max 40

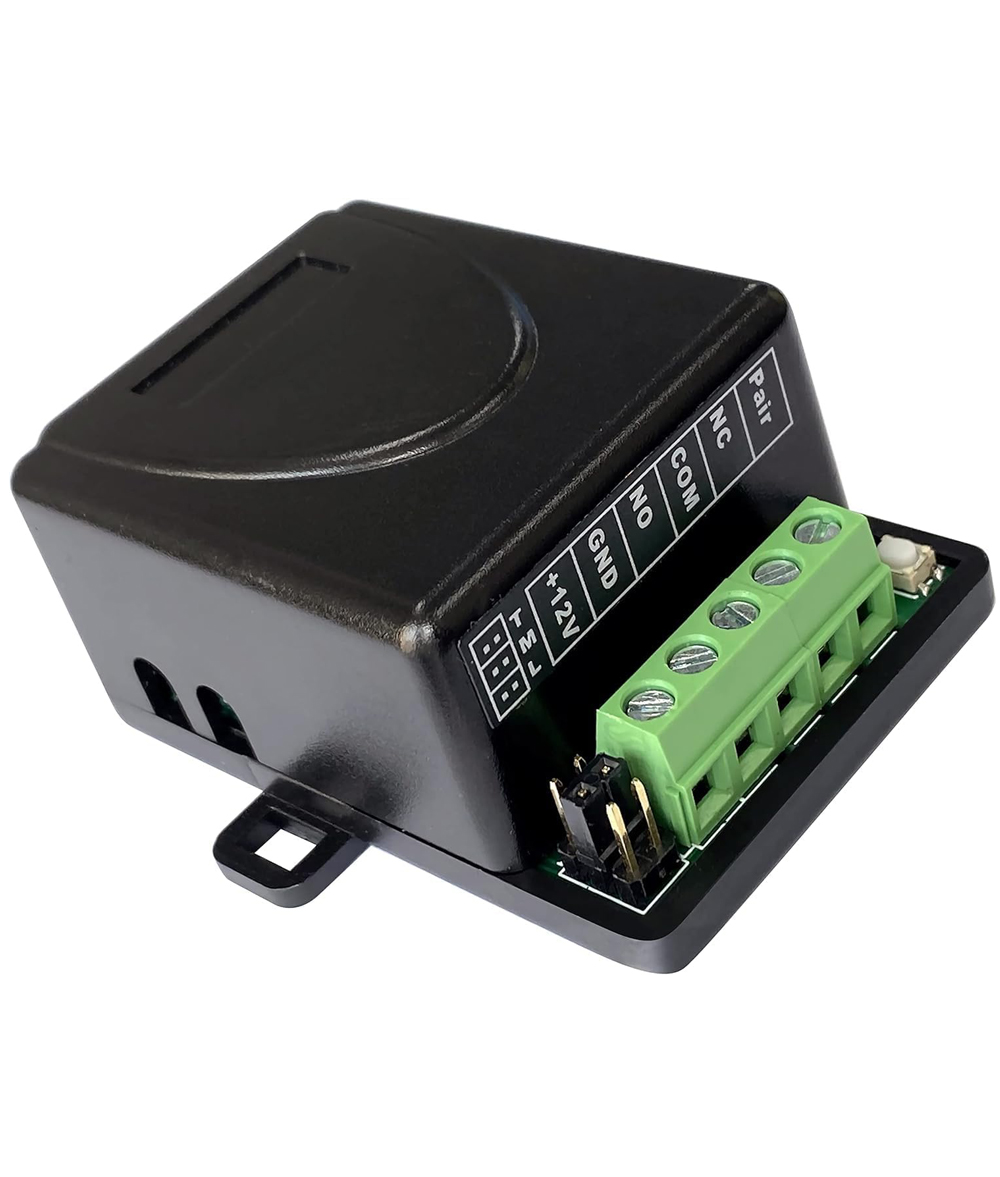

• Output Terminals: NO/NC/COM
• Connectors: 5 screw Terminal
• Case Construction: ABS Plastic

Remote Transmitter

• Power Source: CR2016 Battery Operated (Included)
• Number of Batteries: 2
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHz
• Number of Buttons: 1
• Emission Distance: 20-50m / 65-160ft (Open area)
• Dimension (LxWxH): approx. 2-9/32″ x 1-19/64″ x 15/32″ ( 58x33x12mm)

• Encoding Type: Fixed code
• Enclosure Color: Black
• Enclosure Material: ABS Plastic

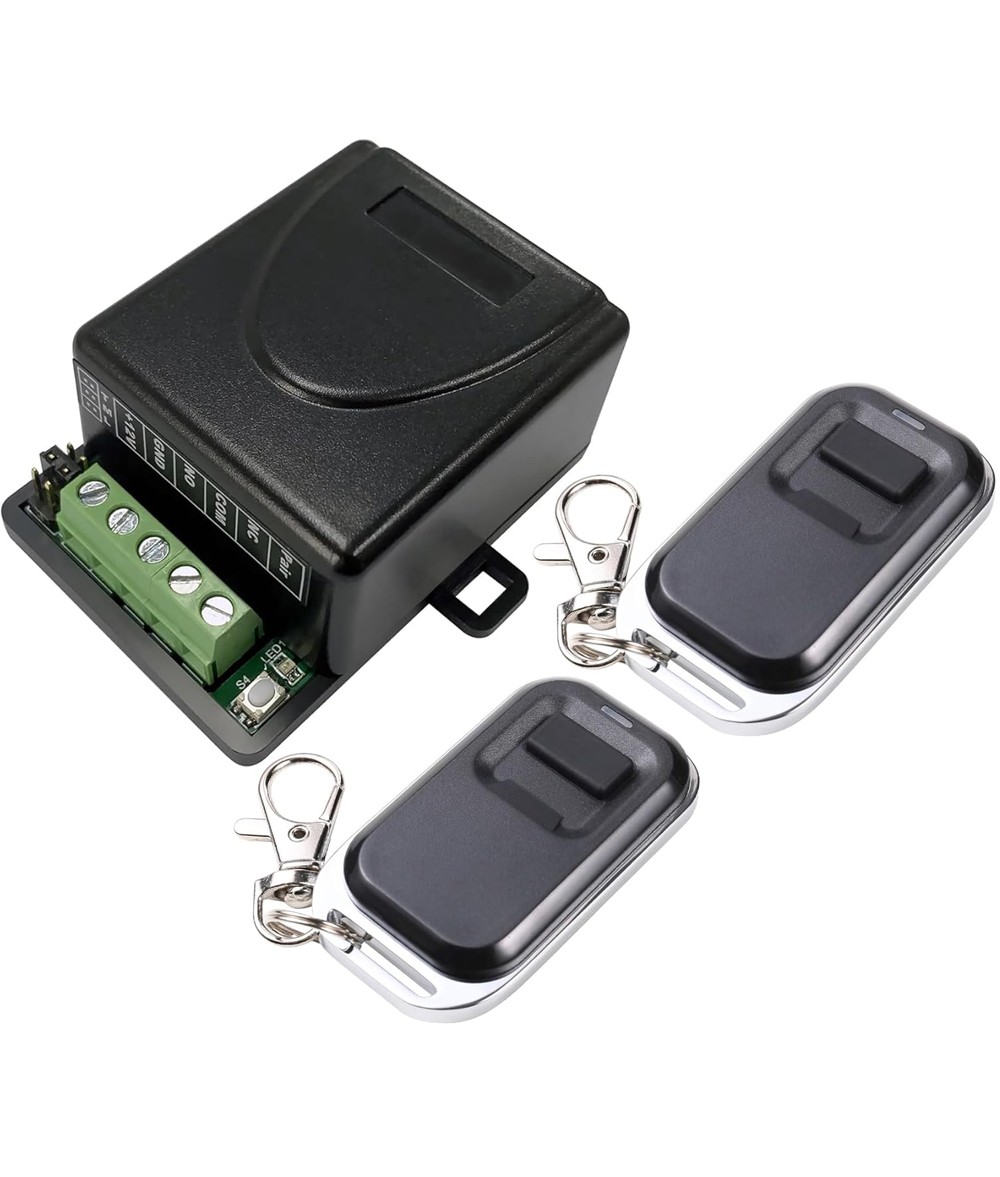

Package List

• 1 x Remote Receiver
• 2 x Remote Transmitter
• 1 x English User Manual
