12V Sturdiness Electric Bolt Lock Fail Safe for Narrow Door

$85.38

This fail safe (NC) mode Electric Bolt Lock is suitable for narrow frame doors which is possess with Double protection for loading current. The bolt is made of 304 stainless steel solid bar with 1000kg holding force and anti-burglar design. It contains the design of magnetic valve, particular photoelectric control structure.

SKU: UT-YB-500IN(LED) Categories: ,

12V Sturdiness Electric Bolt Lock Fail Safe for Narrow Door



Features:

  • Low Temperature, safe & Durable
  • Autolock Time Delay: 0,3,6,9sec
  • Door statue signal output contact (NO/COM)
  • Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt
  • Suitable for narrow frame doors which is possess with Double protection for loading current. The bolt is made of 304 stainless steel solid bar with 1000kg holding force and anti-burglar design. It contains the design of magnetic valve, particular photoelectric control structure
  •
NC mode – (locked while supplied with power), fail safe mode

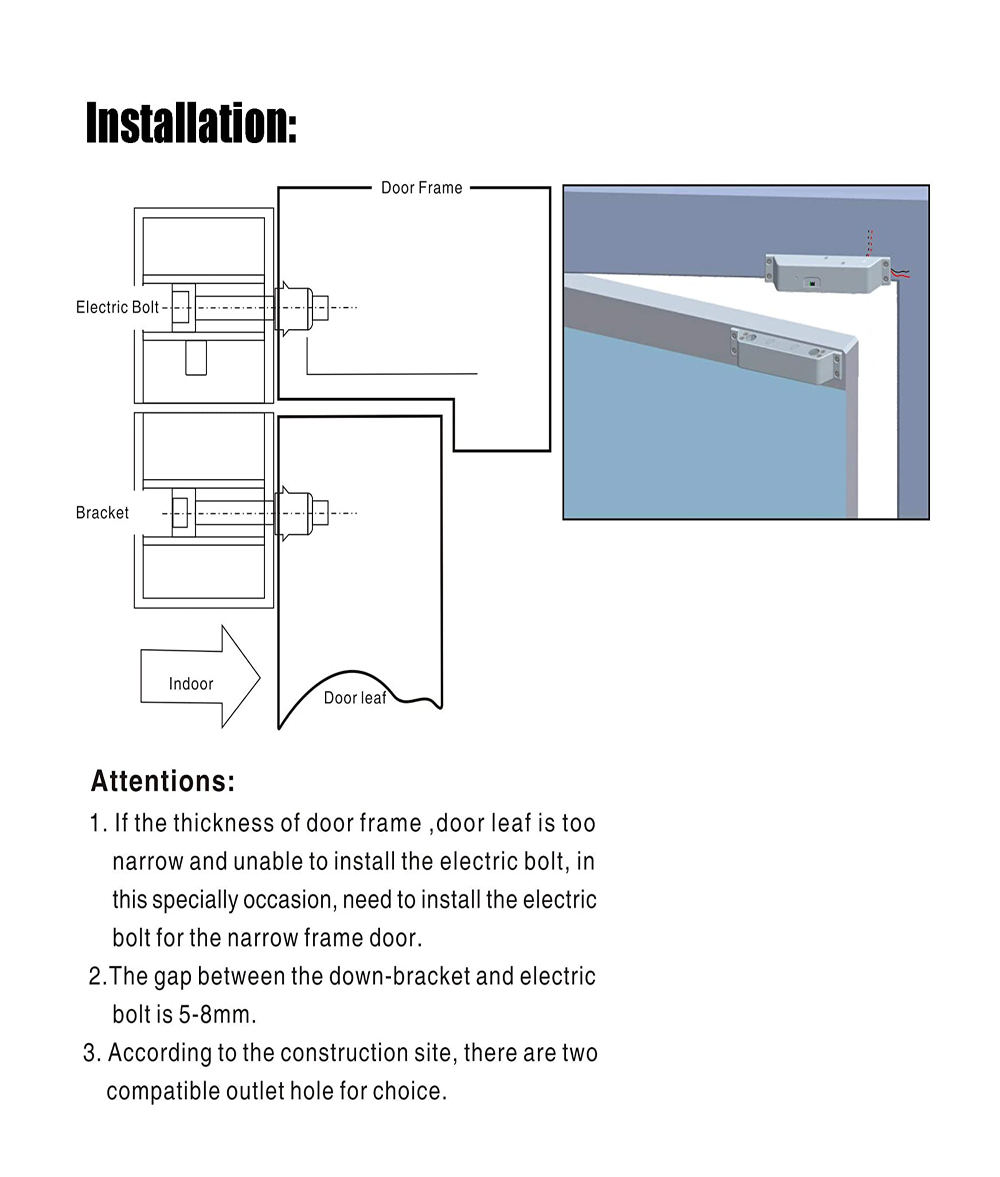

  • Installation: Unfold install (surface mounted)
  •
Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc
  •
Surface scrub treatment, durable and wear-resistant
  •
Lock body use hexagon screw, fixed panel, anti-theft and more security
  •
Coil type: Continuous working
  •
Locking mode: Magnetic induction
  • Auto-relock if no Action within 5 secs

Specifications:

UT YB 500INLED 3

  •

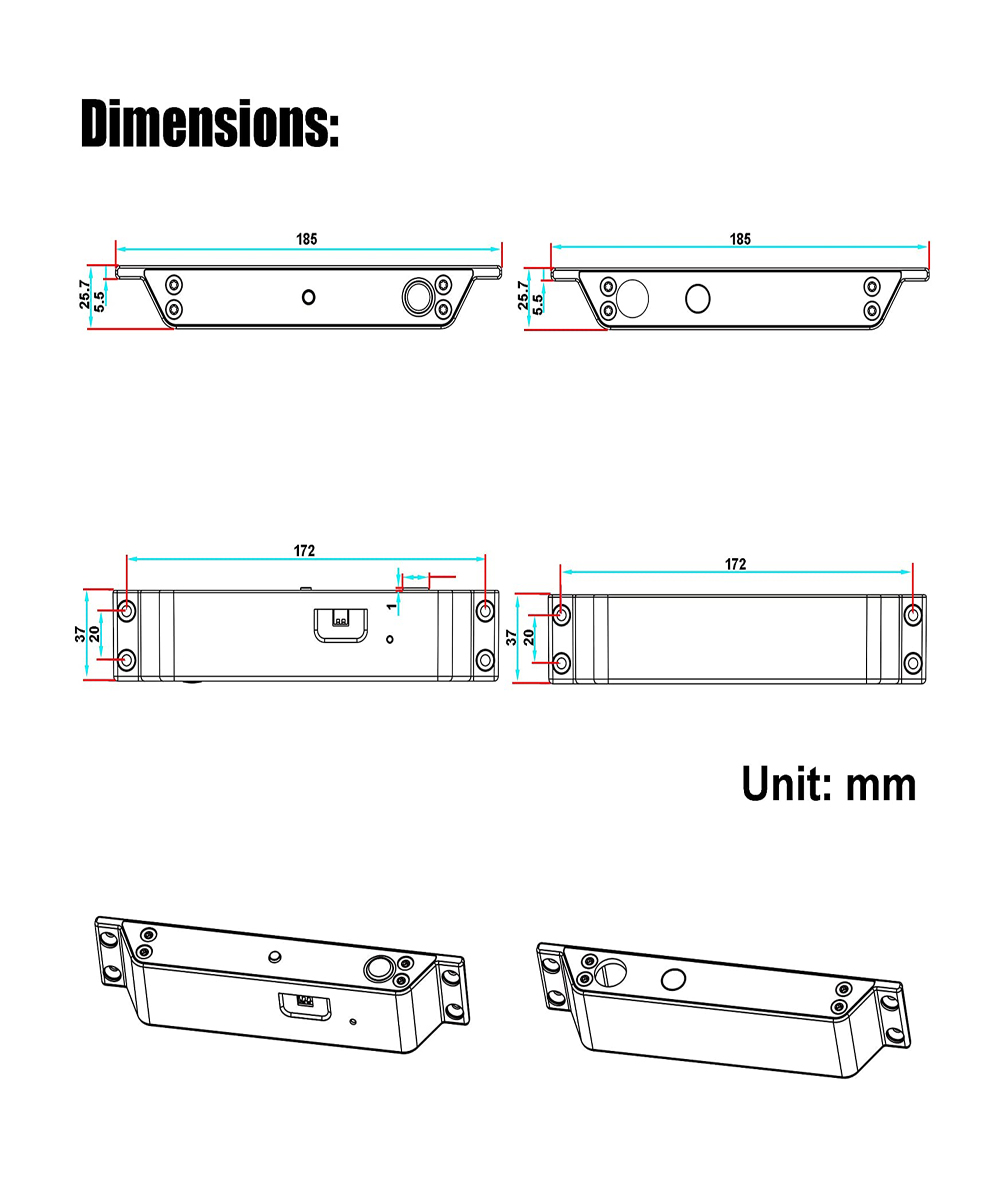

Dimensions: 185x37x25.7mm
  •
Bolt: 16(length)*12.7(diameter)(mm)
  •
Working Voltage: 12VDC
  •
Start Current: 960mA
  • Standby Current: 180mA
  • Time Delay: 0/3/6/9sec
  •
Solid Bolt: Polishing housing, 1000Kg Holding Force
  •
Signal Output: Door status Output,NO/COM
  • Surface Temp: Low Temperature
  • Induction Distance: 8mm
  • LED: Light on indicates locked, light off indicates unlocked
  • Special Designed: Tested to 500000 operations
  • Face place material: Stainless Steel

Package:

  •
1 x Electri bolt lock
  •
1 x Bag of installation kit
  •
1 x Manual (English)
